High 85C 85RH Temperature Humidity Test Chamber

High 85C 85RH Temperature Humidity Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS
Model Number: TH-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, paypal,MoneyGram,Western Union,
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Low Type: Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ Humidity Range: 10% - 98% RH
Temperature Range: -20℃ ~+150 ℃ Exterior Material: A3 Steel Plate
Internal Dimension: Customizable Heating Rate: 3 ℃ / Min
High Light:

85RH Temperature Humidity Test Chamber

,

85C Temperature Humidity Test Chamber

,

uv aging test chamber

Product Description

Description of Temperature Humidity Aging Chamber

Temperature environmental simulation chamber is suitable for complex temperature profiles in the range of -40 °C or -70 °C to 180 °C.



Temperature change environmental simulation chamber only make material testing in this temperature range possible, but can also regulate humidity in the range of 10 % to 98 % RH



Main Technical Parameter of Temperature Humidity Aging Chamber



Name

High 85℃ 85RH Temperature Humidity Aging Chamber

Model

TH-1500

Internal Dimension (mm)

1500*1500*1000

Overall Dimension (mm)

1780*1780*1200

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V



Design Detail of Temperature Humidity Aging Chamber

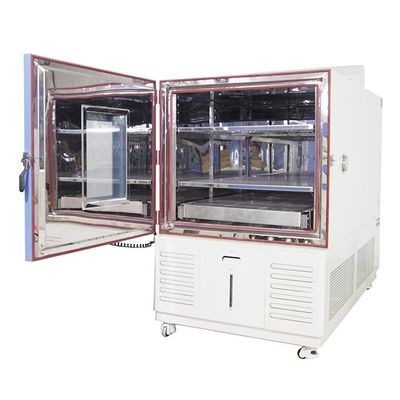

High 85C 85RH Temperature Humidity Test Chamber 0

Workroom

The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors

Controller System

The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment

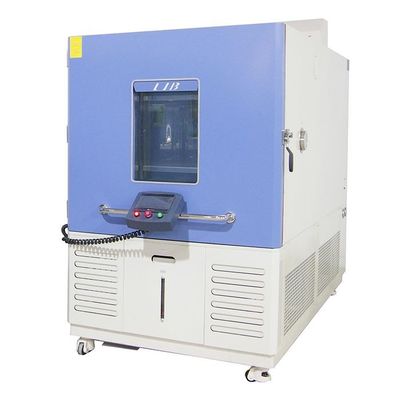

High 85C 85RH Temperature Humidity Test Chamber 1

Automatic water inlet system

Ensure continuous water in the water tank and ensure the normal operation of the studio

Test Hole
The standard customized hole diameter is 50 mm, and the diameter and number of test holes can be customized according to actual test requirements



Benefits of Temperature Humidity Aging Chamber

Homogeneous climate conditions

Automatic water and wastewater management

Pressure humidification with fast response times

Comprehensive programming and data acquisition

Thermal environmental simulation chamber equip large heated viewing window



Important Characteristics of Temperature Humidity Aging Chamber

Temperature range: -70 °C to +180 °C

Humidity range: 10 % to 98 % RH

Integrated water-storage tank,

2 stainless steel rack

Intuitive touchscreen controller with time-segment and real-time programming

Internal data logger, measured values can be read out in open format via USB

Programmable condensation protection for test material

Heated viewing window with LED interior lighting

Humidity regulation with capacitative humidity sensor and vapor humidification



Other Products



Walk In Environmental Chamber

Benchtop Test Chamber

Xenon Test Chamber

Salt Spray Corrosion Test Chamber

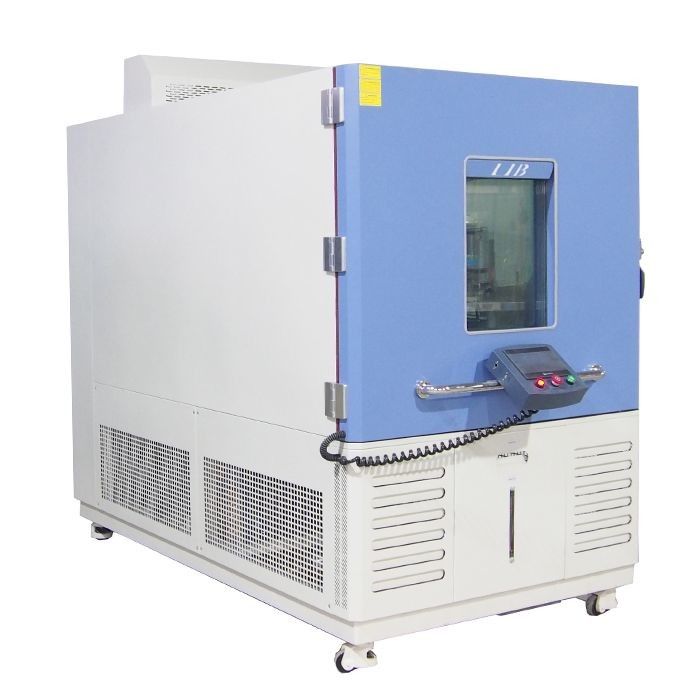

High 85C 85RH Temperature Humidity Test Chamber 2
