Relative Humidity 85C Environmental Simulation Chamber

Relative Humidity 85C Environmental Simulation Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS
Model Number: TH-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, paypal,MoneyGram,Western Union,
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Low Type: Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ Humidity Range: 10% - 98% RH
Temperature Range: -20℃ ~+150 ℃ Exterior Material: A3 Steel Plate
Internal Dimension: Customizable Power: Electronic
High Light:

85C Environmental Simulation Chamber

,

10%rh Environmental Simulation Chamber

,

85C benchtop humidity chamber

Product Description

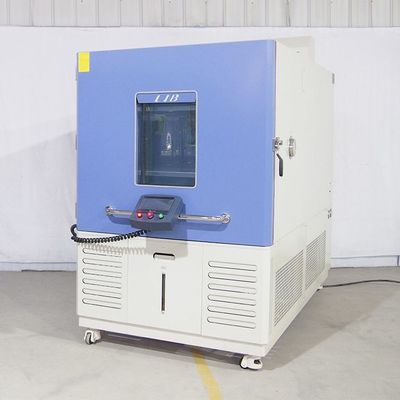

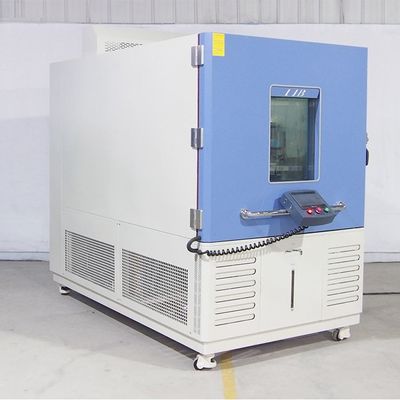

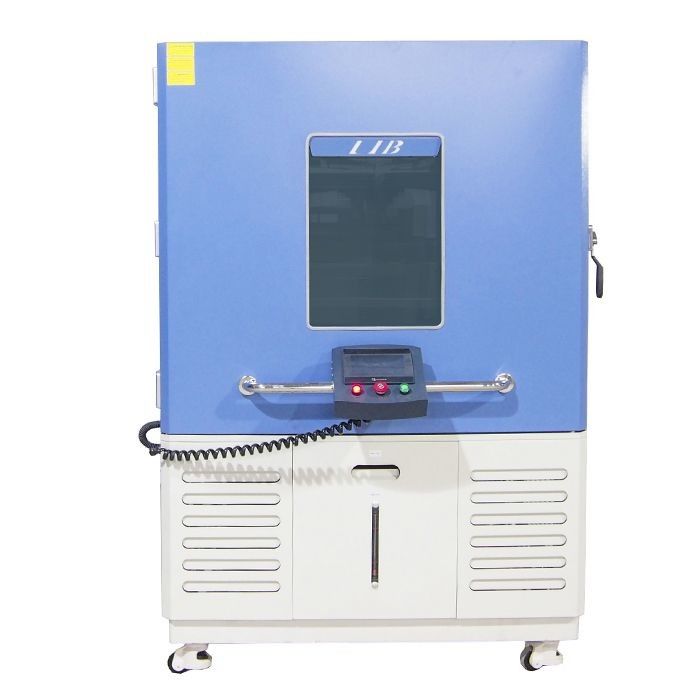

Relative Humidity 85C Environmental Simulation Chamber

Description of Environmental Simulation Chamber

Temperature humidity aging Chamber are designed for testing ,treating and storage of product and material where controlling of climate is necessary. Hot and Cold chambers find applications in Pharmaceutical, Chemical, Automobile, Biotechnology, Telecommunication, Electronics, Defense Medical Equipment, Universities, Military Applications, Consumer Goods.



Main Technical Parameter of Environmental Simulation Chamber

Name

85℃ Relative Humidity Environmental Simulation Chamber

Model

TH-1500

Internal Dimension (mm)

1500*1500*1000

Overall Dimension (mm)

1780*1780*1200

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V



Design Detail of Environmental Simulation Chamber

Relative Humidity 85C Environmental Simulation Chamber 0

Workroom

The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors

Controller System

The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment

Relative Humidity 85C Environmental Simulation Chamber 1

Automatic water inlet system

Ensure continuous water in the water tank and ensure the normal operation of the studio



Test Hole
The standard customized hole diameter is 50 mm, and the diameter and number of test holes can be customized according to actual test requirements



Features of Environmental Simulation Chamber

Rapid air circulation

Durability

Longer service life

Heavy insulation

Motorized forced air circulation



Application Range of Environmental Simulation Chamber

Temperature humidity aging test chamber are widely used in scientific research institutions, quality inspection institutions, colleges and universities, rubber, auto parts, electronic components, digital products, household appliances, plastics, metals, wires and cables, shoes, leather, textile, packaging, building materials, chemical industry, aviation and other industries to use cold and heat shock test boxes for qulity control, feed inspection, product test and testing.



Packing and Delivery

1.Inner first layer with foam package.

2.Inner first layer with film package.

3.Fixed well testing machine.

4.The final use standard export wooden case package.

5.Support air, sea, rail, express and other modes of transportation



Other Products



Walk In Environmental Chamber

Benchtop Test Chamber

Xenon Test Chamber

Salt Spray Corrosion Test Chamber

Relative Humidity 85C Environmental Simulation Chamber 2
