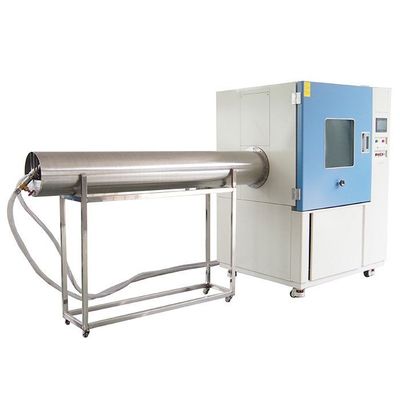

IEC60529 12.5L/Min IP65 Water Testing Machine

IEC60529 12.5L/Min IP65 Water Testing Machine

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: IEC60529,CE,RoHS,
Model Number: R56-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Nozzle Internal Diameter: 6.3mm (12.5mm For IPX6 Nozzle Diameter) Water Flow Rate: 12.5L/min ±5% (100L/min ±5% For IPX6 Water Flow Rate )
Usage: Universal Testing Machine,Auto Testing Machine,Textile Testing Instrument,Rain Water Spray Test Chamber,Lab And Medical Test Warranty: 3 Years
Quality: High,guarantee Name: IP65 Water Testing Machine
High Light:

12.5L/Min IP65 Water Testing Machine

,

IEC60529 IP65 Water Testing Machine

,

12.5L/Min IP65 rain test chamber

Product Description

IEC60529 12.5L/Min IP65 Water Testing Machine

Description of IP65 Water Testing Machine
IP65 testing machine is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motarcycles and their parts and components. After the test through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

IP65 Ratings of IP65 Water Testing Machine
IP65 Enclosure - IP rated as "dust tight" and protected against water projected from a nozzle.
Test machine:
Dust ip65 testing machine
Water ip65 testing equipment

Main Technical Parameter of IP65 Water Testing Machine

ItemIEC60529 12.5L/min IP65 Water Testing Machine
Workroom dimension (mm)800*800*800 D*W*H1000*1000*1000 D*W*H
External dimension (mm)950*3150*1800 D*W*H1250*3350*1950 D*W*H
Diameter of turntable (mm)400600
Water tank size450*250*450 D*W*H
Nozzle Internal Diameter6.3mm (12.5mm for IPX6 nozzle diameter)
Water flow rate12.5L/min ±5% (100L/min ±5% for IPX6 water flow rate )
StandardIEC60529
Nominal power3500W
Power supply380V 50HZ
DescriptionWater projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. And water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.
Test method

Core of the substantial stream at 2.5 m distance from nozzle is circle of Approximately 40 mm(120mm).
Test duration per square meter of enclosure surface area to be sprayed is 1min.
Minimum test duration is at least for 3 min.
Distance from spray nozzle to enclosure surface is 2.5~3m.


Details of IP65 Water Testing Machine

IEC60529 12.5L/Min IP65 Water Testing Machine 0

Workroom
Material is 304 stainless steel, rust-proof, high temperature and corrosion resistance;

Spray System
Length of external water pipe 2.8m,water is sprayed from the nozzle, equipped with IP5X and IP6X nozzles

IEC60529 12.5L/Min IP65 Water Testing Machine 1

Controller
Programmable controller, can choose multilingual languages, support data output, PC link , App,USB


Turntable
The turntable is made of 304 stainless steel, the speed and angle can be adjusted
Sample should be firmly fixed on the turntable.


Features of IP65 Water Testing Machine
1. Water ip65 testing machine is applied for workshops,labs.,etc,to proceed with waterproof test of IPX5 IPX6.
2. Perfect desians,constitute test chamber and water inlet pipe,cycling use of water,energy conservation and environment protection,save the cost of construction test room.
3. Buil-in storage tank, water level float valve automatically controls water and Low-water alarm device,to prevent water pump to be broken since lack of water
4. Controller:Programmable controller
5. Spray gun(Airbush) can swing up and down,and the rotary table rotate, it can meet full spray on samples.
6. IPX5/IPX6 spray flow is adjusted by flow meter, manual adjustment.
7. Inner installment have sample power socket (IP66 waterproof grade) , sample power on/off time can controlled by program
8. Inner chamber installed waterproof LED light, convenience customers to observe the status of testing

Material Description
1. Rain ip65 testing machine material: high quality stainless steel plate, surface spray paint, attractive and durable.
2. ip65 waterproof testing chamber-inner box and turntable: manufacture by SUS304#, insure rustless for long time using.
3. Control system: use colours touch screen

IEC60529 12.5L/Min IP65 Water Testing Machine 2
