1200 Liter ISO 20653 85 ℃ IPX9K Test Equipment Water Jet Battery

1200 Liter ISO 20653 85 ℃ IPX9K Test Equipment Water Jet Battery

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: RoHS,CE,IEC60529
Model Number: R9K-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Export Standard Wooden Box
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Application: Battery Water Spray Angle: 0°,30°,60°,90°
Water Flow Rate: 14L-16L/min Spray Range: 30° ± 5°(Single Hole)
Warranty: 3 Years;life-long Maintenance, Water Spray Temperature: Ambient ~ 88℃ (Adjustable)
High Light:

ISO 20653 IPX9K Test Equipment

,

1200 Liter IPX9K Test Equipment

,

85c water spray test equipment

Product Description

Description


ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment,Natural water (rain water, sea water, river water, etc.) damages products and materials, causing incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength decrease, swelling, mold, etc., especially electrical products are easy to cause fires due to short circuits caused by rain. Therefore, it is an indispensable key procedure to carry out the shell protection water test for the car battery.



Technical Specification




Model

R9K-1200
Name ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment

Internal dimensions (mm)

1000*1200*1000 D*W*H

Overall dimensions (mm)

1250* 1700* 2050 D*W*H

Water Spray Temperature

ambient ~ 88℃ (Adjustable)

Water Spray Angle

0°,30°,60°,90°

Spray Nozzle

Four, 30 seconds each position

Spray Range

30° ± 5°(Single hole); Space 100-150mm

Distance from water spraying to specimens

10~15cm

Water Pressure

8000-10000 Kpa (adjustabl)

Water Flow Rate

14L-16L/min

Testing Platform Speed

5 ±1 r.p.m

Test Platform height

200-450mm, adjustable

Test Platform diameters

600mm

Load

≤100kg

Controller

Programmable color LCD touch screen controller



PC Link with software, RS-232 interface

Pressure meter Alarm function

Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class

Heater

Nichrome heater

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Power Supply

380V 50HZ, Three-phase five-wire

Operating environment

Grading, no corrosive gas, avoid direct sunlight ; Temperature: +5~+35 C; Humidity: 45~85%RH

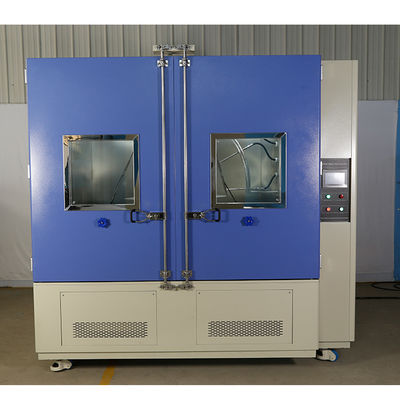

1200 Liter ISO 20653 85 ℃ IPX9K Test Equipment Water Jet Battery 0

Battery temperature IPX9K mahine designed for waterproof test for auto parts,electrical and electronics,simulation natural environment and human factor.We have different models for different standard worldwide.



ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment



IPX9K Standard


ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment

1. ISO16750-1-2006 Environmental conditions and tests for road vehicles, electrical and electronic equipment (general regulations);

2. ISO20653 road vehicles-protection class (IP code)-protection of electrical equipment against foreign objects, water and contact;

3. IEC60529 electrical enclosure protection classification (IP) code;



Standard Parameter


ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment

1. Number of ipx9k nozzles: 4;

2. ipx9k nozzle angle: 0°, 30°, 60°, 90° (vertical direction);

3. ipx9k nozzle distance: 100-200mm (can be adjusted manually);

4. The diameter of the ipx9k sample turntable: 400mm;

5. Manual adjustment of ipx9k turntable lifting method;

6. The adjustment range of the ipx9k turntable: 250-450mm (the distance between the table and the bottom);

7. Ipx9k water spray flow rate: 14~16L/min;

8. Ipx9k water spray temperature. Normal temperature: (25℃), 80±5℃ (the deviation temperature can be negotiated)

9. Water spray pressure of ipx9k: 8000~10000 Kpa;



1200 Liter ISO 20653 85 ℃ IPX9K Test Equipment Water Jet Battery 1
