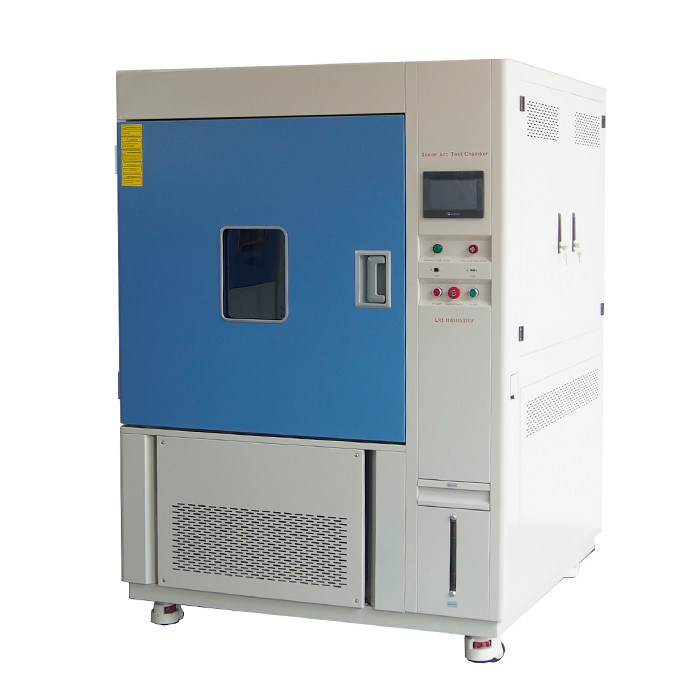

ISO4892-2 43W/M2 Arc Lamp Xenon Test Chamber Environmental Cable

ISO4892-2 43W/M2 Arc Lamp Xenon Test Chamber Environmental Cable

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHs,ISO9001
Model Number: XL-S-750C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 120 sets / quarter
Get Best Price Contact Now

Detail Information

Application: Cable Climate Testing Chamber Temperature Range: -40~ 100 ℃ ±2℃
Irradiation Source: 4500w Water-cooled Xenon Arc Lamp Irradiance Range: 150W/㎡
Bandwidth Measurement: 300~400nm Name: Cable Xenon Arc Lamp Test Chamber
High Light:

ISO4892-2 Xenon Test Chamber

,

43W/M2 Xenon Test Chamber

,

43W/M2 xenon arc test chamber

Product Description

ISO4892-2 43W/M2 Arc Lamp Xenon Test Chamber Environmental Cable

Description
LIB INDUSTRY has Over 53+ different models of xenon euquiment, Cable Low temperature xenon lamp test chamber can provide the corresponding environmental simulation and accelerated test for cable and wires industry, product development and quality control, for the selection of new materials, to improve the durability of existing materials or to assess changes in material composition.

 Technical Parameters

Name

ISO4892-2 43W/M2 Environmental Cable Xenon Arc Lamp Test Chamber

Model

XL-750C

Internal dimensions D*W*H

950*950*850 mm

Overall dimensions D*W*H

1300*1420*1800 mm

Specimen Capacity

42pcs

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter

Irradiance Range

150W/㎡

Bandwidth Measurement

300~400nm

Chamber Temperature Range

-40~ 100 ℃ ±2℃

Black Panel Temperature

BPT 35 ~85℃±2°C

Relative Humidity Range

50~98% R.H±5% RH

Water Spray cycle

1~9999H59M, adjustable

Controller

programmable color display touch screen controller, PC Link, R-232 interface

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Power Supply

AC380V 50HZ



Cable Xenon Aging Test Chamber Specially Designed for Cable Testing

1. Temperature range:-40~ 100 ℃ ±2℃
2. Humidity range:30% ~ 98% RH
3.UV ultraviolet test, sunlight test
4. Hot and cold temperature cycle


Cable Xenon Arc Lamp Test Chamber meets the DSHD 605 S2 2008 test cable standard
ISO4892-2 43W/M2 Arc Lamp Xenon Test Chamber Environmental Cable 0


More Details

ISO4892-2 43W/M2 Arc Lamp Xenon Test Chamber Environmental Cable 1ISO4892-2 43W/M2 Arc Lamp Xenon Test Chamber Environmental Cable 2
PLC touch screen operation system, user can freely set and store test curve and data1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter



Test Procedure
One cycle/5 days (Cable Xenon Arc Lamp Test Chamber)
1. The first day: exposure to light, relative humidity≥85%RH, temperature 25±2 ℃ with spray (spray mineral water, each cycle lasts 3 minutes)

2.The second day: temperature 25±2 ℃ with high and low temperature thermal cycle, The hot and cold temperature conversion should be completed in the shortest time, and the cycle time of the two temperature shocks should be about 1-2 hours.

3.Next 2 day: exposure to light, temperature 70±2 ℃, humidity <30%RH

4.The fifth day: exposure to 0.067% mol/L SO2 solution, temperature 40±3 ℃, the door can be opened 16 hours after the test
