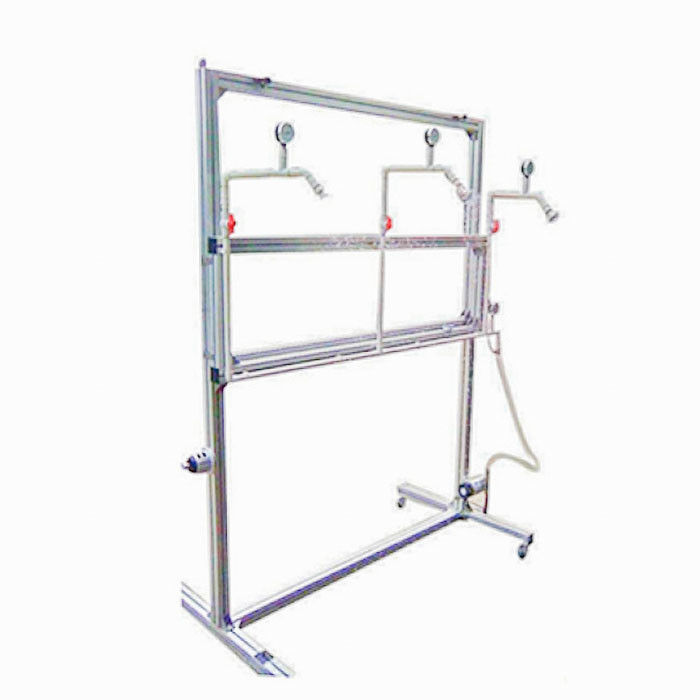

UL 50E Rain Spray Test Chamber Machine 4 spray heads
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | Rohs,CE |
| Model Number: | R-UL020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Standard: | UL 50E Type 3R | Application: | Enclosures For Electrical |
|---|---|---|---|
| Water Supply System: | Automatic Water Supply | Number Of Spray Head: | 4 Spray Heads |
| Spray Device: | Height Adjustment | Material: | SUS304 Stainless Steel |
| High Light: | UL 50E Rain Spray Test Chamber,4 Heads Rain Spray Test Chamber,UL 50E water spray test equipment |
||
Product Description
UL 50E Rain Spray Test Machine
Description

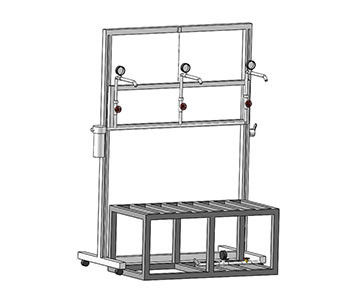

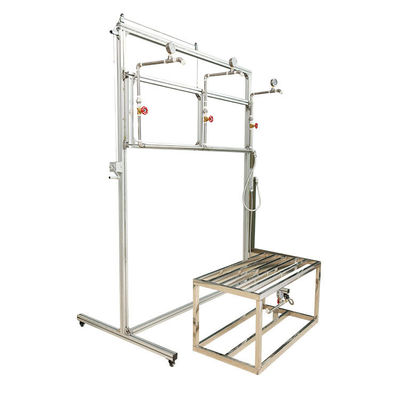

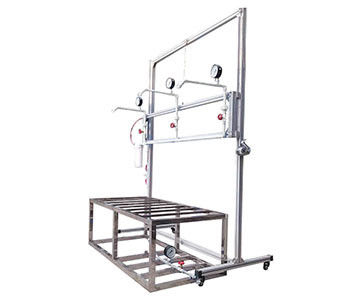

UL 50E rain spray test machine for UL rain test and 45 ° water spray test is divided into upper, lower and right three parts.
The height of the three dripping heads can be adjusted up and down freely. Select high quality materials, use advanced technology processing and forming. The inner and outer shell are made of high quality SUS 304 stainless steel plate.
The sample frame and other accessories design is reasonable and durable.
Technical Specification
 |
UL 50E Rain Spray Test Machine |
| Model | R-UL020 |
| Overall Dimensions (mm) | 800*1500*2200mm |
| Height adjustment range of spray device | 1000-2000mm |
| Number of spray head | 4 spray heads(There are 3 spray heads on the top and 1 spray nozzle on the bottom) |
| nozzle spacing | 710mm |
| Spraying Hole Diameter |
Φ5mm
|
| Water pressure | 34.5Kpa |
| Sample platform size | 500X1500X500 |
| Load of sample platform load | 100 Kgs |
| Water Pressure Control | Flow meter |
| Water Supply System | Automatic water supply, Water purification system |
| Material | SUS304 stainless steel |
| Standard | UL 50E Type 3R |
The Application
UL water test machine use for outdoor lighting, outdoor lamps, automobile lamps, household appliances, electricians, electrical cabinets, power supplies, communication products and signal devices, etc.
The spray device for UL rain test apparatus is reasonable in design, precise in manufacture and simple in operation. To avoid the previous similar rain test equipment manually by feeling the inaccuracy and cumbersome adjustment.
Advantage
◆UL rain test apparatus for UL test choose the electromagnetic flowmeter, It is composed of electromagnetic flow sensor and electromagnetic flow converter. Based on Faraday electromagnetic influenza should work on principle, It can be used to measure the flow of test water, Meanwhile, It will realize the flow of control adjustment display and integration as well.
◆Bracket base with universal brake casters, easy to move and fix
◆Equipment nozzle distribution strictly according to the standard design
◆Injection angle of rain test apparatus for UL rain test: 45 to the horizontal
◆The intersection point of nozzle water column is adjustable from 1000mm to 2000mm from the ground
◆Each sprinkler head is equipped with pressure gauge, measuring range :0~ 0.25mpa
◆water spray test machine adopts stainless steel nozzle, which fully meets UL standard
