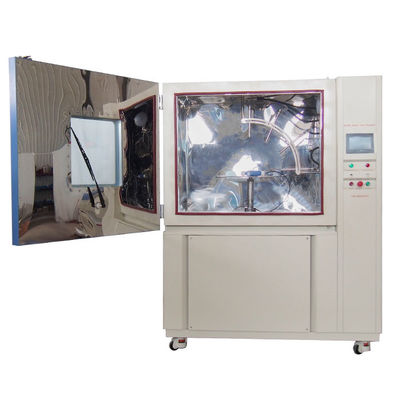

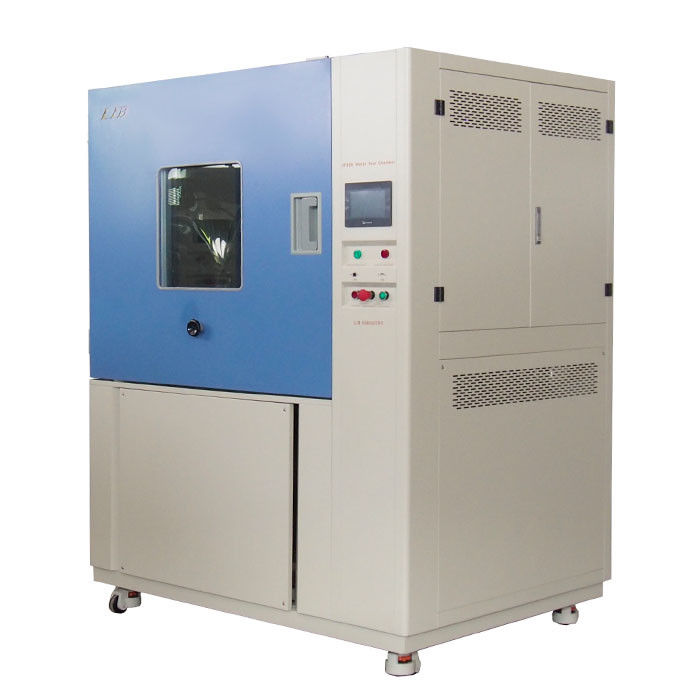

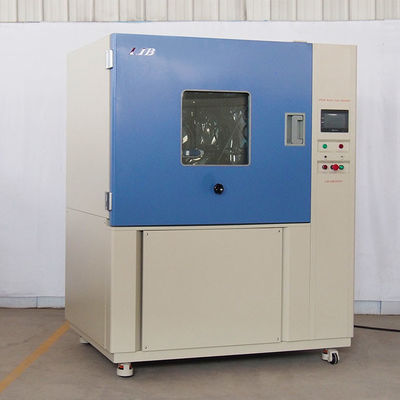

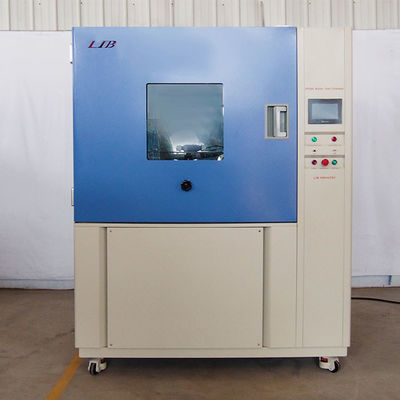

High Pressure Water Spray Test Chamber IPX9 Test Equipment 30° ± 5°

High Pressure Water Spray Test Chamber IPX9 Test Equipment 30° ± 5°

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: RoHS,CE,IEC60529
Model Number: R9K-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Export Standard Wooden Box
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Application: Battery,Outdoor Lighting Water Spray Angle: 0°,30°,60°,90°
Water Flow Rate: 14L-16L/min Spray Range: 30° ± 5°(Single Hole)
Warranty: 3 Years;life-long Maintenance, Water Spray Temperature: Ambient ~ 88℃ (Adjustable)
High Light:

IPX9 Water Spray Test Chamber


High Pressure IPX9 Test Equipment


30C IPX9 Test Equipment

Product Description

IPX9 Test Equipment



IPX9 test equipment is consists of heating water tank, high pressure plunger pump, high pressure solenoid valve, fan nozzle, turntable and so on.


Heat the water in the water storage tank to required temperature, secondly, mount the sample on the turntable, adjust the position of the nozzle, thirdly, close the protective door of the test equipment, set all test required parameters, finally, start the test.


IPX9k waterproof test equipment,The four nozzles spray for 30 seconds in order during the test.


Technical Specification



Name IPX9 Test Equipment

Internal dimensions (mm)

1000*1200*1000 D*W*H

Overall dimensions (mm)

1250* 1700* 2050 D*W*H

Water Spray Temperature

ambient ~ 88℃ (Adjustable)

Water Spray Angle


Spray Nozzle

Four, 30 seconds each position

Spray Range

30° ± 5°(Single hole); Space 100-150mm

Distance from water spraying to specimens


Water Pressure

8000-10000 Kpa (adjustabl)

Water Flow Rate


Testing Platform Speed

5 ±1 r.p.m

Test Platform height

200-450mm, adjustable

Test Platform diameters





Programmable color LCD touch screen controller


PC Link with software, RS-232 interface

Pressure meter Alarm function

Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class


Nichrome heater

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Power Supply

380V 50HZ, Three-phase five-wire

Operating environment

Grading, no corrosive gas, avoid direct sunlight ; Temperature: +5~+35 C; Humidity: 45~85%RH




High Pressure Water Spray Test Chamber IPX9 Test Equipment 30° ± 5° 0 High Pressure Water Spray Test Chamber IPX9 Test Equipment 30° ± 5° 1
90 ° Angle with 4 pieces circular sprayer, Corresponding with standards.

Automatic water intake

We are equipped with automatic water intake and water filtration system

High Pressure Water Spray Test Chamber IPX9 Test Equipment 30° ± 5° 2


Spaying flow,pressure ano temperature are programmable in Controller.

1000L IPX9K test device equipped with adjustable, lifting and moving casters



●IEC 60529 Degrees of protection provided by enclosures (IP Code) IPX9.


●IPX9k iso20653 equipment

ISO20653 Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access figure 7, 8, 9 and table 7 (9K)


●DIN40050-9 Road vehicles-Degrees of protection (IP code)-Protection against foreign objects, water and access Electrical equipment figure 8and table 8 (9K)



IPX9k standard quipment is used for the testing of IPX9/IPX9K. Mainly used in Outdoor lighting field- Street lighting, landscape lights, LED flood lights, etc., Auto parts field, Outdoor cabinet field-Outdoor cabinet industry such as distribution box, battery box, battery cabinet, etc.
