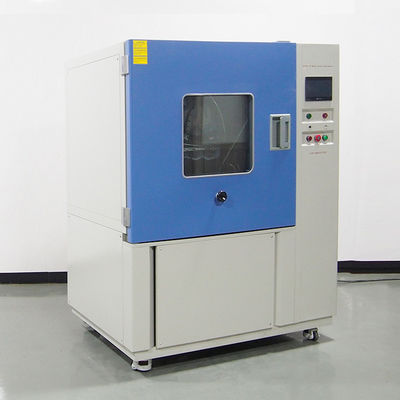

IPX 1 IPX 2 Water Drip Test Chamber LCD Touch Screen Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS, |
| Model Number: | R-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 140 Sets/ Quarter |
|
Detail Information |
|||
| Type: | IPX1 IPX2 Test | Standard: | IEC 60529, ISO20653 |
|---|---|---|---|
| Water System: | Water Circulation System | Interior Material: | SUS304 Stainless Steel |
| Model: | Standards And Customization | Controller: | Programmable Controller |
| High Light: | IPX 2 Water Drip Test Chamber,IPX 1 Water Drip Test Chamber,IPX 1 waterproof test chamber |
||
Product Description
Water Drip Test Chamber
IPX 1 IPX 2 Test Chamber is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2.
Main Parameters
|
Name |
Water Drip Test Chamber |
|
|
Model |
R-800 |
R-1200 |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
|
Interior Volume (L) |
720 |
2740 |
|
Drip tray size (mm) |
600*600 |
900*900 |
|
Spraying Hole Diameter |
φ0.4mm |
|
|
Hole Spacing |
50 mm |
|
|
Water Pressure Control |
Flowmeter |
|
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
|
Standard |
IEC 60529, ISO20653 |
|
Standards Compliant
Rain test chamber meet IEC60529: 2013 Degrees of protection provided by enclosures (IP Code), test for second characterics numerial 3 and 4.
Details
|
|
|
IPX 1 IPX 2 Test Chamber is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX 1 and IPX 2. This device is with the clean water filtration unit which can prevent pinhole from jamming. |

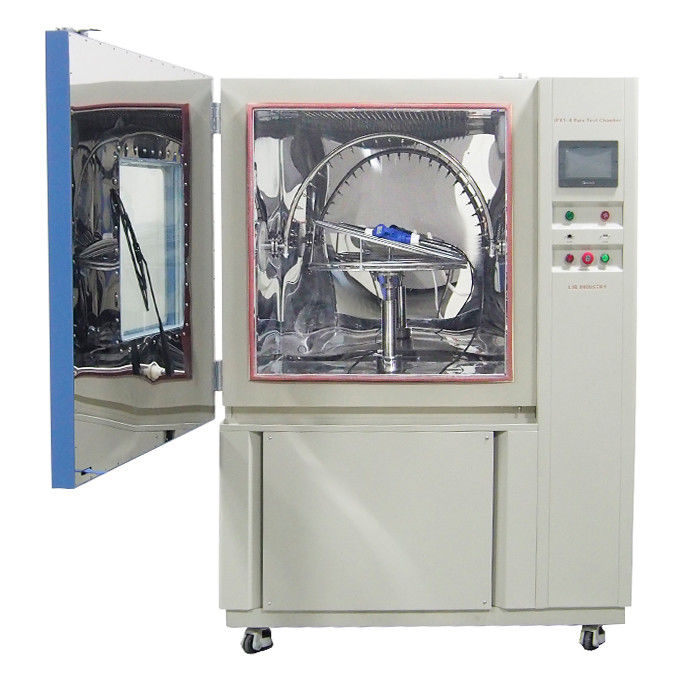

IEC60529 drip test chamber is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX 1 test.
water spray test chamber is also equipped with 15°bevel for supporting sample for the IPX 2 test. |

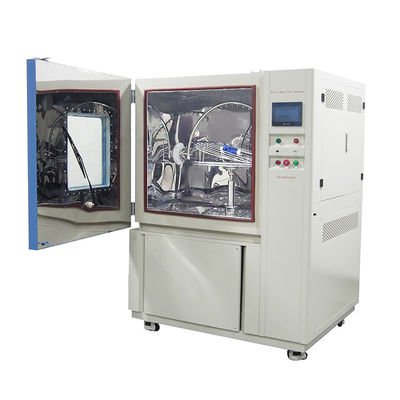

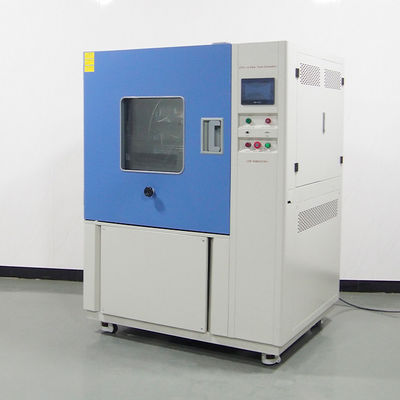

Chamber Structure
1.Tank shell material made of high quality stainless steel, Water drop test chamber liner material stainless steel
2.Large sight glass door for easy observation test cabinets test sample status.
3.Bottom of the chamber can be fixed with high quality 4 castor, user-friendly move.
4.Adjustable speed of the sample stage.
