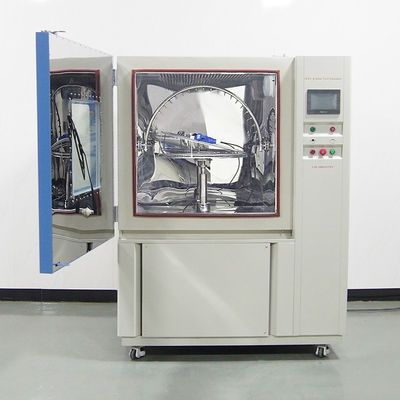

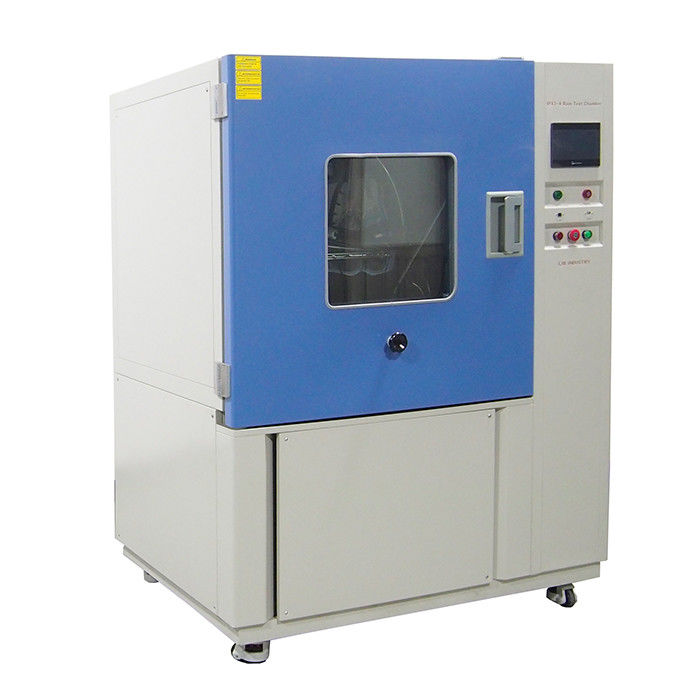

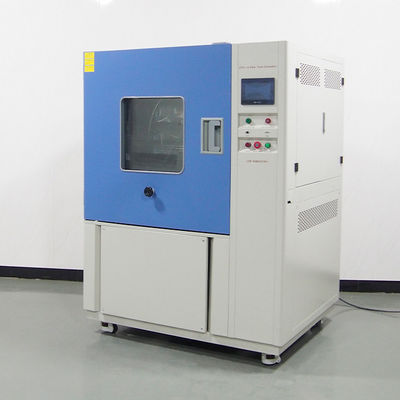

Electric Cabinets IPX3 Water Spray Test Chamber Programmable Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS, |
| Model Number: | R-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 140 Sets/ Quarter |
|
Detail Information |
|||
| Type: | IPX3 Test IPX4Test | Standard: | IEC 60529, ISO20653 |
|---|---|---|---|
| Water System: | Water Circulation System | Interior Material: | SUS304 Stainless Steel |
| Application: | Lamps, Electric Cabinets; | Controller: | Programmable Controller |
| High Light: | IPX3 Water Spray Test Chamber,Programmable Water Spray Test Chamber,IPX3 Water spray test equipment |
||
Product Description
IPX3 Test Chamber
IPX3 test chamber,rain, sea water, river water, damages products and materials. The damage causes unpredictable economic losses every year, mainly includes corrosion, fading, deformation, strength reduction, swelling, mold, etc.
Especially for electrical product that is easily broken into a fire due to a short circuit caused by rain. Therefore, IP code testing for specific products or materials is an essential key procedure.
Main Parameters
|
Name |
IPX3 Test Chamber |
|
|
Model |
R-800 |
R-1200 |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
|
Oscillating Tube Radius |
0 ~ ±180° (Adjustable) |
600mm |
|
Swing Angle of Oscillating Tube |
φ0.4mm |
|
|
Turntable Rotation Speed |
1r/min (Adjustable) |
|
|
Water Pressure Control |
Flowmeter |
|
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
|
Standard |
IEC 60529, ISO20653 |
|
Details
|
|

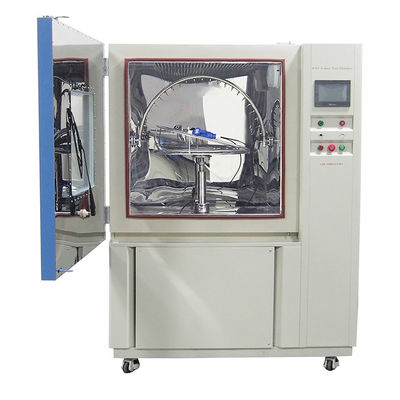

| Oscillating Tube | Turntable |
Feature
1. It is suitable for IPX3 and IPX4 waterproof level test.
IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber
2, Ipx4 test chamber,The shell is made of high-quality steel plates, beautiful and durable.
3. The inner chamber, oscillating tubes, turntable and other wading parts are all made of SUS304 stainless steel to ensure no rust for long time use.
4. Rain drip test chamber oscillating tubes adopts flange joints, which is convenient for installing and changing the oscillating tubes; the nozzle contact position on the oscillating tubes adopts brass cone design, which is convenient for installing the spray nozzle.
5. The water supply pipeline is equipped with a filter, which can filter impurities in the water, so as to prevent nozzle clogging.
6. The turntable uses a stepping motor, the speed can be set on the touch screen, can rotate clockwise or counterclockwise.
