Product Details:

Place of Origin: china
Brand Name: LIB
Certification: IEC60529,CE,RoHS,
Model Number: IPX8 Tester

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-16 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Usage: LABS, Factories, Manufacturers Method Name: IPX8 IEC 60529 Waterproof Tester
Testing Time: 30 Min Standard: IEC60529
Warranty: 3 Years Water System: Automatic Water
High Light:

IEC 60529 Water Spray Test Equipment

,

IPX8 Water Spray Test Equipment

,

IPX8 Waterproof Tester

Product Description


 Description


IPX8 IEC60529 waterproof tester used for the testing of IPX8. Under the device with shell protection grade (IP code) based mainly for electronic and electrical products, outdoor lighting, electric cabinet, communication equipment, diving equipment and other products to simulate the water environment to test the protective performance of IP products. The test result are used to determine whether the requirements are met, so as to provide the design, development, optimization and ex factory inspection of the product.



Main Technical Parameter


Name

Immersion Test IPX8 IEC 60529 Waterproof Tester

Internal dimension

Diameter 600mm *Height 1500mm.

Chamber material

SUS#304, thickness 2.5mm

Water depth

Simulate 50m depth by air compressor

Water pressure

Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree

Timer

0 ~ 99min, 99sec

Sample lift device

Portable stainless steel basket

Water level display

Water pipe with scale

Open mode

pneumatic lift with safety lock.

Protection device

Pressure protection and anti-explosive device, water drain and pressure release device

Safety protection

Power overload protection, short circuit protection, grounding protection, alarm display

Nominal power

3500W

Power Supply

AC380V 50HZ




Configuration

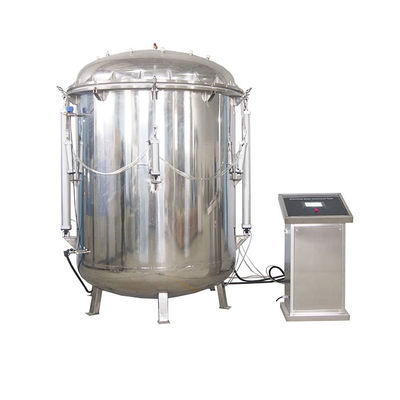

Immersion Test IPX8 IEC 60529 Water Spray Test Equipment Waterproof Tester 0

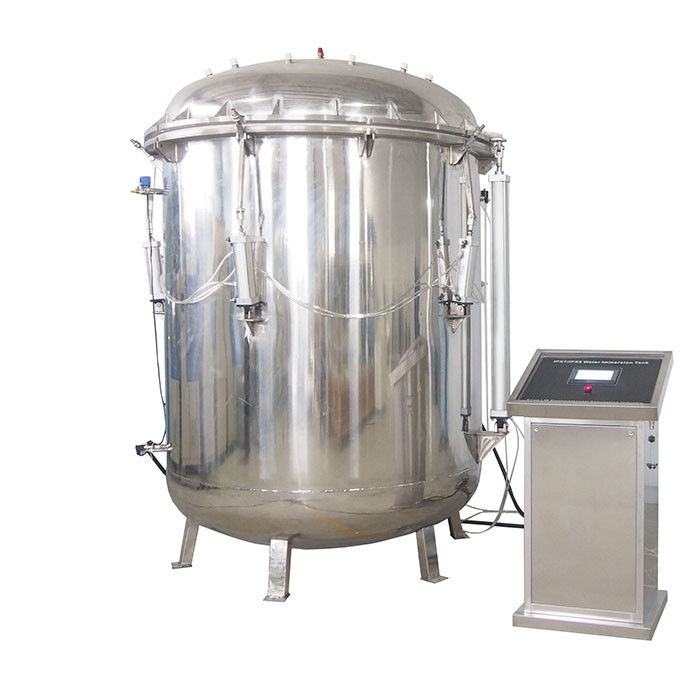

Immersion Test IPX8 IEC 60529 Water Spray Test Equipment Waterproof Tester 1

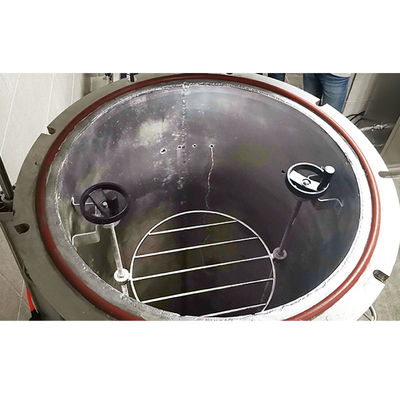

Test Area and specimen holder



Safe Lock

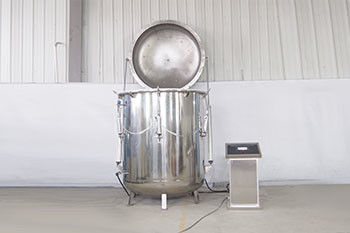

Immersion Test IPX8 IEC 60529 Water Spray Test Equipment Waterproof Tester 2

Immersion Test IPX8 IEC 60529 Water Spray Test Equipment Waterproof Tester 3



Control Panel



Automatic water inlet



Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1.



Features


1. Applicable to the IPX8 waterproof rating test of the product.



2. Ipx7 waterproof tester,The tank body is made of 304 stainless steel material, high-precision overall sub-arc welding, good pressure bearing.



3. The outside is a square structure, welded by stainless steel plate, user-friendly design: 45 ° bevel method, button operation; the lid height is moderate, easy to operate.



5. The top cover of the equipment is fixed with 8 sets of ring screws (distribution auxiliary steel bars).



6. IEC60529 Ingress Protection tester is equipped with a safety valve. After the rated pressure is exceeded, the pressure is automatically released to prevent the operator from operating improperly and the set pressure is too high.

Immersion Test IPX8 IEC 60529 Water Spray Test Equipment Waterproof Tester 4
