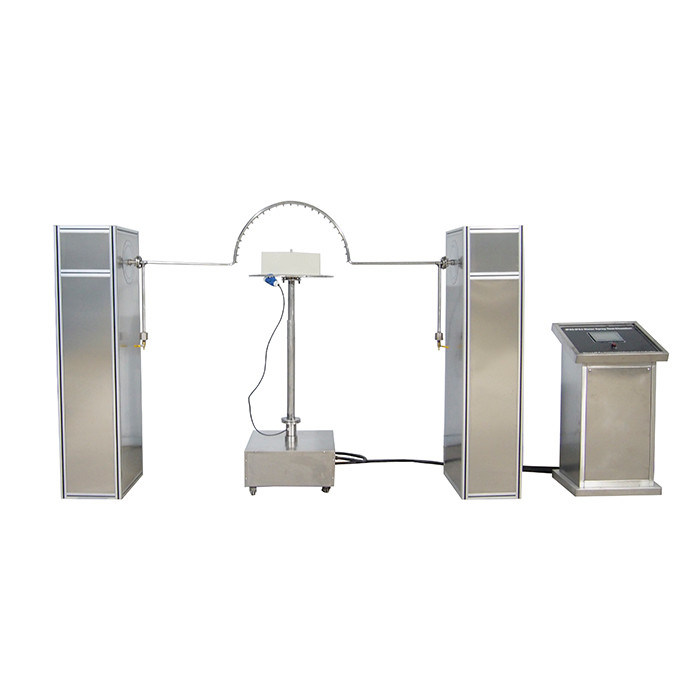

IEC60529 Oscillating Tube Machine For IPX3 X4 Testing

IEC60529 Oscillating Tube Machine For IPX3 X4 Testing

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,
Model Number: R-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 140 Sets/ Quarter
Get Best Price Contact Now

Detail Information

Type: IPX3 Test IPX4Test Standard: IEC 60529, ISO20653
Application: Lamps, Electric Cabinets; Water System: Water Circulation System
Interior Material: SUS304 Stainless Steel Controller: Programmable Controller
High Light:

IEC60529 Oscillating Tube Machine


IPX3 Oscillating Tube Machine


IPX4 Oscillating Tube Machine

Product Description


Water spray tester is applied to test the shell waterproof effect of electronics, automobile and communication, shell and seal in the rain environment can ensure that equipment and components good performance test.


Oscillating tube machine for IP X3X4 testing uses scientific design, makes the equipment can realistic simulation drop of water, water spray, splash water, etc., various kinds of environment.


Main Parameters



Oscillating Tube Machine for IPX3 X4 Testing




Internal Dimensions (mm)



Overall Dimensions (mm)



Oscillating Tube Radius

0 ~ ±180° (Adjustable)


Swing Angle of Oscillating Tube


Turntable Rotation Speed

1r/min (Adjustable)

Water Pressure Control



Programmable color LCD touch screen controller Ethernet connection, PC Link

Build-in Water Tank(mm)


View Window Size(mm)


Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃~+35 ℃ ≤85% RH


IEC 60529, ISO20653



IEC60529 Oscillating Tube Machine For IPX3 X4 Testing 0 IEC60529 Oscillating Tube Machine For IPX3 X4 Testing 1

Standard rain test chamber

No housing water test chamber


LIB INDUSTRY have two types of rain test chambers

Type 1: standard rain test chamber

1. Has a complete shell

2. Suitable for smaller samples

3. Equipped with water circulation, automatic water inlet, water filtration system


Type 2:No housing water test chamber

1. Not limited by the shell

2. Test larger samples

3. The diameter of the oscillating tube can be selected


LIB INDUSTRY can establish an IP laboratory, equipment Paul IPX1-ipx9k and sand dust test chamber according to customer needs,
