Aging Test Humidity Test Chamber High Temperature Thermal Test Chamber

Aging Test Humidity Test Chamber High Temperature Thermal Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS
Model Number: TH-225

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Temperature Thermal Test Chamber Low Type: -20℃/-40℃/-60℃/-70℃/-86℃
Humidity Range: 10% - 98% RH Temperature Range: -20℃ ~+150 ℃
Exterior Material: A3 Steel Plate Controller: PLC,PC Link, R-232 Interface,USB,APP
High Light:

Aging Test Humidity Test Chamber

,

Aging Test Thermal Test Chamber

,

High Temperature Thermal Test Chamber

Product Description

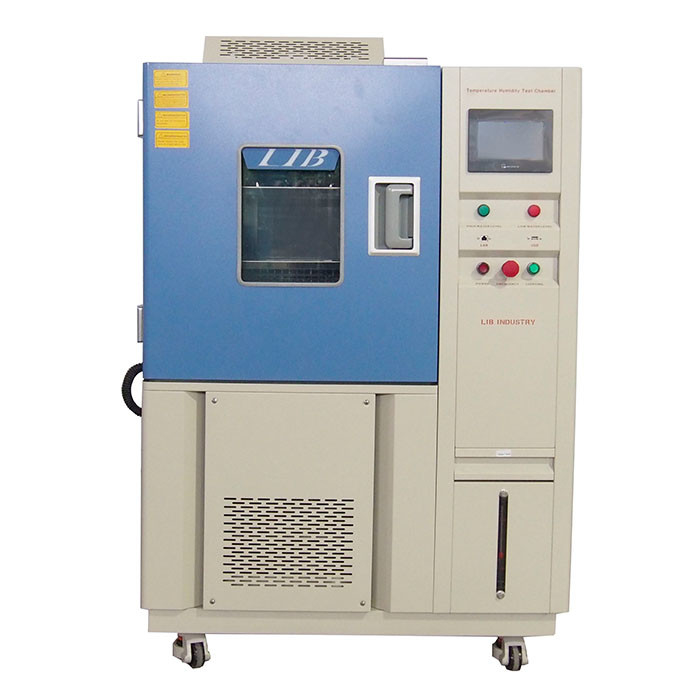

Aging Test High Temperature Thermal Test Chamber



Description


Aging Test High Temperature Thermal Test Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



Main Technical Parameter




Name

 Aging Test High Temperature Thermal Test Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V



Deatil

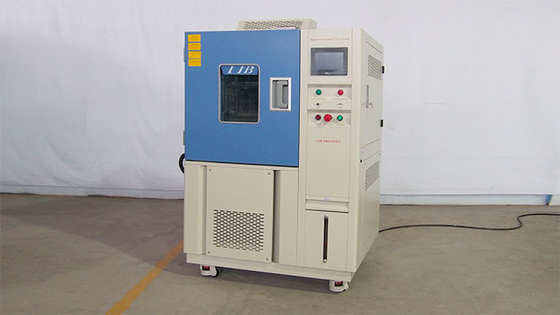

Aging Test Humidity Test Chamber High Temperature Thermal Test Chamber 0

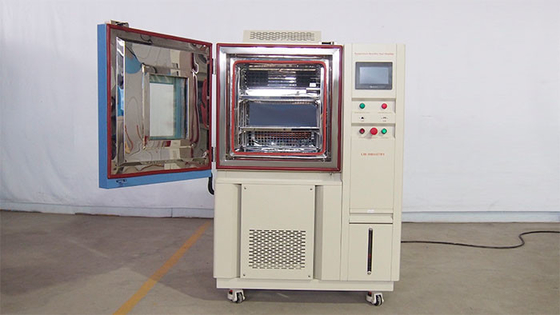

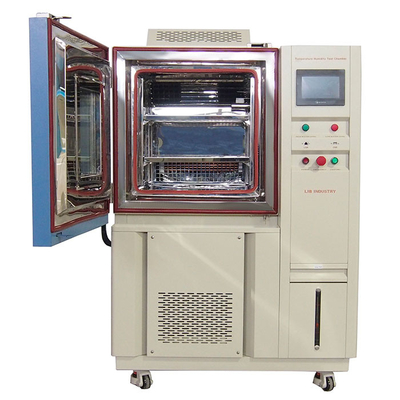

programmable controller Test Area



Option


Aging Test High Temperature Thermal Test Chamber options can be customized to the customer's needs

●sample shelf

●Cable Wire

●Test Hole

●Capacitive Temperature and Humidity Sensor

●Observation

●Window

●Reverse Osmosis Unit

●Controller



CE ROHS Certification


Humidity climate simulation chamber accept and approved by CE, CSA, RoHS, TUV, SGS and ISO17025 calibration.Once test Chambers completed, our engineers will commisioning ,calibrate,check and accept in our factory. After that pack, and arrange delivery.
