High Low Temperature Cycling Chamber Calibrator Laboratory
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | High Low Temperature Cycling Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Humidity Range: | 10% - 98% RH | Temperature Range: | -20℃ ～+150 ℃ |
| Exterior Material: | A3 Steel Plate | Controller: | PLC,PC Link, R-232 Interface,USB,APP |
| High Light: | High Low Temperature Cycling Chamber,Laboratory Temperature Cycling Chamber,Laboratory thermal cycling chamber |
||
Product Description

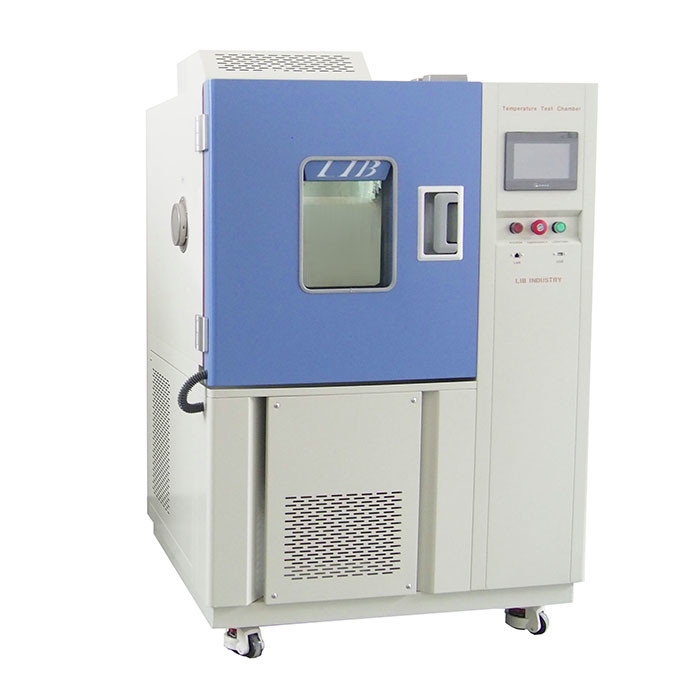

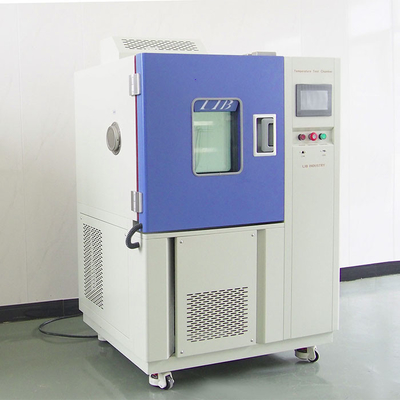

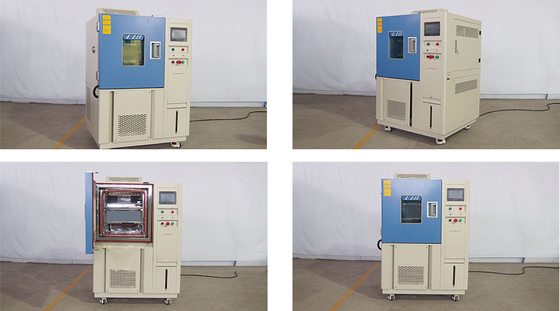

High Low Temperature Cycling Chamber Calibrator Laboratory
Description
High Low Temperature Cycling Chamber is the first point to be considered when choosing a climatic chamber from MENTEK.Standard chambers can reach temperatures as high as 180°C and can cool to temperatures as low as -70°C. For higher or lower ranges than the normal,
High Low Temperature Cycling Chamber which also call environment test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test... Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes,EN 14511.
Main Technical Parameter
Name | High Low Temperature Cycling Chamber Calibrator Laboratory |
Model | TH-225 |
Internal Dimension (mm) | 500*600*750 |
Overall Dimension (mm) | 960*1150*1860 |
Temperature Range (℃) | A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
Humidity Range (R.H) | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity Deviation | ± 2.5% RH |
Heating Rate | 3 ℃ / min |
Cooling Rate | 1 ℃ / min |
Interior Volume | 500 liters |
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
Cooling System | Mechanical compression refrigeration system |
Interior Material | SUS304 stainless steel |
Maximum Noise | 65 dBA |
Power Supply | 380V |
Deatil
 | |

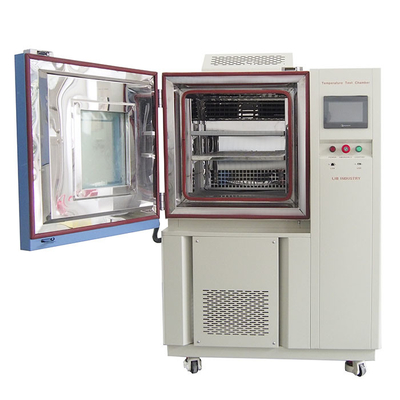

| Test Area | Programmable Controller |
Important Characteristics
●Lowest temperature: -20 /-40/-70°C
●Highest temperature: 180°C
●Humidity range: 10 to 95% RH
●Time Display: 0-99999h
●Chamber size: 100l/225l/500l/1000l
●Touch-screen programmer with Ethernet access
Design Features
Temperature conditioning chamber conforms to ergonomics and safety design
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain
