-70°C Control Temperature Humidity Test Chamber PLC Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Temperature Humidity Test Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Humidity Range: | 10% - 98% RH | Temperature Range: | -20℃ ～+150 ℃ |
| Exterior Material: | A3 Steel Plate | Controller: | PLC,PC Link, R-232 Interface,USB,APP |
| High Light: | -70C Temperature Humidity Test Chamber,PLC Temperature Humidity Test Chamber,-70C Temperature Humidity Chamber |
||
Product Description

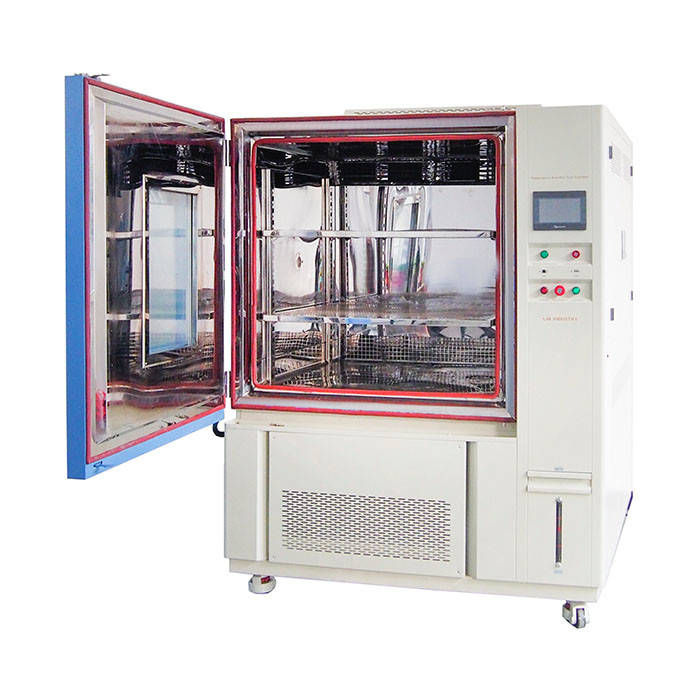

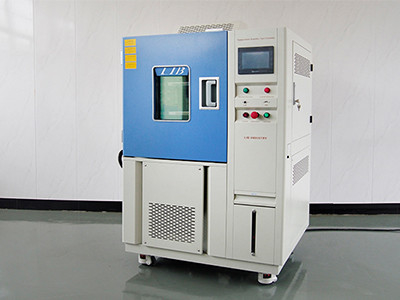

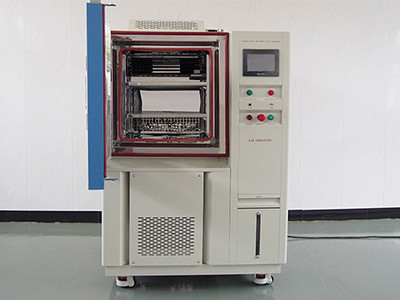

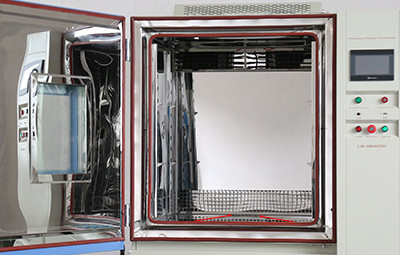

-70°C Control Temperature Humidity Test Chamber
Description
Temperature Humidity Test Chamber come in a range of sizes to fit your particular industry and space needs, from 50L to 1000L The industries that utilize our chambers for environmental testing are wide-ranging as well, from pharma to electronic components, and even to paper and pulp.
Main Technical Parameter
|
Name |
Temperature Humidity Test Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
More Test Equipment
LIB INDUSTRY temperature and humidity test chamber provides a variety of specifications,
please tell us your needs, we will recommend the appropriate equipment for you
 |
|
| 50l & 80L environmental chamber | 225L climatic test chamber |
|
|
| 1000L climatic simulation chamber | Customization controlled climatic chamber |
