A3 Plate PLC Damp Heat Environmental Test Chamber R232 Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Damp Heat Test Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Humidity Range: | 10% - 98% RH | Temperature Range: | -20℃ ～+150 ℃ |
| Exterior Material: | A3 Steel Plate | Controller: | PLC,PC Link, R-232 Interface,USB,APP |
| High Light: | PLC Damp Heat Environmental Test Chamber,A3 Plate Environmental Test Chamber,R232 Interface Environmental Test Chamber |
||
Product Description

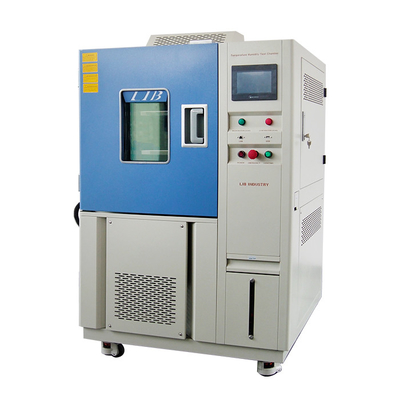

Environmental -40℃ Damp Heat Test Chamber
Description
Environmental -40℃ Damp Heat Test Chamber is mainly used to simulate the harsh high temperature and low temperature that may be encountered during transportation, storage and use of electronic instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc. Or humid and hot environment; or high temperature, low temperature, humid and hot alternating environment,
The damp heat chamber can test the high temperature resistance, cold resistance, damp heat resistance and possible damage life reduction of materials, accessories or equipment.
Main Technical Parameter
|
Name |
Environmental -40℃ Damp Heat Test Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Deatil
 |
|
|

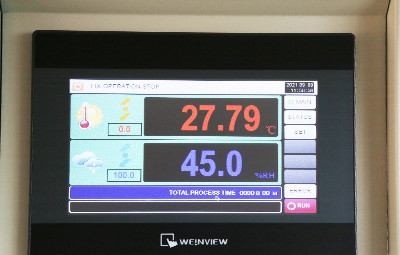

Programmable Controller
|
Water Circulation System |
Advantage
Environmental -40℃ Damp Heat Test Chamber
●Touch screen operation
●Simple operation & stable structure
●Large test space
●high temperature uniformity
●long lasting
●Good sealing, small temperature deviation
Principle
◆Environmental -40℃ Damp Heat Test Chamber adopts English touch screen, multi-group PID control function, RS-232C/485 ℃ connection computer interface control.
◆With high-accuracy programming control and fixed-point control system that is easy to operate and learn
