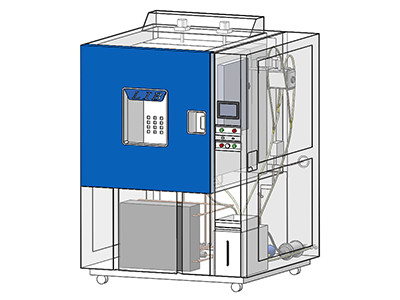

LCD Touch Screen 500L Humidity Test Chamber Programmable
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Temperature Equipment | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | 500L Humidity Test Chamber,LCD Touch Screen Humidity Test Chamber,Programmable LCD Humidity Test Chamber |
||
Product Description
TH-100 98% RH Humidity Test Temperature Equipment
Description
TH-100 98% RH Humidity Test Temperature Equipment simulates the temperature and humidity of the natural climate and provides customers with the weather resistance of new products that reproduce various natural environments and climates.
After a variety of harsh environmental tests, new products can quickly detect their weak links to improve, so as to develop new products
Main Technical Parameter
|
Name |
TH-100 98% RH Humidity Test Temperature Equipment |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Deatil
 |
|
|
|
water circulation system |
|
|
Custom Equipment
1. TemperatureTest Equipment, Non-standard custom sizes are available for customers;
2. The temperature range and heating and cooling time can be customized according to customer requirements;
3. Connect other equipment, can customize test hole, controller
Service
1. 3 years warranty, lifetime service;
2. Free installation, commissioning, and training at the buyer's site;
3. Temperature machine can provide comprehensive technical training, and provide timely and perfect after-sales service for equipment maintenance, spare parts supply and other aspects.
