225L Medium Type Humidity Test Chamber Simulation Environmental Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Simulation Environmental Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | Medium Type Humidity Test Chamber,Medium Type Simulation Environmental Chamber,225L Simulation Environmental Chamber |
||
Product Description

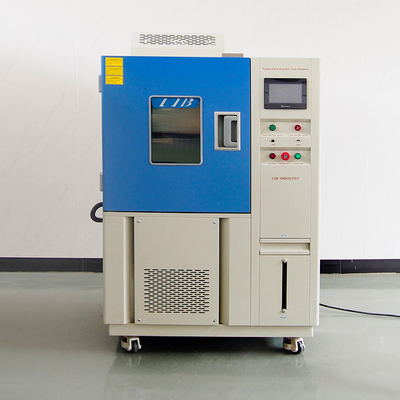

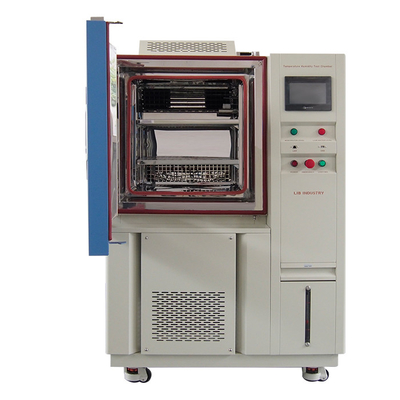

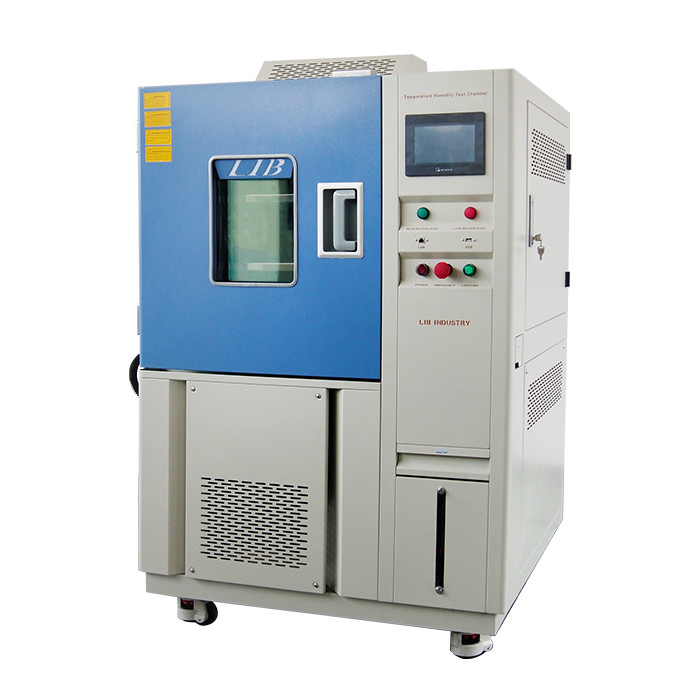

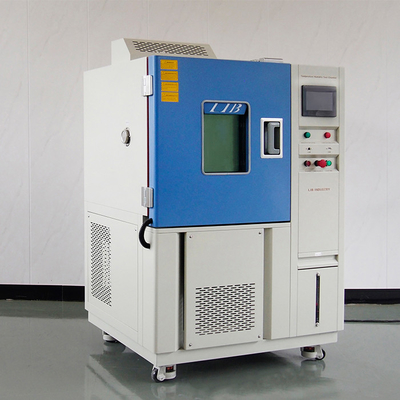

225L Medium Type Simulation Environmental Chamber
Description
This test chamber is an Simulation environmental chamber for material testing under low temperature conditions, through simulating the environment, to detect the properties of materials and products.
Main Technical Parameter
|
Name |
225L Medium Type Simulation Environmental Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
 |
|
|
|
Performance Characteristics
●Simulation temperature chamber,Rectangular laminated glass viewing window, which can be used to observe the test items in the test.
●The window is equipped with anti-perspiration electric heater device to prevent water condensation and high brightness PL fluorescent lamp to keep the lighting inside the device.
●Simulation humidity chamber,Full color touch screen control using LCD programmable controller, temperature and humidity at the same time programmable control
●The EC film heating and defrosting device is installed inside the observation window of composite glass, so that you can clearly observe the test status of the samples in the device through the observation window at any time.
●Environmental test chamber,High texture appearance of the body arc shape, the surface of the fog stripe treatment of stainless steel or paint, and the use of a plane no reaction handle, easy to operate, safe and reliable
