Lab High Temperature Environmental Control Chamber 10% - 98% RH

Lab High Temperature Environmental Control Chamber 10% - 98% RH

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS
Model Number: TH-225

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Environmental Control Chamber Low Type: -20℃/-40℃/-60℃/-70℃/-86℃
Controller: PLC,PC Link, R-232 Interface,USB,APP Humidity Range: 10% - 98% RH
Temperature Range: -20℃ ~+150 ℃ Exterior Material: A3 Steel Plate
High Light:

High Temperature Environmental Control Chamber

,

Lab Environmental Control Chamber

,

Lab environmental chamber humidity control

Product Description

Lab High Temperature Environmental Control Chamber

Description


Lab High Temperature Environmental Control Chamber can be the environmental test equipment used for the performance testing of high temperature, low temperature or high and low temperature cycle,



which is generally suitable for industries such as aviation, aerospace, electronics, electrical engineering, automobiles and motorcycles, plastics, rubber and rubber products.



Environmental test chamber widely used in simulates various high and low temperature harsh climates to test the detailed data of thermal expansion and contraction of various products,


Main Technical Parameter




Name

 Lab High Temperature Environmental Control Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V

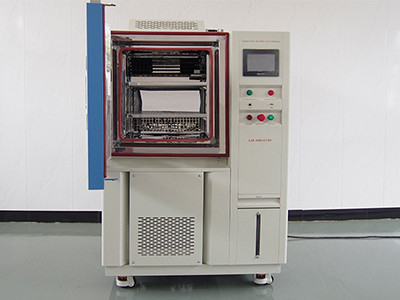

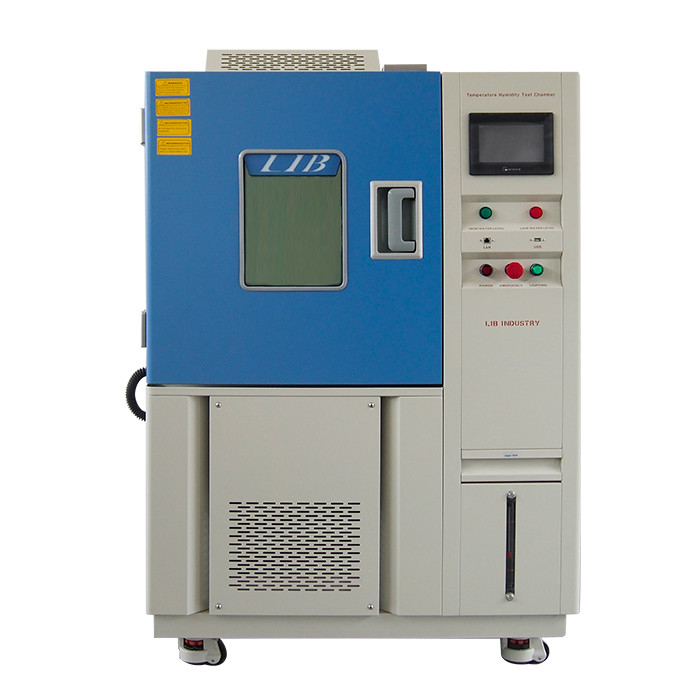

Lab High Temperature Environmental Control Chamber 10% - 98% RH 0 Lab High Temperature Environmental Control Chamber 10% - 98% RH 1

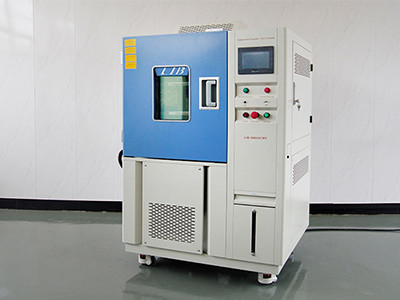

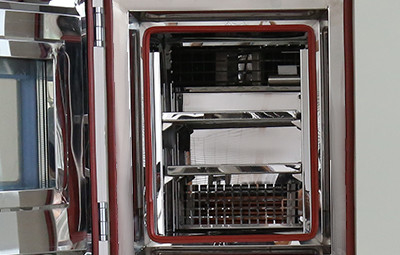

Lab High Temperature Environmental Control Chamber 10% - 98% RH 2 Lab High Temperature Environmental Control Chamber 10% - 98% RH 3



Performance Characteristics


1. Environmental climate chamber,The product has beautiful appearance, reasonable structure, good technology, simple and convenient operation performance and reliable equipment performance.



2. There is a test hole with a diameter of 50mm on the left side of the box, which can be used for external power load wiring test components.



3.Climate test chamber, The refrigeration system adopts mechanical refrigeration and uses environmentally friendly refrigerants



4. The number of cycles and defrosting times can be set to automatically (manually) defrost.
