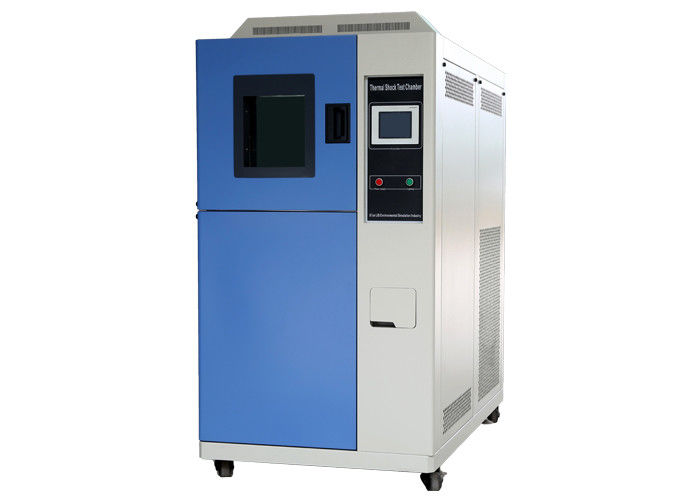

Air Cool Type Thermal Cycling Chamber 380V 50HZ Thermal Shock Test Chamber

Air Cool Type Thermal Cycling Chamber 380V 50HZ Thermal Shock Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE RoHS ISO17025
Model Number: TS-340

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 10 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Pre-high Temp.: +220℃ Volume: 160L, 210L, 500L, 1000L And More
Power Supply: 380v, 50Hz Cooling Mode: Air-cool Type
Noise: Less Than 65db Temperature Range: -70C To 150C
High Light:

thermal testing equipment

,

thermal cycling machine

Product Description

Air Cool Type Thermal Cycling Chamber 380V 50HZ Thermal Shock Test Chamber

Highly Accelerated temperature Shock Temperature Cycling Thermal Shock Tester

Advantage of Temperature Cycling Thermal Shock Tester



Highly Acceleratedtemperature Shock Temperature Cycling Thermal Shock Tester with single or multiple chambers may be used to perform thermal shock testing. When using single chamber thermal shock equipment, the products or samples remain in one chamber and the chamber air temperature is rapidly cooled and heated. This usually results in a slower rate of change in the product response temperature as the entire chamber must be cooled down and heated up. However larger products can be tested in single compartment chambers. Some equipment uses separate hot and cold chambers with an elevator mechanism that transports the products between two or more chambers. This results in a more rapid rate of change in the air temperature.

Description of Temperature Cycling Thermal Shock Tester



Highly Acceleratedtemperature Shock Temperature Cycling Thermal Shock Tester ,Thermal shock testing also called temperature shock testing or temperature cycling exposes products to alternating low and high air temperatures to accelerate failures caused by repeated temperature variations during normal use conditions. The transition between temperature extremes occurs very rapidly during thermal shock testing, greater than 15 °C per minute. hermal shock testing also called temperature shock testing or temperature cycling exposes products to alternating low and high air temperatures to accelerate failures caused by repeated temperature variations during normal use conditions. The transition between temperature extremes occurs very rapidly during thermal shock testing, greater than 15 °C per minute. Alternatively, temperature cycle testing uses slower rates of change between high and low temperatures.

Products Parameters of Temperature Cycling Thermal Shock Tester



Name Highly Acceleratedtemperature Shock Temperature Cycling Thermal Shock Tester
Model TS-340
Inner dimensions of test room (mm) 450*450*360
Volume of test room (mm) 72L
Load of test room 30kg
Overall dimensions(mm) 1710*1020*1845

Pre-heat room



Upper limit preheat temperature +220℃
  Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.



Pre-cool room

Lower limit pre-cool temperature -75℃
  Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
  Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Air circulation Centrifugal wind fan
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% R



Design and Construction of Temperature Cycling Thermal Shock Tester

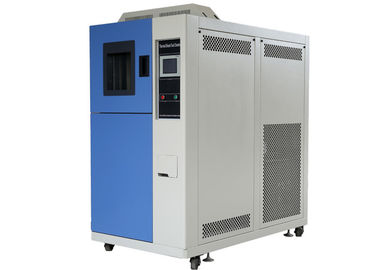

Air Cool Type Thermal Cycling Chamber 380V 50HZ Thermal Shock Test Chamber 0

1.Test Area

Test area is made of stainless-steel.

Elevator type

Basket displacement time less than 15 seconds

Temperature resetting time less than 15 minutes

2 pieces of adjustable and removable shelves

Test hole, sealed with silicone screw plug

2.Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network

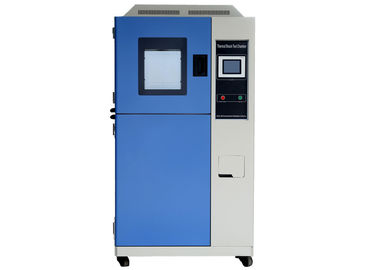

Air Cool Type Thermal Cycling Chamber 380V 50HZ Thermal Shock Test Chamber 1
3.Viewing Window
Double layer insulating glass 8cm thick, made of tempered glass.
The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the work room lighting, can clearly observe samples.
The light control button is located below the controller.

4.Castor
Install 4 castors for ease moving, and with brakes function. Caster height adjustable.















Packages
  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 4.9 m³, gross weight: 430kg



Service



  • Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



  • Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



  • To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



  • Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.

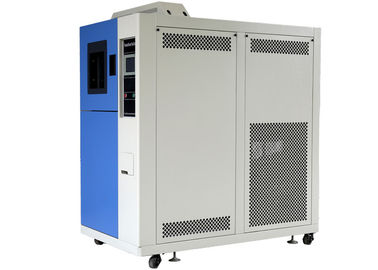

Air Cool Type Thermal Cycling Chamber 380V 50HZ Thermal Shock Test Chamber 2
