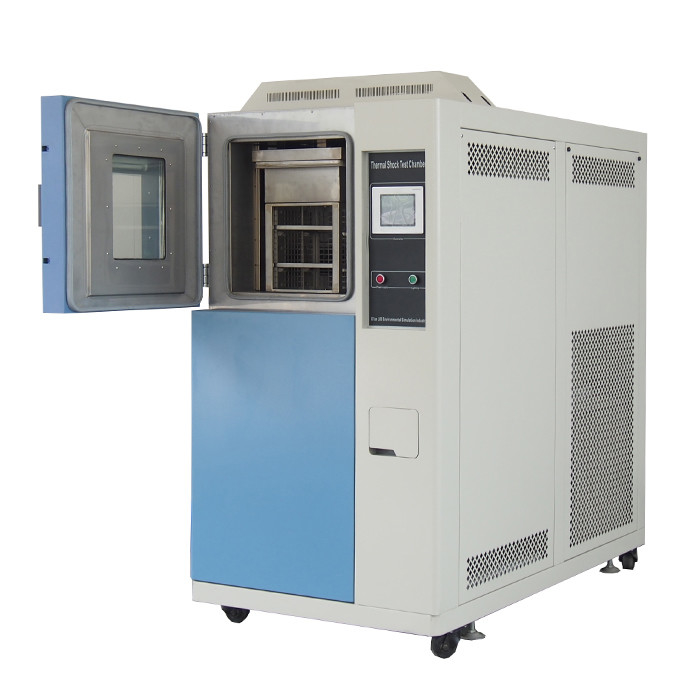

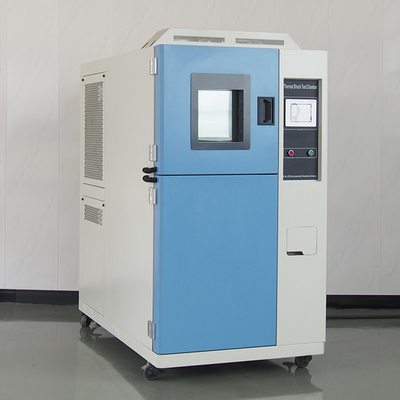

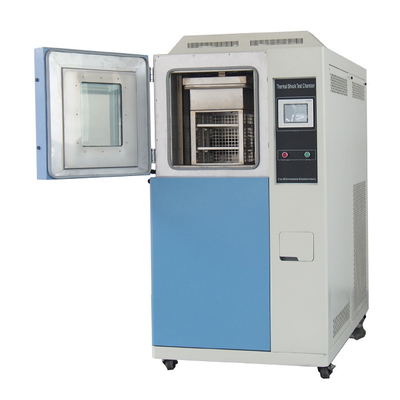

Programmable 210L Thermal Shock Chamber Environmental
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Thermal Shock Environmental Chamber | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 160L, 210L, 500L, 1000L And More | Power Supply: | 380v, 50Hz |
| Cooling Mode: | Air-cool Type | Temperature Range: | -70C To 150C |
| High Light: | 210L Thermal Shock Chamber,Programmable Thermal Shock Chamber,210L thermal shock test chamber |
||
Product Description
Description
The Programmable 210L Thermal Shock Environmental Chamber is an environmental test equipment used to test material structures or composite materials.
The thermal shock test chamber is widely used in the environmental test of plastic, rubber, metal, electronic devices and other materials or products (or semi-finished products), and can greatly change the ambient temperature of the test sample in the shortest time.
Parameter
| Name | Programmable 210L Thermal Shock Environmental Chamber | ||||
| Model | TS-340 | ||||
| Inner dimensions of test room (mm) | 450*450*360 | ||||
| Volume of test room (mm) | 72L | ||||
| Load of test room | 30kg | ||||
| Overall dimensions(mm) | 1710*1020*1845 | ||||
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
|
Pre-cool room |
Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3 ℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Refrigerant | R404A, R23 | ||||
| Air circulation | Centrifugal wind fan | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% R | ||||
Advantage
 |
|

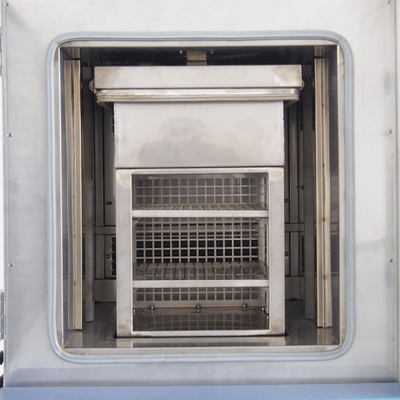

| Test Area | Cable Hole |
There are 2 Types of Thermal Shock Test Chamber
●2 zone thermal shock chamber
Divided into hot and cold areas, the change of high temperature and low temperature is mainly through the basket to move the sample between the hot and cold areas.
●3 zone thermal shock chamber
The sample is statically prevented, the studio will be pre-cooled and pre-heated
|
|
