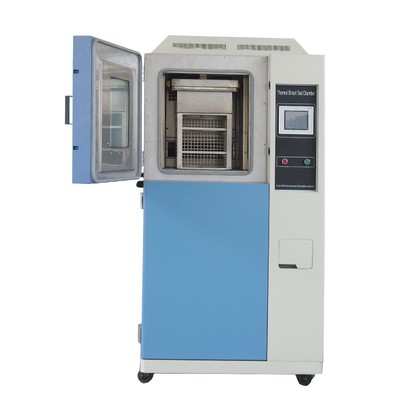

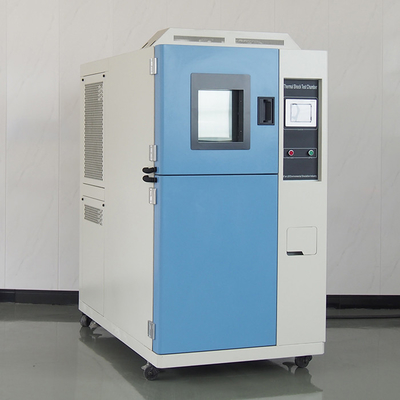

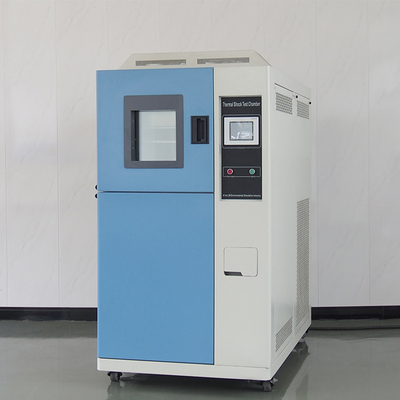

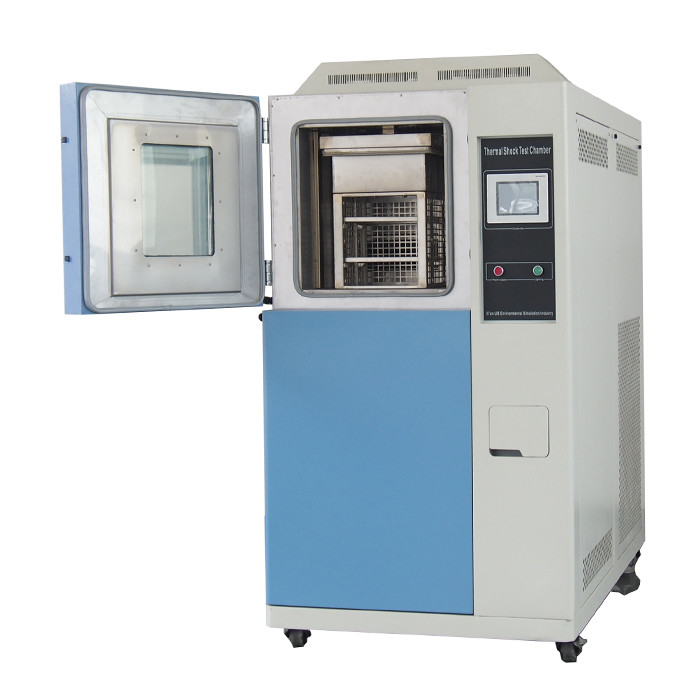

Tmperature Simulation Use Thermal Shock Chamber 72L
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Used Thermal Shock Chamber | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 22L, 72L, 211L, 505L And More | Power Supply: | 380v, 50Hz |
| Cooling Mode: | Air-cool Type | Temperature Range: | -70C To 150C |
| High Light: | Thermal Shock Chamber 72L,Tmperature Simulation Thermal Shock Chamber,Tmperature Simulation thermal shock tester |
||
Product Description
Description
Thermal Shock Chamber is used to quickly find the hidden mechanical weaknesses in electronic components
when test specimens are exposed to rapid thermal shock condition, and you will not only reduce the premature
failures but also increase the reliability of your products when you choose our thermal shock test chamber.
Parameter
| Name | Tmperature Simulation Used Thermal Shock Chamber TS-340 | ||||
| Model | TS-340 | ||||
| Inner dimensions of test room (mm) | 450*450*360 | ||||
| Volume of test room (mm) | 72L | ||||
| Load of test room | 30kg | ||||
| Overall dimensions(mm) | 1710*1020*1845 | ||||
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
|
Pre-cool room |
Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3 ℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Refrigerant | R404A, R23 | ||||
| Air circulation | Centrifugal wind fan | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% R | ||||
Structure
 |
|
| programmable controller | Test Area |
Features
1. It adopts color touch panel,easy setting.
2. It adopts paperless recording and it can display testing curve immediately.
3. Pneumatic basket movement design to move specimen safety.
4. Mechanism transfer time within 10 second can complies with MIL, IEC, JIS and other test standards.
5. It is equipped with excellent temperature recovery performance.
6.Support for custom(Color, size, Logo, material,)
1. It adopts color touch panel,easy setting.
2. It adopts paperless recording and it can display testing curve immediately.
3. Pneumatic basket movement design to move specimen safety.
4. Mechanism transfer time within 10 second can complies with MIL, IEC, JIS and other test standards.
5. It is equipped with excellent temperature recovery performance.
6.Support for custom(Color, size, Logo, material,)
