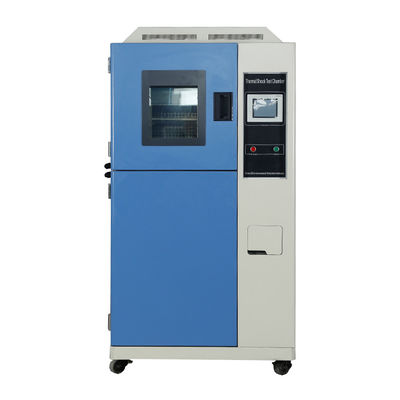

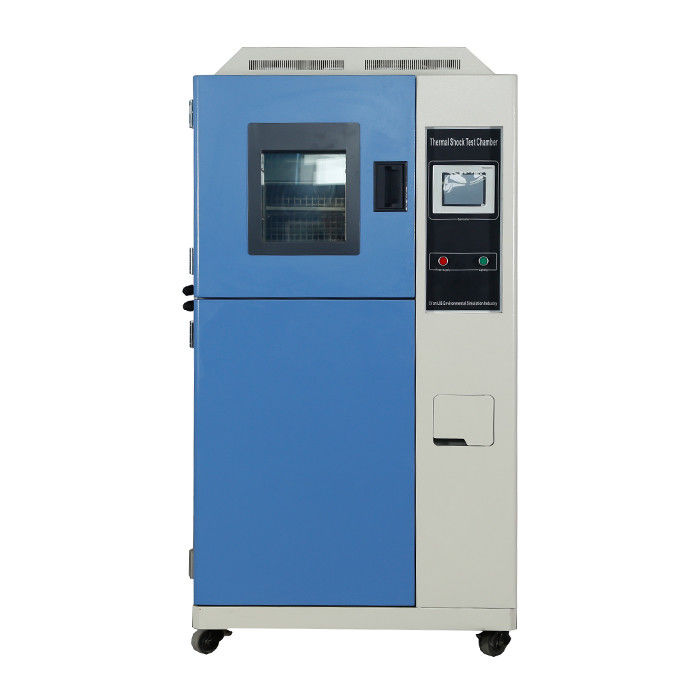

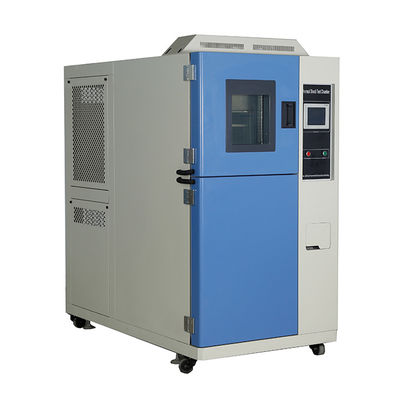

-75℃ 220℃ Thermal Cycling Chamber Programmable 2 Zone Thermal Shock Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | 2-zone Thermal Shock Test Chamber | Usage: | Factories, Laboratories, Universities |
|---|---|---|---|
| Cooling Mode: | Air-cool Type | Noise: | Less Than 65db |
| Temperature Range: | -70C To 150C | Pre-high Temp.: | +220℃ |
| High Light: | 220c Thermal Cycling Chamber,-75c Thermal Cycling Chamber,2 Zone Thermal Shock Chamber |
||
Product Description
Description
LIB INDUSTRY 2-zone thermal shock test chamber is usd to test the capability of material structure or composite materials to withstand the continuous Environmental changes between extremely high temperature and low temperature during a short period.and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time.
Technical Specification
| Name | TS-500 -75℃ 220℃ Programmable 2-zone Thermal Shock Test Chamber | ||||
| Model | TS-500 | ||||
| Inner dimensions of test room (mm) | 650*650*500mm | ||||
| Volume of test room (mm) | 211L | ||||
| Load of test room | 50kg | ||||
| Overall dimensions(mm) | 1710*1020*1845 | ||||
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
|
Pre-cool room |
Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3 ℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Refrigerant | R404A, R23 | ||||
| Air circulation | Centrifugal wind fan | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% R | ||||
Details
 |
|

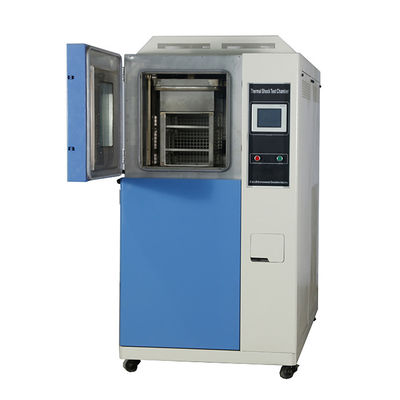

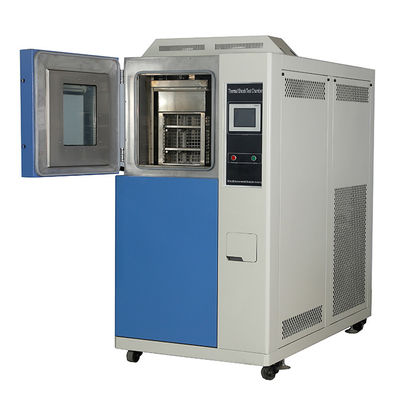

| Safety Basket and Test Area | Programmable Controller |
Advantage
1. The basket is driven by safe air pressure,moves up and down in 10 seconds, which comply with MIL,IEC,JIS.,etc
2. Temperature recoveries with 5 minutes.which complies with relevant testing standards.
3. Temperature shock machine use environmental-friendly ultra low temperature cooling system,fast cooling and high efficiency.
4.Two zones thermal shock machine circulates cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the setpoint, allowing quicker recovery of the desired condition after transfer.
Features
1.Programs may be written on a PC and uploaded via USB.
2.Test samples don't move.
3.Horizontal airflow design assures uniform results
4.Extremely compact systems with a vertically sliding door for added space savings.
5.Thermal shock equipment adopt environment-friendly refrigerant R404A,R23,R449A,R508B,
