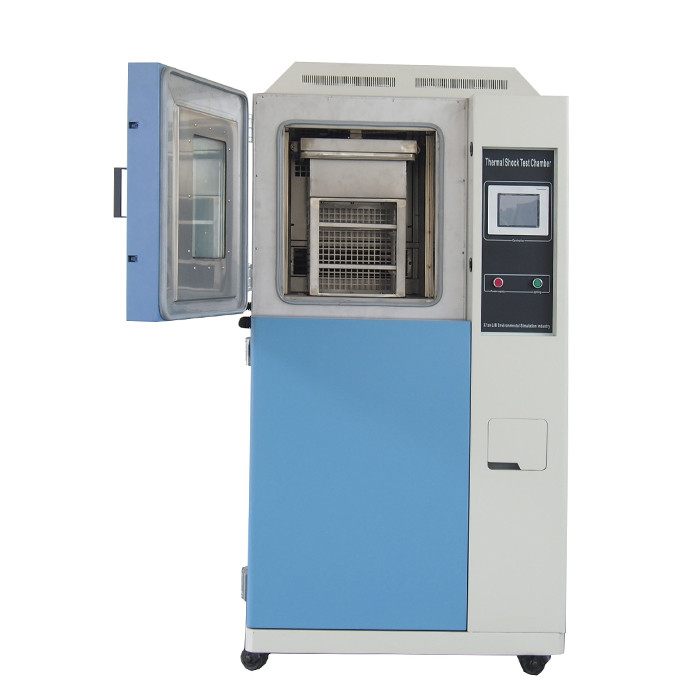

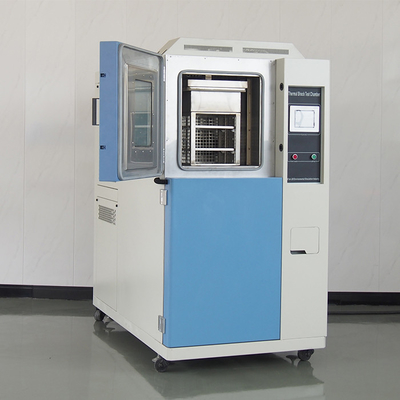

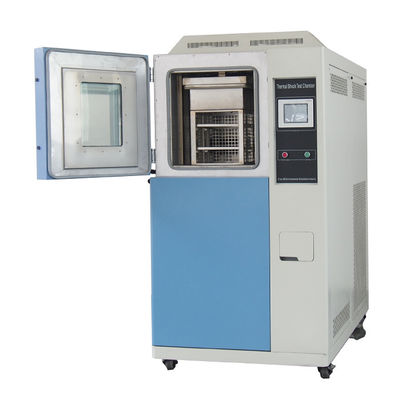

200°C Heat Shock Thermal Environmental Chamber Air Cool

200°C Heat Shock Thermal Environmental Chamber Air Cool

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE RoHS ISO17025
Model Number: TS-340

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 10 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Thermal Environmental Chamber Pre-high Temp.: +220℃
Volume: 160L, 210L, 500L, 1000L And More Power Supply: 380v, 50Hz
Cooling Mode: Air-cool Type Temperature Range: -70C To 150C
High Light:

Heat Shock Thermal Environmental Chamber


200C Thermal Environmental Chamber


200C thermal shock chamber

Product Description


200°C Heat Shock Thermal Environmental Chamber is used to test endurance life for material or compostite material structure,in an instant extremely high low temperature.It can check chemical or physical damage of the specimen because of expansion&contraction in the shortest time.



Name 200°C Heat Shock Thermal Environmental Chamber
Model TS-340
Inner dimensions of test room (mm) 450*450*360
Volume of test room (mm) 72L
Load of test room 30kg
Overall dimensions(mm) 1710*1020*1845

Pre-heat room


Upper limit preheat temperature +220℃
  Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.


Pre-cool room

Lower limit pre-cool temperature -75℃
  Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
  Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Air circulation Centrifugal wind fan
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% R



200°C Heat Shock Thermal Environmental Chamber Air Cool 0 200°C Heat Shock Thermal Environmental Chamber Air Cool 1

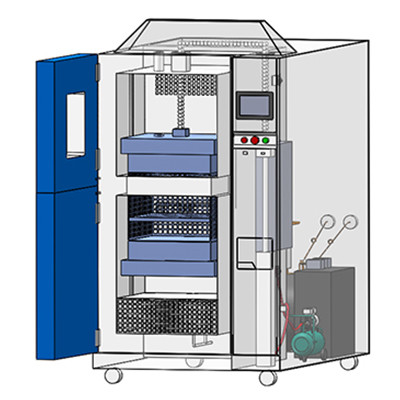

Internal and External Material
Cooling System



Thermal environmental chamber

1. LCD touch screen controller can display multiple languages

2. High formula memory capacity can be set to 120 patterns. The maximum cycle setting is 9999 times. The maximum setting of each section is 999 Hrs 59 Mins.

3. Equipped with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.

4. thermal cycling test chamber,All systems are fully automatic, and all process are precisely controlled with PLC.


LIB More Environmental Test Chamber

Beside thermal environmental chamber, LIB INDUSTRY are also supply temperature and humidity test chamber,hot air oven, Temperature & humidity Control Host, Ozone test chamber, Salt Spray Tester, Walk In environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber.
