3 Cabinets Temperature Cycling Oven Aging Test Chamber 210 Liters 500×500×400
|Place of Origin:||China|
|Certification:||CE RoHS ISO17025 CSA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Price:||USD9000 ~ USD35000 / SET|
|Packaging Details:||Wooden cases standard export package|
|Delivery Time:||10 days ( check if have stock)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||360 sets / quarter|
|Pre-low Temp.:||-70℃||Pre-high Temp.:||+220℃|
|Volume:||160L, 210L, 500L, And More||Power Supply:||380v, 50Hz|
|Cooling Mode:||Air-cool Type||Standard:||CE RoHS CSA ISO17025|
shock testing equipment,
thermal cycling machine

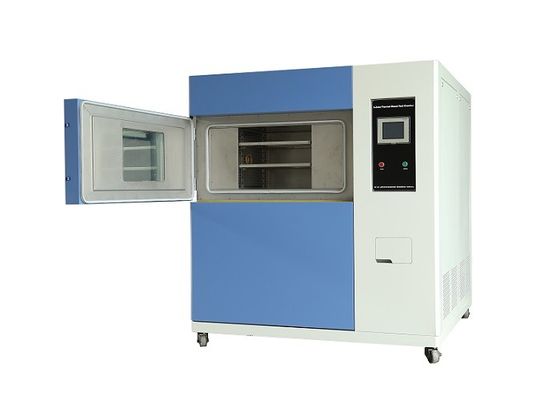

3Ts Series 3 Cabinets Temperature Thermal Shock Aging Test Chamber 3Ts-100
3Ts Series 3 Cabinets Temperature Thermal Shock Aging Test Chamber 3Ts-100 is used in field of Automobile Industry, Aircraft Industry, Electronics, Materials, Laboratory Calibration, University Research.
3Ts Series 3 Cabinets Temperature Thermal Shock Aging Test Chamber 3Ts-100 is pneumatic damper type , chamber volume available with 100L, 210L, 500L, 1000L and more. Adopts air-cool and water-cool types to guarantee low temeprature fast change and stabilitiy.
|Name||3Ts Series 3 Cabinets Temperature Thermal Shock Aging Test Chamber 3Ts-100|
|Pre-heat room||Upper limit preheat temperature||+220℃|
|Heating time||Ambient temperature to ~ + 200℃, within in 30 minutes.|
|Lower limit pre-cool temperature||-70℃|
|Cooling time||Ambient temperature to ~ -70℃, within in 30 minutes|
|Test room||High temperature exposure range||Ambient temperature +20 to +200°C|
|Low temperature exposure range||–65 to -5°C|
|Recovery time||Within 15 minutes|
|Controller||Programmable color LCD touch screen controller|
|Cooling system||Mechanical compression refrigeration system|
|Air circulation||Centrifugal wind fan|
over-current protection; Refrigerant high-pressure protection; Earth leakage protection;
|Exterior material||Steel Plate with protective coating|
|Interior material||SUS304 stainless steel|
|Thermal insulation||Polyurethane foam|
|Standard configuration||2 pieces of stainless steel shelves, Φ 50 round cable port|
|Power Supply||380V 50HZ|
|Environmental conditional||5℃～+40 ℃ ≤85% RH|
- Pneumatic damper type thermal shock chamber
- Pre-hot room, pre-cool room and test room configuration
- Temperature recovery time less than 15 minutes
- Programmable color LCD touch screen controller
- Lamp inside of chamber
- Ethernet and USB(option)
- Large viewing window
- Safety protection system
- Different models
- 3 years warranty
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 4.9 m³, gross weight: 430kg
- Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
- Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
- To be our agent
We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service
will support for you.
- Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
