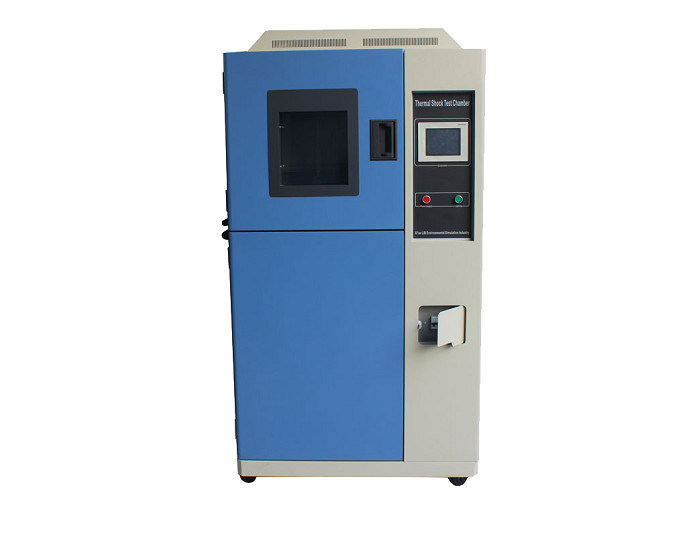

Impact Thermal Cycling Chamber Environmental Thermal Cycling Oven Lamp Inside

Impact Thermal Cycling Chamber Environmental Thermal Cycling Oven Lamp Inside

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE RoHS ISO17025 CSA
Model Number: TS-340

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD9000 ~ USD37000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 10 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Pull Down Rate: 5℃/minute Test Room: Basket Type
Name: Thermal Shock Environmental Chamber Standard: CE RoHS CSA ISO17025
Application: Auto Industry, Electronics, Aircraft, Material
High Light:

shock testing equipment


thermal cycling machine

Product Description

Air To Air 2-Cabinet Thermal Temperature Impact Climate Chamber Model Ts-162 Ts-340


LIB Hot Sale Thermal Temperature Impact Environmental Chamber -70℃ is used in field of Automobile Industry, Aircraft Industry, Electronics, Materials, Laboratory Calibration, University Research.


LIB Hot Sale Thermal Temperature Impact Environmental Chamber -70℃ is pneumatic damper type , chamber volume available with 100L, 210L, 500L, 1000L and more. Adopts air-cool and water-cool types to guarantee low temeprature fast change and stabilitiy.


Products Parameters


Name LIB Hot Sale Thermal Temperature Impact Environmental Chamber -70℃
Model TS-500 TS-1000
Inner dimensions of test room (mm) 650*650*500 850*850*700
Volume of test room (mm) 211L 505L
Load of test room 50kgs 60kgs
Overall dimensions(mm) 1910*1220*2265 2110*1420*2665
Pre-heat room Upper limit preheat temperature +220℃
Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.


Pre-cool room

Lower limit pre-cool temperature -75℃
Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Safety device

Over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Earth leakage protection;

Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ



Key Features


  • Smooth sample elevator transfer between cold chamber to hot chambers

  • Temperature recovery time less than 15 minutes

  • Programmable color LCD touch screen controller

  • Lamp inside of chamber

  • Ethernet and USB(option)

  • Large viewing window

  • Safety protection system

  • Different models

  • 3 years warranty



1. Different size chamber, from 100L, 210L, 500L to 1000l, and more
2. Ultralow pre-cool temperature

3. Ultrahigh pre-heat temperature
4. High stability of cooling system
5. Data collection and download to USB
6. Popular and factory price
7. 3-Year warranty
8. Quick response within 24 hours



  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 4.9 m³, gross weight: 430kg




  • Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.


  • Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc


  • To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.


  • Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
