800L Dust Testing Equipment Sand Dust Tester 380V 50HZ IEC60529 Standard
|Place of Origin:||China|
|Certification:||CE RoHS ISO17025 CSA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Price:||USD7000 ~ USD15000 / SET|
|Packaging Details:||Wooden cases standard export package|
|Delivery Time:||18 days ( check if have stock)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||360 sets / quarter|
|Sand-dust Concentration:||2kg/m3||Power Supply:||380v 50Hz|
|Standard:||IEC 60529, ISO 20653||Volume:||800L, 1000L, 1500L, 2000L|
|Certificate:||CE RoHS CSA ISO17025||Application:||Auto Industry, Electronics, Aircraft, Material|
dust testing equipment,
sand testing equipment

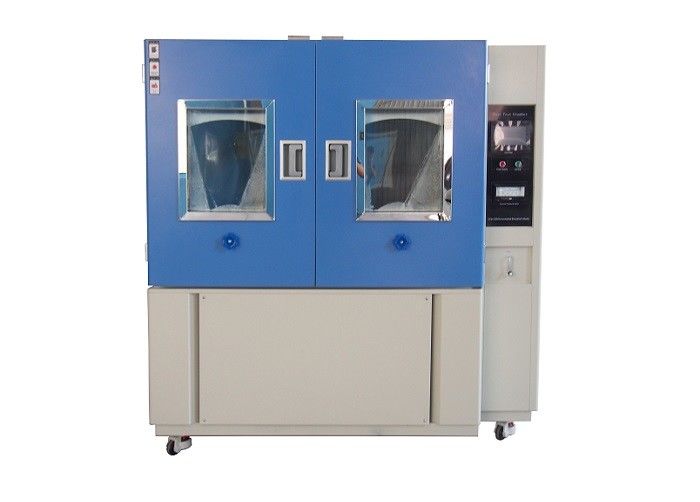

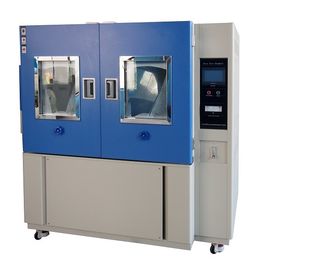

IEC60529 Standard IP Sand And Dust Climatic Test Chamber D-1000 DI-2000
IEC60529 Standard IP Sand And Dust Climatic Test Chamber are made for the simulation of dust and sand conditions. These test chambers are used for evaluating the effects of dust-filled environments in order to validate product seal integrity. Dust test chambers are utilized in Automotive, Electro-technical products, Materiel, Coatings, Solar Energy, etc.
Sand and dust test specifications are designed to test components against dust ingress per IP rate.
Four models are available as standard types. Chamber size and configuration can be customized according to customer request.
|Name||IEC60529 Standard IP Sand And Dust Climatic Test Chamber|
|Internal dimensions (mm)||800*1000*1000||1000*1000*1000||1000*1500*1000|
|Overall dimensions (mm)||1040*1450*1960||1200*1450*1960||1250*1900*1960|
|Temperature range||Ambient to +50℃|
|Normal wire diameter||50um|
|Normal width of a gap between wire||75um|
|The Talcum powder amount||2kg ~ 4kg/m3|
|Fan cycle time||0 ~ 99H59M|
|Specimen power outlet||Dust-proof socket AC220V 16A|
|Controller||programmable color display touch screen controller|
|Ethernet, USB (option)|
|Vacuum system||Equipped with a pressure gauge, air filter, pressure regulator, connecting tube|
|Circulating fan||Enclosed alloy low-noise motor, multi-vane centrifugal fan|
|Heating system||Independent Nichrome electronic heating system|
|Exterior material||Steel Plate with protective coating|
|Interior material||SUS304 stainless steel|
|Safety System||Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller|
|Power supply||380V 50HZ|
- Blowing dust controlled by dust blowing mechanism
- Programmable color display touch screen controller
- Ethernet and USB
- A viewing window with a manually controlled wiper
- Strong stainless steel shelf for placing test specimens
- Inside equipped with power interface and vacuum system for specimens
- Internal illumination in workroom
- Dust collection section
- Safety protection
- Easy to operate
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 3.2m³, gross weight: 460kg
- Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
- Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
- To be our agent
We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service
will support for you.
- Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
