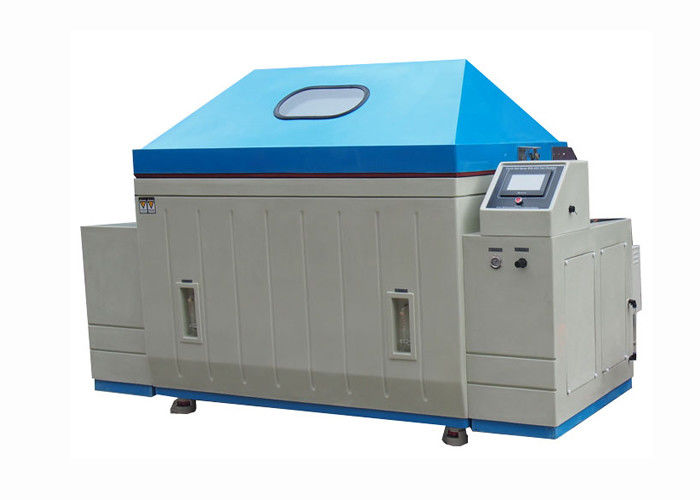

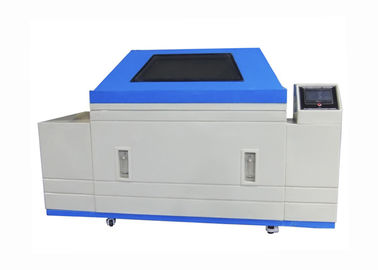

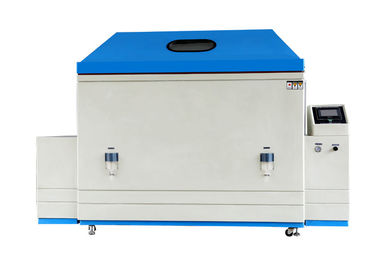

Accelerated Cyclic Salt Spray Test Machine / Artificial Climate Chamber SC-010
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS ,CSA |
| Model Number: | SC-010 Cyclic Corrosion Chamber |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-18 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Wooden Cases Standard Export Package: | 800*1450*680 | Temperature Range: | 10℃ ～90℃ |
|---|---|---|---|
| Humidity Range: | 30% ~ 98% RH | Spray Deposition: | 1～2ml / 80cm2 · H |
| Humidity Tolerance: | +2%，-3% | Power Supply: | AC 380V 50HZ |
| High Light: | salt fog test equipment,salt mist test chamber |
||
Product Description
Salt Spray Accelerated Cyclic Corrosion Artificial Climate Chamber SC-016 SC-010
Salt Spray Accelerated Cyclic Corrosion Artificial Climate Chamber are available in SS series and CCT series.SS chambers are salt spray chambers meet ASTM-B117, ISO, IEC and other International Standards test methods. CCT chambers are cyclic corrosion test chambers to perform comprehensive salt spray with climate control tests.
Salt Spray Accelerated Cyclic Corrosion Artificial Climate Chamber ,Corrosion Chamber,Corrosion Test Chamber is applicable for various kinds material’s surface treatment with temperature humidity and salt water spray, such as after coating, electroplate, inorganic and organic membrane dermal, negative pole with antirust oil treatment etc anti-corrosive treatment to test the corrosion-resistance of the product.
| Model | SC-010 | ||
| Internal dimensions (mm) | 800*1450*680 | ||
| Overall dimensions (mm) | 1400*2500*1720 | ||
| Temperature range | 10℃ ～90℃ | ||
| Humidity range | 30% ~ 98% RH | ||
| Temperature tolerance | +/- 2.0 ℃ | ||
| Humidity tolerance | +2%,-3% | ||
| Salt concentration tolerance | ±1% | ||
| Spray deposition | 1～2ml / 80cm2 · h | ||
| Controller | Programmable color LCD touch screen controller | ||
| Temperature sensor | PT100Ω / MV A-class | ||
| Humidity sensor | Dry and wet bulb sensor | ||
| Heater | Nichrome heater | ||
| Cooling system | Mechanical compression refrigeration system | ||
| Refrigerating unit | French TECUMSEH compressor | ||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
| Air circulation | Centrifugal wind fan | ||
| Salt fog collected | Fog collector and fog measure cylinder | ||
| Salt water preheating | Saturated air barrel | ||
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) | ||
| Interior /Exterior material | Glass fiber reinforced plastics | ||
| Standard configuration | sample holder / Fog collectors / measure cylinder | ||
| Power Supply | AC 380V 50HZ | ||
| Test standard | IEC60068-2-52, IEC61701-2, ASTM G85,ISO 7253 | ||
♦ Material is Glass fiber reinforced plastics
♦ Programmable color LCD touch screen controller
♦ Build- in salt solution reservoir
♦ Spray deposition is 1~2ml / 80cm2 · h
♦ Continuous / periodic salt spraying
♦ Temperature sensor PT-100 MV A-class
♦ 2 fog collectors in cabinet
♦ Standard sample holders
♦ Protection System
Our main products have been certified by CE,CAS,and RoHS compliance.
●3 Years Warranty, Lifelong Follow-up Services.
●Training how to install and operate the machine.
●Training how to maintain the machine.
●Response within 24 hours once got questions from customers.
●Send spare parts within 2 days after got notice.
●Engineers available to service machines overseas to install and commissioning.
