Corrosion Fog Resistance Salt Spray Test Equipment Earth Leakage Protection

Corrosion Fog Resistance Salt Spray Test Equipment Earth Leakage Protection

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: S-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD1980 ~ USD6220/ SET
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Internal Dimensions: 800*1450*680(mm) Temperature: Ambient ~60℃
Usage: Laboratory, University, Research Center Warranty: 36 Months
Power: AC 380V±10% 50Hz Standard: ASTM B-117; ISO9227,ASTM B-117; JIS H8502; IEC 68-2-11;IEC68-2-52; MIL-STD-750
High Light:

salt fog test equipment

,

salt mist test chamber

Product Description

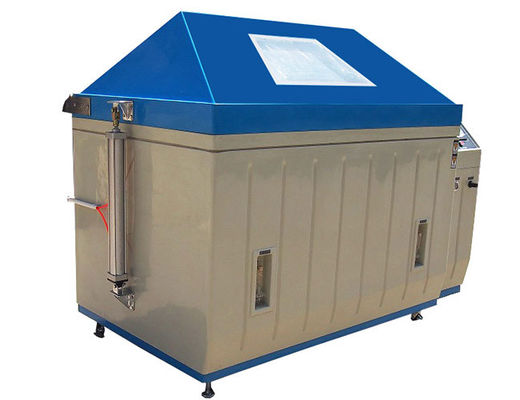

Corrosion Fog Resistance Salt Spray Test Equipment Earth Leakage Protection

Corrosion Fog Resistance Salt Spray Test Chamber,Salt Spray Test Machine Price

Advantage of Salt Spray Test Machine

● 100L, 210L, 500L to 1000l, and more

● Anti-corrosion material glass fiber reinforced plastics to make chamber body durable

● Data collection and download to USB (option)

● Popular and factory price

● Safety Device:

(1) Humidifier dry-combustion protection; (2)over-temperature protection;

(3) over-current protection; (4)Refrigerant high-pressure protection; (5)Water shortage protection,

(6) Earth leakage protection;



Description of Salt Spray Test Machine

Corrosion Fog Resistance Salt Spray Test Chamber,Salt Spray Test Machine Price can accurately evaluate your product’s performance in a simulated real-world environment. Whether you need to mimic rain, a shower, spray-like conditions, or a combination of tests, The salt spray chamber Series will enable you to evaluate the integrity and performance of your design quickly and effectively.



Products Parameters of Salt Spray Test Machine



Name Corrosion Fog Resistance Salt Spray Test Chamber,Salt Spray Test Machine
Model SC-010
Internal dimensions (mm) 800*1450*680
Overall dimensions (mm) 1400*2500*1720
Temperature range 10℃ ~90℃
Humidity range 30% ~ 98% RH
Temperature tolerance +/- 2.0 ℃
Humidity tolerance +2%,-3%
Salt concentration tolerance ±1%
Spray deposition 1~2ml / 80cm2 · h
Controller Programmable color LCD touch screen controller
Temperature sensor PT100Ω / MV A-class
Humidity sensor Dry and wet bulb sensor
Heater Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Humidifier External isolation, stainless steel surface evaporation humidifier
Air circulation Centrifugal wind fan
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Standard configuration sample holder / Fog collectors / measure cylinder
Power Supply AC 380V 50HZ
Test standard IEC60068-2-52, IEC61701-2, ASTM G85,ISO 7253
Key Features of Salt Spray Corrosion Controlled Climatic Chamber

●Material is Glass fiber reinforced plastics
●Temperature measure and control
●Humidity measure and control
●Saturated barrel temperature measure and control
●Programmable color LCD touch screen controller
●Temperature sensor PT-100 MV A-class
●Humidity dry and wet bulb sensor
●Saturated barrel, 31Liter.
●Pneumatically operate cover
●Build- in salt solution reservoir
●2 fog collectors in cabinet
●Bottom install 4 castors for ease moving, and with brakes function
●Standard sample holders
●Exhaust pipe & drain pipe
●Safety protection system

Design and Construction of Salt Spray Test Machine

Corrosion Fog Resistance Salt Spray Test Equipment Earth Leakage Protection 0

Test Area
Fog chamber is made from glass fiber reinforced plastics,
Material is corrosion resistance, anti-aging, high strength.
Hydrostatic hood seal
Test specimen bracket / holder


Corrosion-resistant atomizer tower
Quartz spray nozzles.
2 fog collectors in cabinet
Spray deposition: 1~2ml / 80cm2 • h
Spray type: Continuous / Periodic
Fog is more fine and uniform distribution
Perform a variety of salt corrosion test.



Control Panel
Temperature control and display unit
Saturated barrel temperature control and display Unit
LED display, P.I.D+S.S.R. microcomputer integrated controller
Programmable color touch display controller (option)



Spray Nozzle

Quartz nozzle, high temperature resistant,
no blocking, easy to clean.





Packages

▶Packed with export standard wooden case.
▶Strong packages can be used for sea, air, railway, truck transport and multimodal transport.

▶Quick ship, some models are in stock, ship in 1-3 days.

▶Provide door to door service for customers.

▶Package size: 1.7 m³, gross weight: 210kg



Service



Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



●Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.



FAQ



Q:How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.



Q:Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



Q:Can we come to your factory to study and train?
A
:Welcome to our factory for study and training, we provide this service free of charge.



Q:Can you send engineers to our company?
A
:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components



Q:Can I install and debug calibration on site?
A
:Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



Q:What are the modes of transportation?
A
:Air, sea, rail, multimodal transport.



Q:What is the packaging?
A
:Standard export wooden box packaging, solid and firm.



Q:How do you calibrate the equipment?
A
:We have our own calibration and third-party calibration such as ISO17025



Q:Is there a door to door service?
A
:Yes, there is door to door service. We will arrange a one-stop service.



Q:What are the payment methods?
A
:Payment methods are T/T, Paypal, L/C, VISA



Q:How long is the warranty period?
A
:Warranty period is 3 years, free service for life



Q:Can you ship quickly?
A
:Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
