Durable Sand Dust Settling Dust Test Chamber / IP Testing Equipment

Durable Sand Dust Settling Dust Test Chamber / IP Testing Equipment

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: IEC60529,Rohs,CE
Model Number: DI-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2290 ~ USD8900 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Overall Dimensions (mm): 1000*1500*1000 Temperature Range: Ambient To +50℃
Normal Wire Diameter: 50um Normal Width Of A Gap Between Wire: 75um
Standard: IEC60529,ISO20653 Fight Time: 0 ~ 99H59M
High Light:

sand testing machine

,

dust testing equipment

Product Description

Durable Sand Dust Settling Dust Test Chamber / IP Testing Equipment

Durable Sand Dust Settling Dust Chamber/IP Testing Equipment

Standards of Sand Dust Setting Chamber

IEC 60529

ISO 20653

MIL-STD-810F-510

MIL-STD-810G

Description of Sand Dust Setting Chamber

Durable Sand Dust Settling Dust Chamber/IP Testing Equipment Simulating the destructive nature of the natural sand and sand climate, it is suitable for testing the shell sealing performance of the product. It is mainly used for the test of IP5X and IP6X as specified in the enclosure protection grade standard.



Main Technical Parameter of  Sand Dust Setting Chamber
Name Durable Sand Dust Settling Dust Chamber/IP Testing Equipment
Model DI-800 DI-1500
Internal dimensions (mm)8 00*1000*1000 1000*1500*1000
Overall dimensions (mm)

1040*1450*1960

1250*1900*1960
Temperature range Ambient to +50℃
Relative Humidity <30%RH
Normal wire diameter 50um
Normal width of a gap between wire 75um
The Talcum powder amount 2kg ~ 4kg/m3
Fight time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Controller programmable color display touch screen controller
  PC Link, R-232 interface
Vacuum system Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Safety System Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Power supply 380V 50HZ
Standard IEC60529,ISO20659





Key Features of Sand Dust Setting Chamber



●Larger capacity of 1500 liters and 2000 liters.

●Standard and custom.

●Suitable for large and more quantity products

●Dust blowing through special wind tunnel and air outlet

●Constant dust concentration

●2 viewing windows with wipers

●2 doors with tight seal

●Programmable color LCD touch screen controller

●Multi-language interface

●USB and Ethernet

●Strong stainless steel specimen shelves

●Build -in power interface and vacuum system for specimens

●Internal illumination in test room

●Reliable performance

●Safety protection system

●CE mark, ISO17025 calibration



Design and Construction of Sand Dust Setting Chamber

Test Area & Shelf
Interior of Chamber is SUS304 stainless steel.
A stainless steel shelf for placing test specimens
Standard load of shelf is 50kg
Normal wire diameter is 50 um.
Normal width of a gap between wires is 75um.
Built-in power interface for test specimen
Test chamber internal illumination
Vacuum system for specimen



Control Panel
Programmable color touch display controller
99 programs 99 sections
R-232 interface
PC Link with software
Show total process time on controller.



Viewing Window
Large viewing window with wiper
Can observe samples during testing



Vacuum System for Specimen
Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.
Adjust vacuum value on control panel.

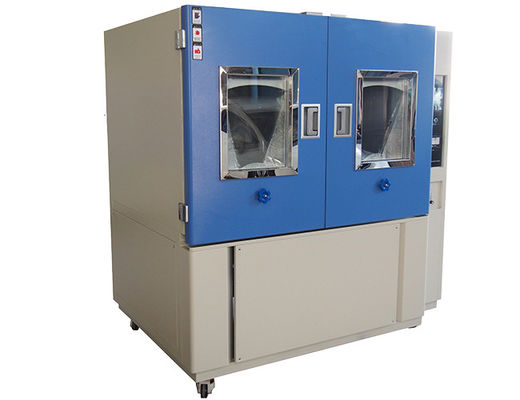

Durable Sand Dust Settling Dust Test Chamber / IP Testing Equipment 0

Packages

  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 3.2m³, gross weight: 460kg



Service



  • Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



  • Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



  • To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



  • Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.





Other Products


More products welcome to consult!
Our main products included temperature and climate test chambers, corrosion chambers, weathering testers, IP dust and rain chambers, ozone test chamber, noxious gas SO2 H2S chamber, walk-in chambers.

Industrial Drying Oven  Walk In Environmental Chamber
Benchtop Environmental Chamber Water Spray Test Chamber 
Constant Humidity Chamber  Xenon Test Chamber



Contact us now,Attach 2 kg of talcum powder!
