Lab Customized Sand And Dust Test Chamber IP68 IP66 IP54 Environmental Simulation

Lab Customized Sand And Dust Test Chamber IP68 IP66 IP54 Environmental Simulation

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ISO17025,ROHS
Model Number: DI-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 140 Sets/ Quarter
Get Best Price Contact Now

Detail Information

Normal Wire Diameter: 50um Normal Width Of A Gap Between Wire: 70um
Maximum Noise: 65dBA Standard: IEC 60529,ISO 20653
Power Supply: 380V 50HZ The Talcum Power Amout: 2kg-4kg/m3
High Light:

sand testing machine

,

dust testing equipment

Product Description

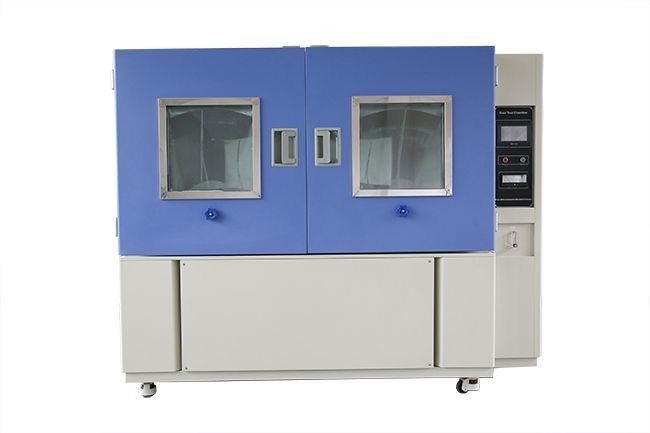

Lab Customized Sand And Dust Test Chamber IP68 IP66 IP54 Environmental Simulation



IP68 IP66 IP54 Lab Environmental Simulation Sand Dust Test Chamber

• Product Information of Sand And Dust Test Chamber

IP68 IP66 IP54 Lab Environmental Simulation Sand Dust Test Chamber built with the water-tightness of sealed components such as a headlamp, Power connector. A waterproof power connector in the test room can easily supply electricity to the specimens.

• Characteristics of Sand And Dust Test Chamber

1. It can be customized

2. Viewing window with a wiper to view clearly

3. Dust blowing through the special wind tunnel and air outlet

4. Build-in power interface and vacuum system for specimens

5. USB and Ethernet download the test result

6. A safety protection system to protect users

7. The built-in dustproof LED lighting inside the workroom

8. The workroom is equipped with a single-phase 16A internal power interface (positive and negative terminals) to power up the test specimen

• Application of Sand And Dust Test Chamber

IP68 IP66 IP54 Lab Environmental Simulation Sand Dust Test Chambers are used for evaluating the effects of dust-filled environments in order to validate product seal integrity.IP68 IP66 IP54 Lab Environmental Simulation Sand Dust Test Chambers are utilized in Automotive, Electro-technical products, Materiel.,Coatings, Solar Energy.

• Parameter of Sand And Dust Test Chamber

Name

IP68 IP66 IP54 Lab Environmental  Sand Dust Test Chamber

Model

DI-1500

DI-2000

Internal Dimension (mm)

1000*1500*1000

1000*2000*1000

Overall Dimension (mm)

1250*1900*1960

1300*2400*1960

Interior Volume (L)

1500L

200L

Temperature Range

Ambient to +50℃

Humidity Range

<30%RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

70um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Heating Element

Nichrome heater

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Controller

Programmable color LCD touch screen controller

View Window Size(mm)

475*475

Power Supply

380V 50Hz

Standard

IEC 60529, ISO 20653

Observation Window

Interior lighting, double-layer thermostability silicone rubber sealing

• Details of Sand And Dust Test Chamber

Lab Customized Sand And Dust Test Chamber IP68 IP66 IP54 Environmental Simulation 0

1. The vacuum pump is used to evacuate the test sample. There is a vacuum interface in the workroom, which can be directly connected to the sample.



2. The sample shelf is made of stainless steel, its standard load 50 kgs.

Can custom-make special shelf for heavy samples.

Mesh sieve size is 450*450mm.



3.The talcum power amount 2kg-4kg/m3



       45μm talcum powder

n If buy powder with the machine, MOQ is 10kgs, otherwise, it is 500kgs.



4.PID programmable color touch screen controller, network connection computer.

Can edit 120 programs 20 segments.

LIB also can preset the program into the controller based on user testing requirements.

The set system language is English for standard.

• More Function of Sand And Dust Test Chamber



IP68 IP66 IP54 Lab Environmental Simulation Sand Dust Test Chamber with vertical circulating airflow. The bottom of the air duct is connected to the V-shaped hopper interface. The air inlet and outlet of the fan are directly connected to the air duct.

The diffuser opening on the top of the workroom is connected to the workroom to form a vertical dust circulation system. Airflow can smoothly blow dust into the working room, forming a dust blowing circulation system.

Dust can be recycled use.

• FAQ

1. Can we change the color of the equipment?

Our factory has a special spray workshop, you and our sales staff confirm the spray color that you looking for and we will spray it.

2. Can you customize non-standard products?

Yes, LIB completely controls all processes of equipment manufacturing

3.How many days in stock?

All equipment will be debugged 3 days before leaving the factory, so it can be delivered as soon as 5.

4. What are the advantages of your company?

LIB is a private enterprise focusing on the design, production, sales, and after-sales of the test.

Three-year warranty, lifetime after-sale.

Mature and professional sales team and after-sales team, ready to serve global customers

5. Do you have any discount on your products?

Our products are priced uniformly in the global market, and we have a 3% discount right.

Lab Customized Sand And Dust Test Chamber IP68 IP66 IP54 Environmental Simulation 1
