IP66 IP67 Universal Dust Test Chamber For Automotive Earth Leakage Protection
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ISO17025,ROHS |
| Model Number: | DI-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Palpay |
| Supply Ability: | 160 Sets/ Quarter |
|
Detail Information |
|||
| Normal Wire Diameter: | 50um | Normal Width Of A Gap Between Wire: | 75um |
|---|---|---|---|
| Standard: | IEC 60529,ISO 20653 | Fight Time: | 0~99H59M |
| Power Supply: | 380V 50Hz | Temperature Range: | Ambient ~ +50℃ |
| High Light: | sand testing machine,dust testing equipment |
||
Product Description

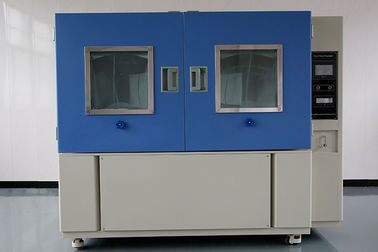

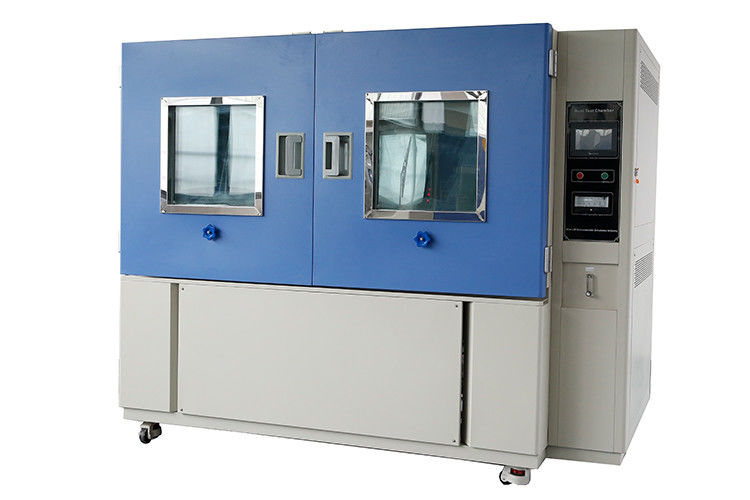

IP66 IP67 Dustproof Sand Dust Universal IP Testing Machine for Automotive
IP66 IP67 Dustproof Sand Dust Universal IP Testing Machine for Automotive is suitable for testing the sealing performance of the shell of the product. It is mainly used for the test of the two grades of IP5X and IP6X specified in the protection standard of the shell. It is mainly to simulate sandstorm weather caused damage to lockset, auto parts, seals, electrical instruments and other products. Through the test, add some protective screening or sand and dust measures in the general equipment installation and application. Improve the product’s ability to resist and protect dust.
1. IEC60529, ISO20653 standard performed
2. Internal illumination in the test room
3. Viewing window with wiper
4. Build-in power interface and vacuum system for specimens
5. USB and Ethernet
6. CE mark
7. Dust blowing through the special wind tunnel and air outlet
8. Multi-language interface
|
Name |
IP66 IP67 Dustproof Sand Dust Universal IP Testing Machine for Automotive |
|||
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1200*1450*1960 |
1250*1900*1960 |
1300*2400*1960 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Vacuum System |
Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
|||
|
Maximum Noise |
65 dBA |
|||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||
|
Door Lock |
Electromagnetic lock |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection |
|||
|
Observation Window |
Interior lighting, double-layer thermostability silicone rubber sealing |
|||
|
Standard configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power Supply |
380V 50Hz |
|||
|

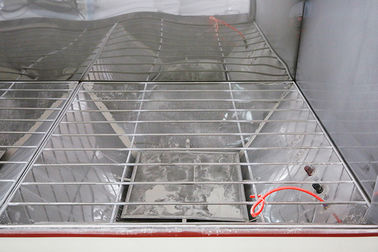

1. Workroom The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance;
2. Viewing window Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage.
3. Vacuum System for Specimen Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.
4. Controller PID programmable color touch screen controller, network connection computer. Can edit 120 programs 20 segments. LIB also can preset the program into the controller based on user testing requirements.
|
1. At first, our test chambers are produced based on 20 years product lifetime.
2. If the customer needs our engineer on-site service, they only need to pay the ticket accommodation to our Engineers, service is for free.
3. If products still can't use after our engineers' repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
1. Seal chamber with waterproof plastic film. Protect chamber from seawater corrosion.
2. Buffer foam is placed in the four corners of the chamber.
3. Standard wood export packaging.
Gross weight: 600kgs~
Package size: 2100*1400*2300 mm
It can be used for Sea, Air, Railway, Truck, and multimodal transport.
Our main products included temperature and humidity test chambers, Corrosion salt chambers, Accelerated weathering chambers, IP dust&rain chambers, Ozone test chamber, Noxious gas SO2 H2S chambers.
