50um Wire Environmental Sand Ip65 Dust Control Equipment

50um Wire Environmental Sand Ip65 Dust Control Equipment

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: IEC60529,Rohs,CE
Model Number: DI-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Temperature Range: Ambient To +50℃ Normal Wire Diameter: 50um
Normal Width Of A Gap Between Wire: 75um Standard: IEC60529,ISO20653
Humidity Range: < 30% RH Other Model: DI-1000,DI-1500.DI-2000
High Light:

Ip65 Dust Control Equipment

,

IEC60529 Dust Control Equipment

,

Dust Proof Ip65 Test Chamber

Product Description

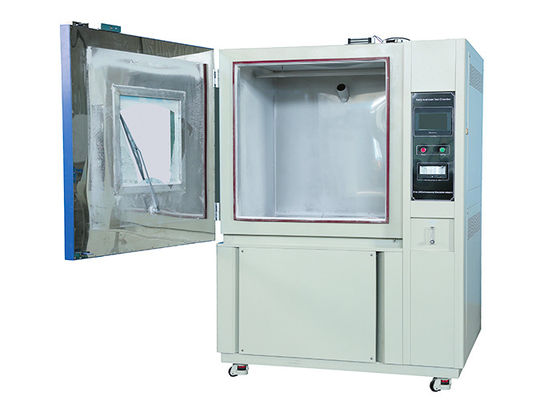

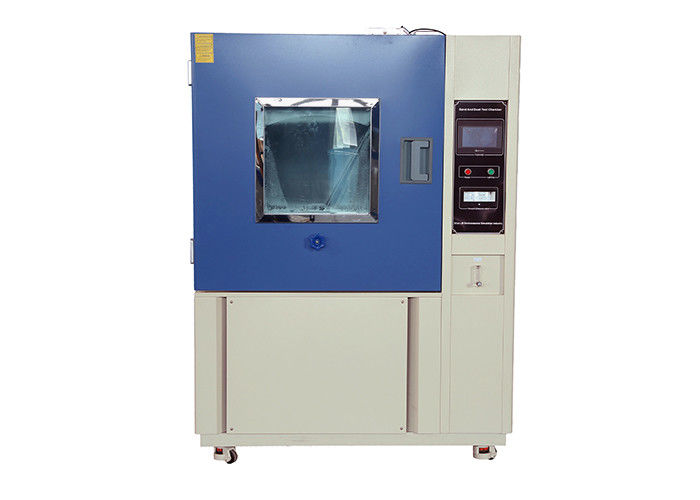

50um Wire Environmental Sand Ip65 Dust Control Equipment

Portable Environmental Sand Testing Lab Dust Protection Proof Ip65 Test Facility

Description of IP65 Test Facility

Portable Environmental Sand Testing Lab Dust Protection Proof Ip65 Test Facility ,household appliances and other products in the storage,transportation and use of sand and dust are offen affected by the environment ,especilly cars electrical appliances by the impact of dust is more significant ,This equipment is used artificial dust environment to test the test of dust resistance of the test equipment test specimens in this environment in the sealing and corrosion resistance



LIB supply standard dust test chamber and mil std 810 dust chamber

Test Standanrds

Dust chamber for ip6x in accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Shell protection class (IP codey" 13.4,13.5 terms and.Fiqure 3 and GB7000.1 "Lamps Part I: General requirements and tests" 9.2.1. 9.2.2 and the requirements of Fiqure 6.



Secifofications of IP65 Test Facility

Name Environmental Sand Testing Lab Dust Protection Proof Ip65 Test Facility
Model DI-800 DI-1000
Internal Dimension (mm) 800*1000*1000 1000*1000*1000
Overall Dimension (mm) 1040*1450*1960 1200*1450*1960
Interior Volume (L) 800 1000
Temperature Range Ambient ~ +50℃
Humidity Range < 30% RH
Normal Wire Diameter 50um
Nominal Width of a Gap Between wires 75um
Specimen Power Outlet Dust-proof socket 16A
Heating Element Nichrome heater
Vacuum System Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Controller Programmable color LCD touch screen controller
  Ethernet connection, PC Link
Door Lock Electromagnetic lock
Maximum Noise 65 dBA
Environmental Conditional 5℃~+35 ℃ ≤85% RH
Standard IEC 60529, ISO 20653





Details of IP65 Test Facility



50um Wire Environmental Sand Ip65 Dust Control Equipment 0 50um Wire Environmental Sand Ip65 Dust Control Equipment 1
Multilingual programmable controller

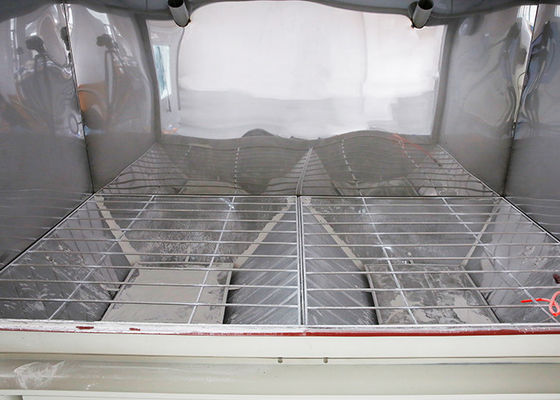

Recyclable Dust Test Area



50um Wire Environmental Sand Ip65 Dust Control Equipment 2 50um Wire Environmental Sand Ip65 Dust Control Equipment 3
Anti-static and High Quality Galvanized Coating



Vacuum Pressure Valve is convenient for monitoring



Usage

Portable Environmental Sand Testing Lab Dust Protection Proof Ip65 Test Facility for low-yoltace electrical appliances, electrical appliances, instruments, meters lamps.

LIB INDUSTRY Service

1.Help set up the IP lab
2.One-stop service
3.3 years warranty, lifetime tracking service
4.Global Agency Service
5.Global Service Center

IP Test Laboratory

IPX1 IPX2 IPX3 IPX4 Waterpfoof Water Spray Test chamber

Ipx7 Ipx8 Test Chamber

IPX9K Climatic Test Chamber
