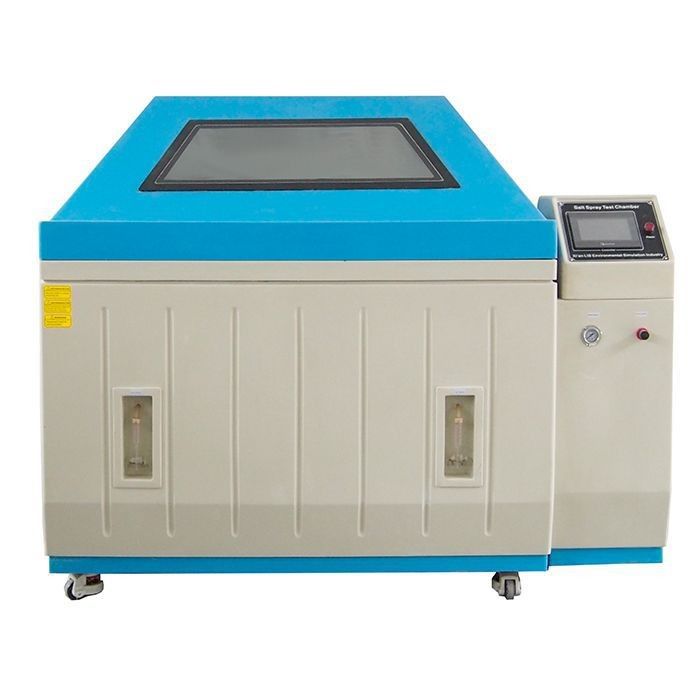

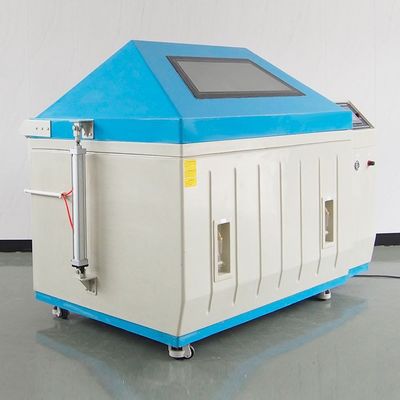

780L ASTM B117 Salt Fog Test Chamber

780L ASTM B117 Salt Fog Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: S-010

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Internal Dimensions: 1000*1300*600 (mm) Temperature: Ambient ~60℃
Usage: Laboratory, University, Research Center Warranty: 36 Months
Name: Salt Fog Spray Test Device Standard: ASTM B-117; ISO9227
High Light:

780L Salt Fog Test Chamber


ASTM B117 Salt Fog Test Chamber


780L q fog salt spray chamber

Product Description

780L ASTM B117 Salt Fog Test Chamber


Salt spray test device conforms to CNS, ASTM, JIS and ISO standards.

Salt spray corrosion test deviceis aimed at testing the corrosion resistance of each material and its surface after coating, electroplating, anodic treatment, rust preventive oil and other anticorrosive treatments.


Products Parameters

Name 780L ASTM B117 Salt Fog Spray Test Device
Model S-010
Internal dimensions  1000*1300*600(mm)
Interior Volume (L) 780
Temperature range Ambient ~60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1~2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Power Supply 220V 50HZ


▶Details Advantage

780L ASTM B117 Salt Fog Test Chamber 0

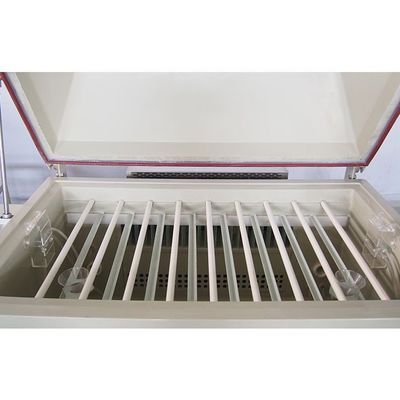

Test Area

The test area has round rods and V-shaped slots, which can be placed according to the test requirements

Spray System

Precision glass nozzle, 4000 hours to ensure no crystallization obstruction.

780L ASTM B117 Salt Fog Test Chamber 1

Control Panel

Programmable control panel, digital display, PID control, high stability platinum temperature probe.

Exhaust System

After the test, the fog of the studio can be quickly removed,


▶Spray Method

A: continuous salt spray test machine

B: programmable salt water spray test machine.


▶Product Characteristics

1. ASTM B117 salt spray test device the whole glass fiber, with advanced three-dimensional reinforcement technology, has strong structure and never deformed.

2. The automatic/manual water adding system has the function of automatically/manually replenishing the water level when the water level is insufficient, and the test is uninterrupted.

3. The control instruments are all on the same board, which is easy to operate and clear at a glance.

4. Attach double overheat protection, warning of insufficient water level to ensure safe use.

5. The laboratory adopts steam direct heating mode, which increases the temperature quickly and reduces standby time.

6. small salt spray test device spray tower is equipped with conical dispersing device, guiding fog, regulating fog quantity and even falling fog.



Q: How to provide after sales service?
A: If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.


Q: Do you have an agent?
A: Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.


Q: Can we come to your factory to study and train?
A: Welcome to our factory for study and training, we provide this service free of charge.


Q: Can you send engineers to our company?
A: Yes, sure. We will communicate in advance to facilitate the bringing of tools and components


780L ASTM B117 Salt Fog Test Chamber 2
