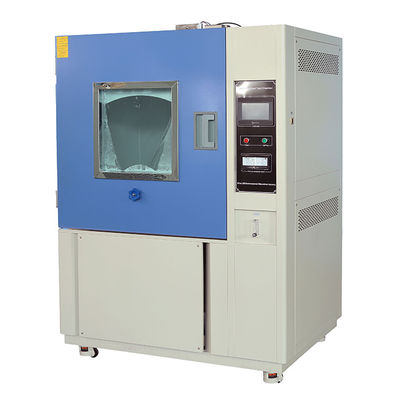

EV ISO 20653 50um Sand And Dust Test Chamber Climate Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | IEC60529,Rohs,CE |
| Model Number: | DI-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2290 ~ USD9800 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Application: | Battery | Normal Wire Diameter: | 50um |
|---|---|---|---|
| Normal Width Of A Gap Between Wire: | 75um | Standard: | IEC60529,ISO20653 |
| Other Model: | DI-1000,DI-1500.DI-2000 | Temperature Range: | Ambient To +50℃ |
| High Light: | 50um Sand And Dust Test Chamber,ISO 20653 Sand And Dust Test Chamber,800l sand and dust chamber |
||
Product Description
Description
EV ISO 20653 50um Climate Battery Sand Dust Test Equipment,The impact of dust on lithium batteries, the advantages of lithium battery dust removal devices. Lithium batteries are an important part of the world's realization of clean energy.
In the manufacturing process of lithium-ion batteries, many things must be strictly controlled, one is dust, the other is metal particles, and the third is moisture. It is important to use good dust removal facilities to control the dust in the lithium battery factory. The purpose of dust removal is to prevent impurities from being included on the welding surface, and also to prevent ionization and arc discharge.
Technical Specification
| Name | EV ISO 20653 50um Climate Battery Sand Dust Test Equipment | |
| Model | DI-800 | DI-1000 |
| Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 |
| Overall Dimension (mm) | 1040*1450*1960 | 1200*1450*1960 |
| Interior Volume (L) | 800 | 1000 |
| Temperature Range | Ambient ~ +50℃ | |
| Humidity Range | < 30% RH | |
| Normal Wire Diameter | 50um | |
| Nominal Width of a Gap Between wires | 75um | |
| Specimen Power Outlet | Dust-proof socket 16A | |
| Heating Element | Nichrome heater | |
| Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |
| Controller | Programmable color LCD touch screen controller | |
| Ethernet connection, PC Link | ||
| Door Lock | Electromagnetic lock | |
| Maximum Noise | 65 dBA | |
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
| Standard | IEC 60529, ISO 20653 | |
 |
Product Performance Battery Sand Test Chamber 1.Comply with battery dust test standards 2. Top-down, top dusting mode and bottom-up, bottom dusting mode 3. Uniform synchronous air hammer vibration dust device 4. Dust automatic dehumidification system |
Easy Operation
EV ISO 20653 50um Climate Battery Sand Dust Test Equipment
1. With a new and modern design and Touch style color LCD screen for operation, the end User is free to set and save their testing program.
2. Customization Available: According to customer’s request, LIB INDUSTRY can build unique products to meet every need.
Application
EV ISO 20653 50um Climate Battery Sand Dust Test Equipment
Dustproof sand test chamber is suitable for electrical and electronic products, automobile and motorcycle parts, seals in the sand environment to prevent sand dust into the seals and shell of the test.
To test the use, storage and transportation performance of electronic electrical products, automobile, motorcycle parts and seals in sand and dust environment.
We support customized dust ingress protection test chamber
Support the establishment of a battery testing laboratory
