800L Sand And Dust Test Chamber IP54 Test Equipment

800L Sand And Dust Test Chamber IP54 Test Equipment

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: IEC60529,Rohs,CE
Model Number: DI-800,R56

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

IP54 Test: IP5X Dust Test, IPX4 Water Test Application: Outdoor Products,Car
Standard: IEC60529,ISO20653 Model: 800L,1000L,Customization
After Sale: 3 Years Warranty Interior Material: SUS304 Stainless Steel
High Light:

800L Sand And Dust Test Chamber


IP54 Sand And Dust Test Chamber


800L IP54 Test Equipment

Product Description

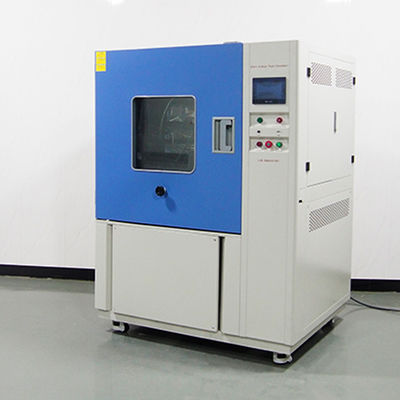

IP54 Test Equipment

IP54 Test Equipment,An IP54 rating means that your product will be protected against contamination from limited amounts of dust and other particles. Additionally, it will be protected from water sprays from all directions.
●IP5X dust test equipment:Protected from limited dust ingress.
●IPX4 rain test equipment:Protected from water spray from any direction.
Technical Specification

800L Sand And Dust Test Chamber IP54 Test Equipment 0

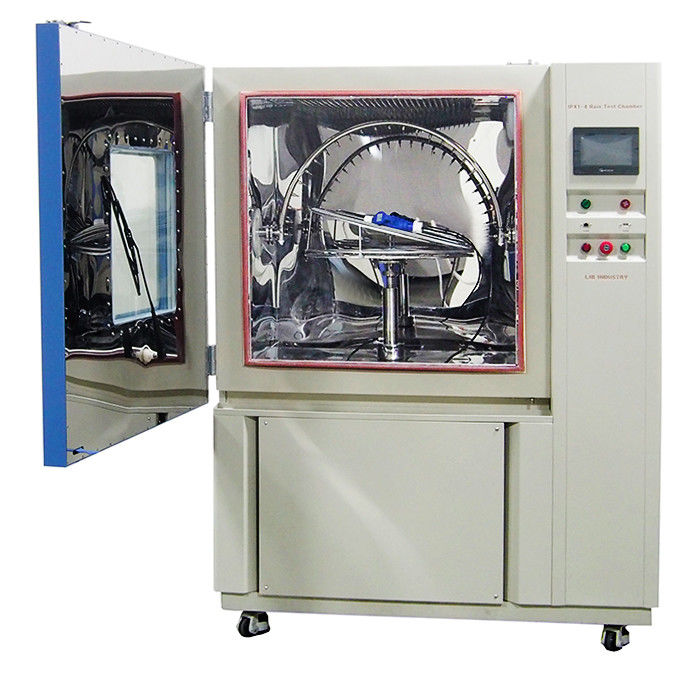

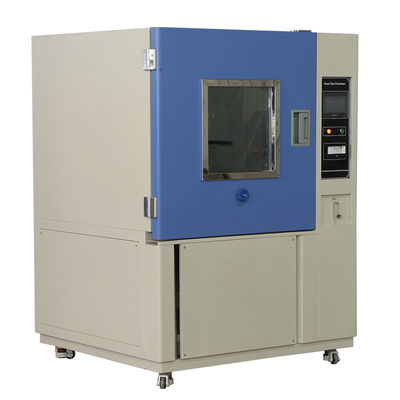

IPX4 rain test equipment

StandardIEC60529(IPX3 Test,IPX4 Test)
Workroom dimension (mm)900*900*900 D*W*H
External dimension (mm)1120*1460*1660 D*W*H
Swing Angle of Oscillating Tube
0 ~ ±180° (Adjustable)
Turntable Rotation Speed1r/min (Adjustable)
Oscillating Tube Radius400mm
Water Pressure ControlFlow meter
Build-in Water Tank(mm)370*375*950
Observation WindowDouble layer insulating glass with wiper


800L Sand And Dust Test Chamber IP54 Test Equipment 1

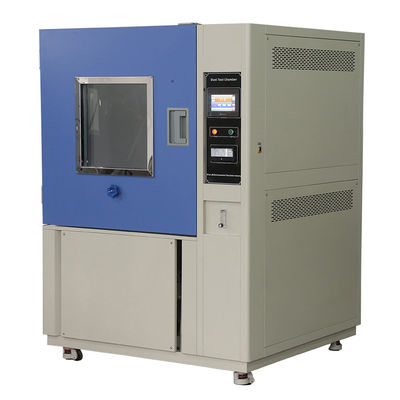

IP5X dust test equipment

StandardIEC60529(IP5x Test)
Internal Dimension (mm)800*1000*1000
Overall Dimension (mm)1040*1450*1960
Temperature RangeAmbient ~ +50℃
Humidity Range< 30% RH
Normal Wire Diameter
Nominal Width of a Gap Between wires75um
Specimen Power OutletDust-proof socket 16A
Vacuum SystemEquipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard ConfigurationSample shelf, dust wiper, talcum powder(5kgs)

LIB provides IP54 test equipment for dust protection testing, rain protection testing, we have standard models and custom models

Viewing Window
Rain and dust test chamber equip double-layer tempered glass, specially designed seal, with good impact resistance and prevention of water leakage.
Equipped with manual water wiper for easy observation samples
Build-in lighting
The built-in waterproof LED lighting inside the workroom makes it clear to observe the test specimen. The light can be turned on and off at the control panel button.
PID programmable color touch screen controller, network connection computer.
Can edit 100 programs 20 segment..
LIB also can preset program into the controller based on user testing requirements.
The set system language is English for standard.
