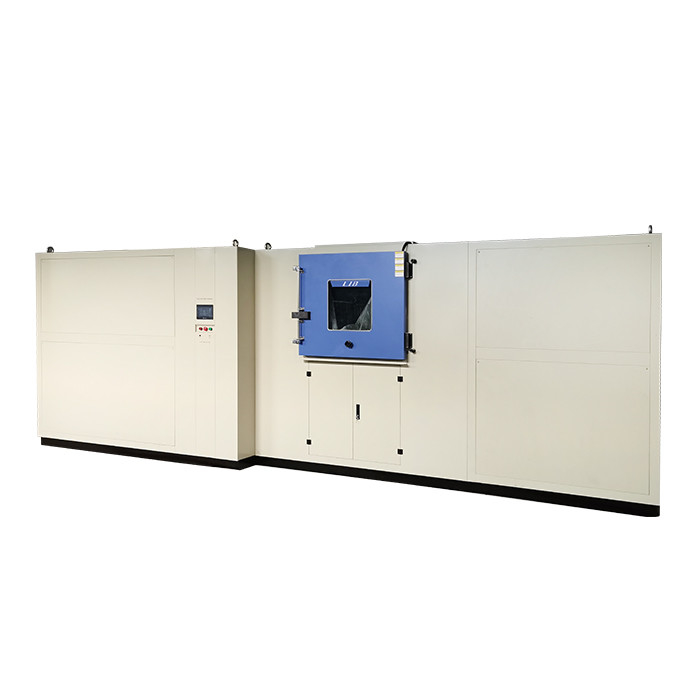

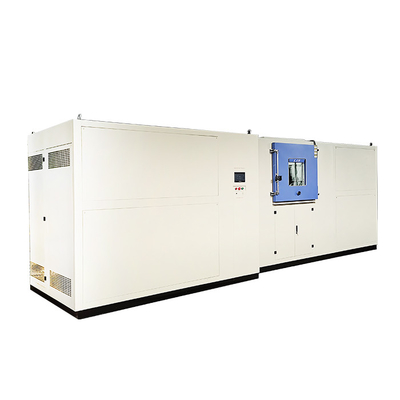

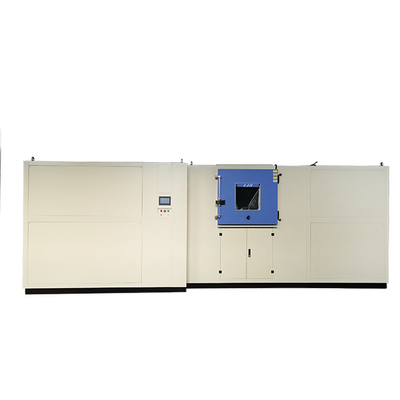

Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810

Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: Rohs,CE
Model Number: DIM-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 120 sets / quarter
Get Best Price Contact Now

Detail Information

Air Velocity: 18.0 -29.0m/s Concentration Of Dust: 10.7±7g/ M³
Dust Particles: < 150μm Concentration Of Sand: 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³
Sand Particles: 149μm - 600μm, 600μm - 850μm
High Light:

Blowing Dynamic Sand Test Chamber

,

150μM Dust Test Chamber

,

Electromagnetic Lock Dust Test Chamber

Product Description

Dynamic Dust Chamber can meet more severe experimental conditions, test the sealing of products, and have higher requirements on the performance and shell protection capabilities of production products, and are more used in testing military products and aerospace components



Technical Specification

Name MIL-STD-810H METHOD 510 Dust And Sand Test Equipment
Model DIM-1000
Internal Dimension 1000*1000*1000mm D*W*H
Overall Dimension 2800*3500*2000mm D*W*H
Interior Volume 1000L
Air velocity 1.5 -8.9m/s
Concentration of dust 10.7±7g/ m³
Dust particles < 150μm
Air velocity 18.0 -29.0m/s
Concentration of sand 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³
Sand particles 149μm - 600μm, 600μm - 850μm
Controller Programmable color LCD touch screen controller
Door Lock Electromagnetic lock
Testing Platform Diameter 600mm
Testing Platform Speed 1-7 r.p.m
Exterior Material A3 Steel Plate with protective coating
Interior Material SUS304 stainless steel
Standard MIL-STD- 810g



Design Detail

Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810 0 Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810 1

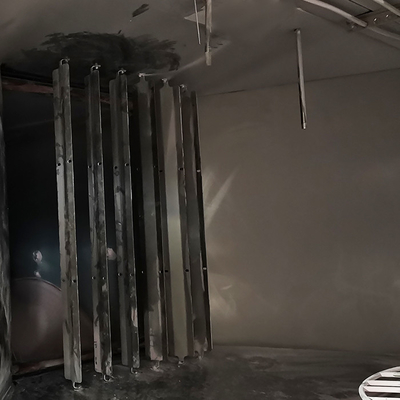

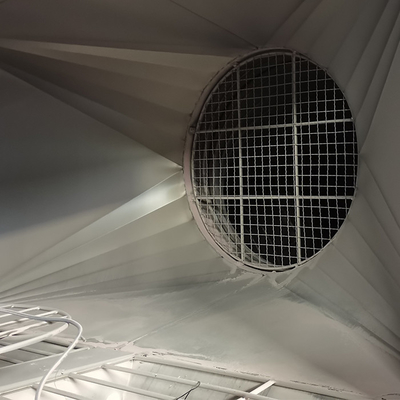

Workroom Large Centrifugal Fan



Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810 2 Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810 3



Standard Configuration


Configuration of Dynamic sand chamber

●Temperature range: 23℃~70℃

●Temperature deviation: ≤±2℃

●Humidity range: <30%RH

●Dust blowing wind speed: 1.5~8.9 m/s

●Sand blowing wind speed: 18.0~29.0 m/s

●Dust concentration: 3.0~17.6 g/m³ (10.7 ± 7 g/m³)

●Test dust: quartz dust

●Dust size: ≤ 149 μm to pass through a sieve with a diameter of 150 μm



Environmental Conditions


Dust blowing test chamber

●The MIL-STD-810 standard covers a wide range of environmental conditions, mainly including: high altitude and low pressure, high and low temperature including temperature shock (including both storage state and working state tests), rain (including wind blowing test and freezing rain test), humidity, etc.
