ISO 9227 Neutral Salt Spray Corrosion Test Chamber With Spray Nozzle 220V

ISO 9227 Neutral Salt Spray Corrosion Test Chamber With Spray Nozzle 220V

Product Details:

Place of Origin: China
Certification: CE,RoHS,ISO17025
Model Number: S-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Internal Dimensions: 640*1000*500 (mm) Temperature: Ambient ~60℃
Usage: Laboratory, University, Research Center Warranty: 36 Months
Product Name: Salt Spray Corrosion Test Chamber Standard: ASTM B-117; ISO9227
High Light:

Neutral Salt Spray Corrosion Test Chamber


220V Salt Fog Cabinet


Spray Nozzle Corrosion Test Chamber

Product Description

ISO 9227 Corrosion Neutral Salt Spray Tester



ISO 9227 Corrosion Neutral Salt Spray Tester is a device that uses salt spray for testing. The salt test can be divided into artificial accelerated simulated salt spray environment test and natural environment exposure test. The corrosion resistance quality of the product was investigated in the salt spray environment.


Products Parameters



ISO 9227 Corrosion Neutral Salt Spray Tester

Model S-250
Internal dimensions  640*1000*500(mm)
Overall dimensions  810*1800*1180(mm)
Temperature range Ambient ~60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1~2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Standard configuration Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder
safety device over-temperature protection, water shortage protection, over current protection, earth leakage protection
Sealing Hydrostatic hood seal
Standard ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Power Supply 220V 50HZ


Design and Construction
ISO 9227 Neutral Salt Spray Corrosion Test Chamber With Spray Nozzle 220V 0

Salt Spray Device
The spray tower is adjustable in height and spray volume to meet different test standards.
Quartz nozzles are easy to clean and resistant to high temperatures, corrosion, and clogging.
Spray pressure is 83KPA according to the standard.



The material is glass fiber reinforced plastics which has strong corrosion resistance, one-time forming, Reinforced design, long service life and high temperature resistance.
The transparent lid of salt spray chamber is made of resin, and is manually opened and closed

ISO 9227 Neutral Salt Spray Corrosion Test Chamber With Spray Nozzle 220V 1

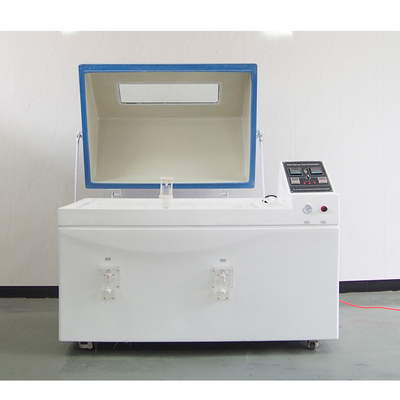

Test Area
Fog chamber is made from glass fiber reinforced plastics,
Material is corrosion resistance, anti-aging, high strength.
Hydrostatic hood seal
Test specimen bracket / holder
Observation Window
The large observation window facilitates the observation of the changes of the measuring pieces.
Corrosion resistant material,



1. Spray method: continuous spray, programmable spray.


2. Salt Spray Tester, Made of glass fiber reinforced plastic, the interior adopts advanced annular belt production three-dimensional reinforcement technology, the structure is strong, never deformed, and it is resistant to acid and alkali, high temperature and never aging. It is suitable for various test specifications such as salt spray and copper acetate.


3. The controllers are all on the same panel, easy to operate and clear at a glance.


4. salt corrosion tester, Adopt double over-temperature protection, warning display when over-temperature, and cut off the heater power to ensure safe use.


5. The automatic/manual water filling system is adopted, which has the function of automatically/manually replenishing the water level when the water level is insufficient. The test is not interrupted, and the water level warning is displayed.
