ASTM B117 Corrosion Test Salt Fog Chamber Glass Fiber Material
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Internal Dimensions: | 640*1000*500 (mm) | Temperature: | Ambient ～60℃ |
|---|---|---|---|
| Usage: | Laboratory, University, Research Center | Warranty: | 36 Months |
| Product Name: | Salt Spray Corrosion Test Chamber | Standard: | ASTM B-117; ISO9227 |
| High Light: | ASTM Salt Fog Chamber,Corrosion Test Salt Fog Chamber,Glass Fiber Salt Spray Test Machine |
||
Product Description

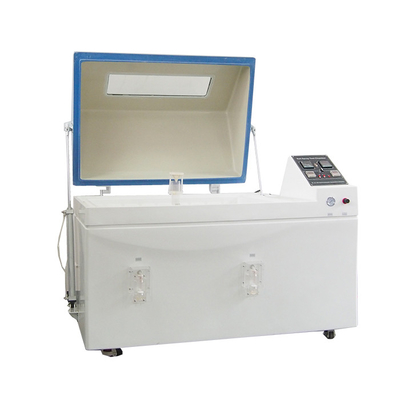

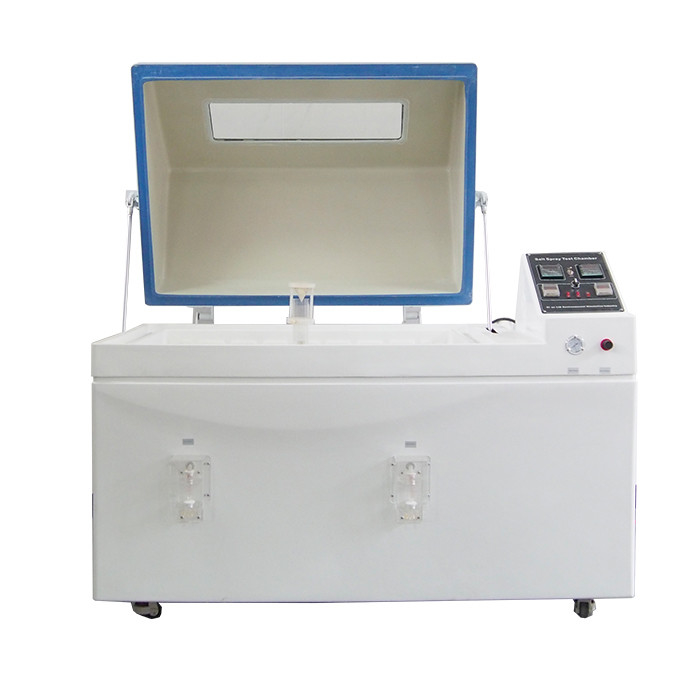

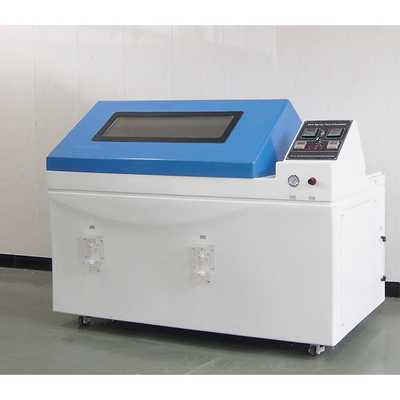

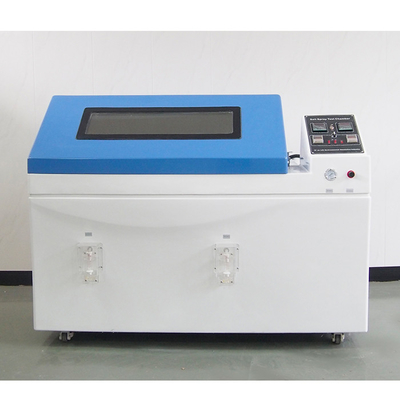

ASTM B117 Corrosion Salt Fog Chamber Manufacturer
Description
The ASTM B117 Corrosion Salt Fog Chamber Manufacturer can assess the ability of fog corrosion monitoring of materials and their protective layers, as well as the process quality comparison of similar protective layers. At the same time, it can assess the ability of salt spray corrosion resistance of some products;
| Name |
ASTM B117 Corrosion Salt Fog Chamber Manufacturer |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
 |
|
|
Salt Spray Device |
Material |
|
|
| Test Area | Observation Window |
Characteristics
●The Salt Fog Chamber Manufacturer can assess the ability of fog corrosion monitoring of materials and their protective layers, as well as the process quality comparison of similar protective layers. At the same time, it can assess the ability of salt spray corrosion resistance of some products;
●The Salt fog chamber is made of glass fiber temperature and corrosion resistant materials to avoid cross corrosion with the sample and misjudgment;
●Salt spray chamber,The top of the lid is 100 degrees, so that the test solution on the top of the spray laboratory will not drip to the sample.
●There are two rows of semicircular holes on both sides of the storage rack, which are used to place the storage rod at an angle of 15 degrees and 30 degrees with the plumb line;
●The slices are placed at an inclination of 15 ~ 30 °, so as to avoid salt water accumulating on the surface of the test object and soaking it in salt water;
Application
Salt cycle chamber is generally used in hardware, electroplating, electronic parts, chemical coatings, baking paint, automobile, screw, spring, organic and inorganic film, anodic treatment, antirust oil and other industries
