ASTM B117 Corrosion Salt Test Chamber Environmental Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Product Name: | Salt Environmental Chamber | Materials: | Glass Fiber |
|---|---|---|---|
| Humidity Range: | 30% ~ 98% RH | Temperature: | +10 ℃ ～ +90 ℃ |
| Usage: | Laboratory, University, Research Center | Standard: | ASTM B-117; ISO9227 |
| High Light: | ASTM B117 Salt Test Chamber,Environmental Salt Test Chamber,Corrosion Salt astm b117 chamber |
||
Product Description

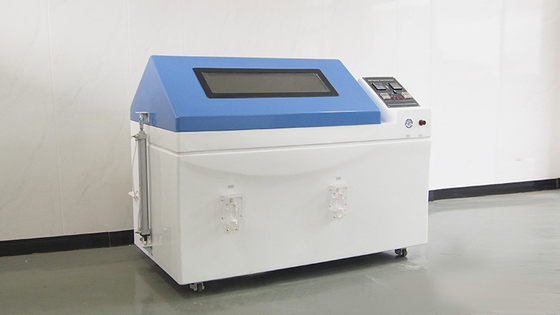

ASTM B117 Corrosion Salt Environmental Chamber
Description
The salt environmental chamber adopts manual intervention to cause the salt spray environment to age the corrosion resistance and quality of the product.
The artificial simulation of the salt spray environment is several times or dozens of times the salt spray content of the natural environment environment, which greatly improves the corrosion rate, and the salt spray test is carried out on the product, and the time to obtain the results is also greatly shortened.
| Name |
ASTM B117 Corrosion Salt Environmental Chamber |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
 |
|
|
| Temperature Sensor | Spray Tower | Brine Mixing System |
Characteristics
●Salt spray chamber,The inner and outer bladder of salt test chamber studio are made of anti-corrosion materials, which have the characteristics of light weight, corrosion resistance, high strength, no leakage, flat surface, smooth and easy to clean.
●The water sealing form keeps the salt spray from overflowing, and the jacket air duct heats up, so that the studio heats up quickly and the temperature distribution is uniform.
●The top cover of the salt spray machine is designed to be 110 ~ 112 ° C top angle, so as to avoid the cold condensation water dripping on the top of the box.
●Specially designed brine mixing system, the brine is more uniform, not agglomerated
|
|
