Laboratory Climatic Salt Spray Corrosion Test Chamber ISO 9227 Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Product Name: | Salt Fog Test Chamber | Materials: | Glass Fiber |
|---|---|---|---|
| Humidity Range: | 30% ~ 98% RH | Temperature: | +10 ℃ ～ +90 ℃ |
| Usage: | Laboratory, University, Research Center | Standard: | ASTM B117; ISO9227 |
| High Light: | Climatic Salt Spray Corrosion Test Chamber,Laboratory Salt Spray Corrosion Test Chamber,ISO 9227 Salt Spray Corrosion Test Chamber |
||
Product Description

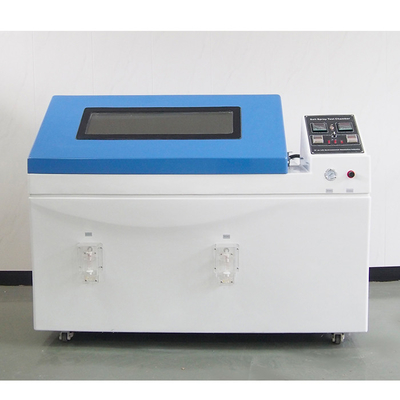

Laboratory ISO 9227 Climatic Salt Fog Test Chamber
Description
Salt fog testing chamber is used to test the corrosion resistance of various materials after their surfaces are treated by electroplating, anodizing, spraying and anti-rust oil anti-corrosion treatment.
Salt fog corrosion test chamber can be used to assess the ability of salt spray corrosion resistance of materials and their protective coatings, as well as the process quality comparison of similar protective coatings, and can also be used to assess the ability of salt spray corrosion resistance of some products.Equipment can reach in the experiment work space from room temperature to 60 ℃ between any one temperature point, and maintain a constant.
| Name | Laboratory ISO 9227 Climatic Salt Fog Test Chamber |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |

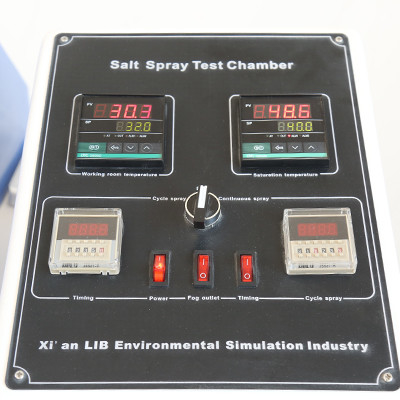

| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |

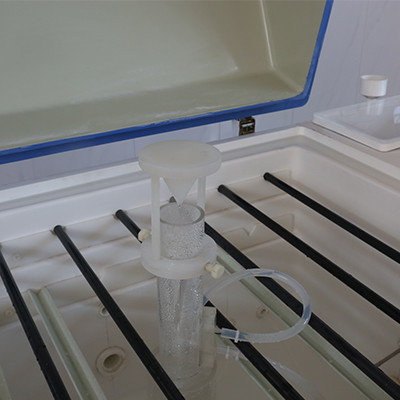

| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
 |
|
|
| Controller | Sample Hoder | Saturated Barrels |
Chamber Making Materials
1. Salt spray test chamber is made of imported glass fiber reinforced hard plastic board, with smooth, clean and smooth surface, aging resistance and corrosion resistance;
Salt spray fog test chamber can better meet the requirement of long-term strong acid and strong salt spray test without any damage.

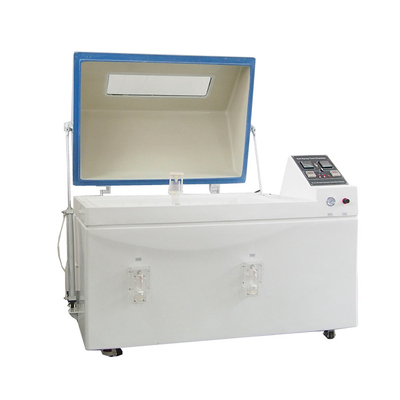

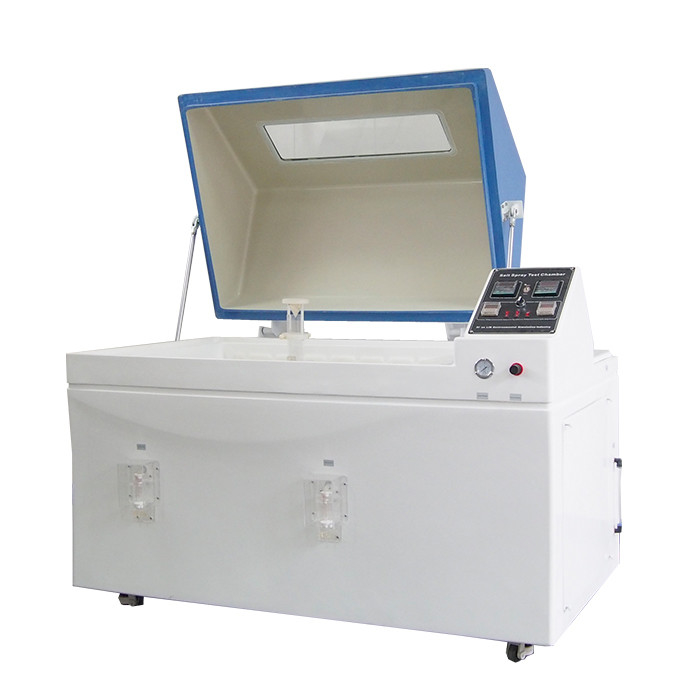

2. The cover of the box is made of fully transparent imported impact resistant plate, which is convenient to observe the test condition of the test sample during the test
|
|
