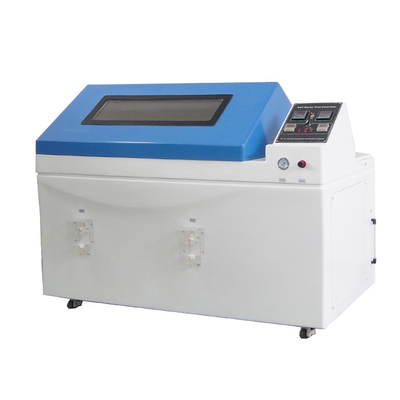

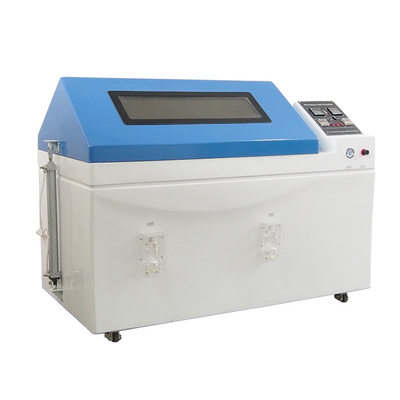

B117 Climatic Salt Spray Test Cabinet For Research Center

B117 Climatic Salt Spray Test Cabinet For Research Center

Product Details:

Place of Origin: China
Brand Name: LIB INDUSTRY
Certification: CE,RoHS,ISO17025
Model Number: S-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Product Name: Salt Spray Testing Cabinet Internal Dimensions: 640*1000*500 (mm)
Temperature: Ambient ~60℃ Usage: Laboratory, University, Research Center
Warranty: 36 Months Standard: ASTM B-117; ISO9227
High Light:

Climatic Salt Spray Test Cabinet

,

B117 Salt Spray Test Cabinet

,

B117 salt fog cabinet

Product Description

B117 Climatic Salt Spray Testing Cabinet

Description


The B117 Climatic Salt Spray Testing Cabinet is based on the evaluation of the corrosion resistance and corrosion resistance of the materials and their protective layers and the comparison of the processing quality of similar safety protection layers. At the same time, it evaluates the corrosion resistance and corrosion resistance of some raw materials.



Products Parameters



Name

B117 Climatic Salt Spray Testing Cabinet

Model S-250
Internal dimensions  640*1000*500(mm)
Overall dimensions  810*1800*1180(mm)
Temperature range Ambient ~60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1~2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Standard configuration Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder
safety device over-temperature protection, water shortage protection, over current protection, earth leakage protection
Sealing Hydrostatic hood seal
Standard ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Power Supply 220V 50HZ



Design and Construction

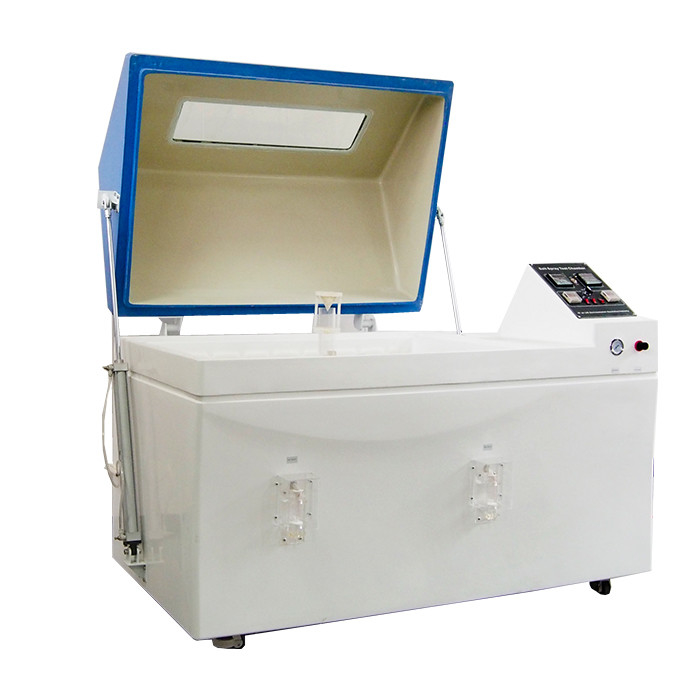

B117 Climatic Salt Spray Test Cabinet For Research Center 0 B117 Climatic Salt Spray Test Cabinet For Research Center 1 B117 Climatic Salt Spray Test Cabinet For Research Center 2
Temperature sensor Spray Tower Test Area





Characteristics


1. Various complexes can be reproduced in one salt spray test chamber, cycling under three or four conditions: spray, dry, 100% humidity and static.



2. It is easy to compile the cycle program or directly run the test program that comes with the salt spray test chamber.



3. The salt spray test cabinet can quickly change the temperature of the chamber due to its unique in-box heater and large-capacity dry-cooling blower.



4. The all-plastic structure salt spray chamber is made of sturdy glass fiber reinforced plastic, which is anti-corrosion and does not cause pollution to the sample. Robust material facilitates accurate temperature control.



5. The spray control test machine has better atomization and dispersion effect than ordinary test machines, and can independently adjust the spray amount and spray distance.



7. Reliability The test equipment is equipped with the following safety sensors, in case of failure, these detectors will send a signal to the controller and stop the work of the corresponding parts.

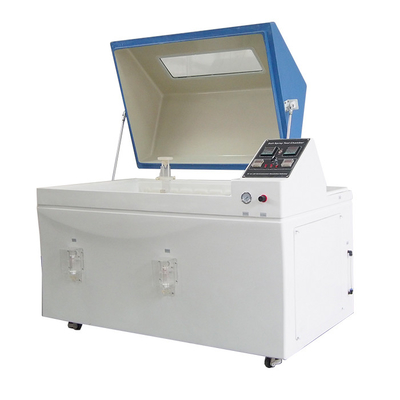

B117 Climatic Salt Spray Test Cabinet For Research Center 3 B117 Climatic Salt Spray Test Cabinet For Research Center 4
