ASTM B117 Salt Fog Test Corrosion Chamber LED Display

ASTM B117 Salt Fog Test Corrosion Chamber LED Display

Product Details:

Place of Origin: China
Certification: CE,RoHS,ISO17025
Model Number: S-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Product Name: ASTM B117 Salt Fog Test Internal Dimensions: 640*1000*500 (mm)
Temperature: Ambient ~60℃ Usage: Laboratory, University, Research Center
Warranty: 36 Months Standard: ASTM B-117; ISO9227
High Light:

Corrosion Salt Fog Test Chamber


LED Display Salt Spray Chamber


ASTM B117 Salt Fog Test Machine

Product Description

ASTM B117 Salt Fog Test Corrosion Chamber


ASTM B117 Salt Fog Test Corrosion Chamber is mainly used for surface treatment of various materials, including coatings, electroplating, inorganic and surface films, and anodizing. After anti-corrosion treatment such as anti-rust oil, test the corrosion resistance of its products.


Products Parameters



ASTM B117 Salt Fog Test Corrosion Chamber

Model S-250
Internal dimensions  640*1000*500(mm)
Overall dimensions  810*1800*1180(mm)
Temperature range Ambient ~60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1~2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Standard configuration Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder
safety device over-temperature protection, water shortage protection, over current protection, earth leakage protection
Sealing Hydrostatic hood seal
Standard ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Power Supply 220V 50HZ


Design and Construction

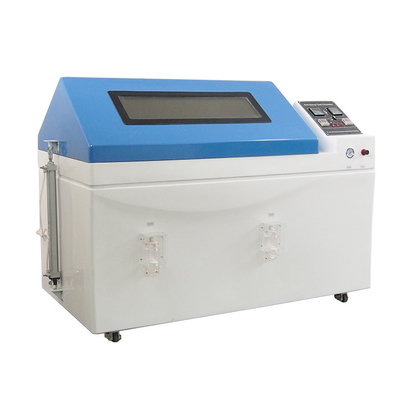

ASTM B117 Salt Fog Test Corrosion Chamber LED Display 0

Salt Spray Device

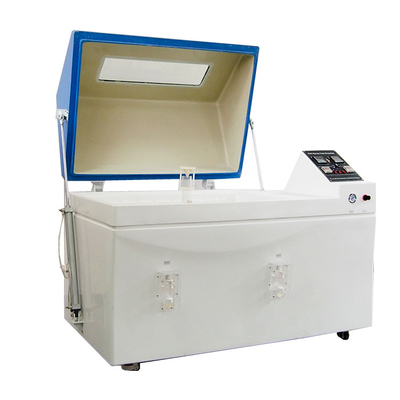

ASTM B117 Salt Fog Test Corrosion Chamber LED Display 1
Test Area Observation Window



1. corrosion test chamber has an automatic/manual water adding system, which can automatically replenish the water level when the water level is insufficient, and the test is not interrupted.


2. The temperature controller uses digital display, and the PID control error is ±01.℃;


3. salt corrosion chamber,Double over-temperature protection, warning of insufficient water level to ensure safe use.


4. The laboratory adopts the direct heating method of steam, the heating speed is fast and uniform, and the standby time is reduced.


5. Salt Fog chamber,The precision glass nozzle is sprayed with adjustable mist, and the conical disperser of the spray tower of the mist volume is evenly scattered and diffused, and naturally falls on the test card, and ensures that no crystalline salt is blocked.


The ASTM B117 cycles include

Step 1: 35°C salt spray


Step 2: Go back to Step 1


Conditions for the salt spray test chamber to be used for ASTM B117 testing:

Salt spray deposition rate measured with a 100mm diameter funnel: 1–2 ml/hour;


Recommended spray pressure: 8psi;


Recommended solution flow: 1100 liters, 0.6 liters/hour; 600 liters, 0.5 liters/hour

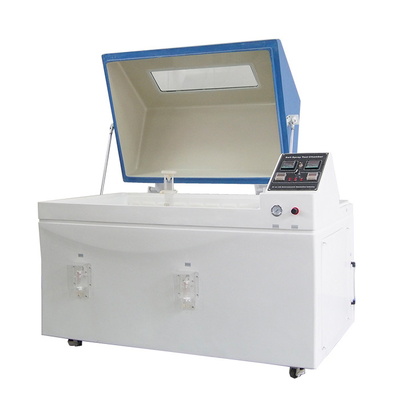

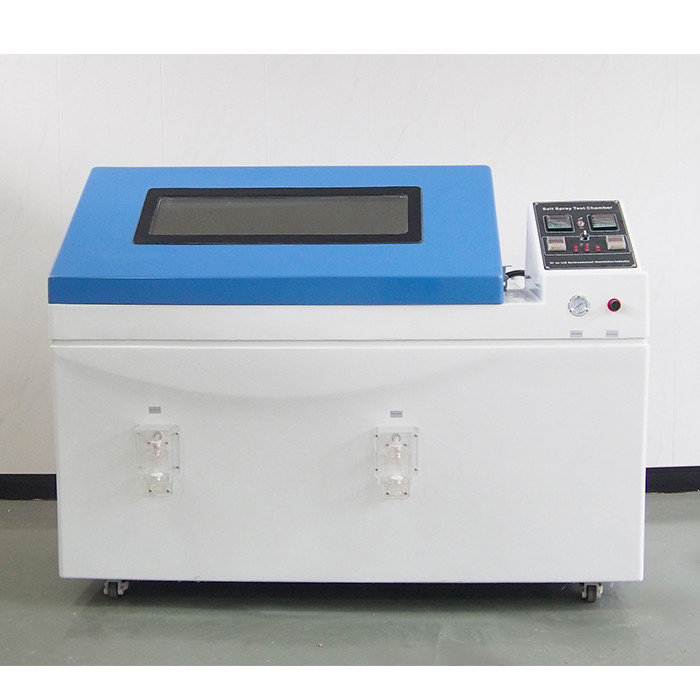

ASTM B117 Salt Fog Test Corrosion Chamber LED Display 2 ASTM B117 Salt Fog Test Corrosion Chamber LED Display 3
