Product Details:

Place of Origin: China
Brand Name: LIB INDUSTRY
Certification: CE,ROHS
Model Number: THV-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 180 Sets/Quarter
Get Best Price Contact Now

Detail Information

Product Name: Vibration Temperature Humidity Chamber Temperature Range: -50℃ ~ +150 ℃
Heating Rate: ± 0.5 ℃ Humidity Range: 30% ~ 98% RH
Dynamic Diameter: ¢240mm Blower: 4Kw Blower, Including Muffler.
High Light:

-50C Vibration Temperature Humidity Chamber

,

98% RH Vibration Temperature Humidity Chamber

,

98% RH -50C constant climate chamber

Product Description

Programmable 98% RH -50℃ Vibration Temperature Humidity Chamber

Description


Programmable 98% RH -50℃ Vibration Temperature Humidity Chamber mainly the synthesis of the test chamber and the vibration test system. During the test, the temperature, humidity, vibration (high or low temperature) and electrical stress are applied to the sample in the same climate test chamber according to the specified period. The "environmental simulation" test of temperature, humidity and vibration is carried out.



Compared with a single environmental factor, it more truly simulates the transportation and actual use environment of the product, and fully considers the requirements of different working conditions in the design. Temperature humidity vibration combined test chamber is an important test link in the process of new product research and development, reliability test, identification test, stress screening test, batch production, etc.



Main Parameter

Name

Programmable 98% RH -50℃ Vibration Temperature Humidity Chamber

Model

THV-1000

Internal Dimension (mm)

1000*1000*1000

Overall Dimension (mm)

1800*4600*2600

Temperature Range

-50℃ ~ +150℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Cooling Rate

5℃ / min

Heating Rate

5℃ / min

Humidity Range 30% ~ 98% RH
Humidity Deviation ± 2.5% RH
Controller

Programmable color LCD touch screen controller

Ethernet connection, PC Link

Dynamic diameter ¢240mm
Blower 4Kw blower, including muffler.
Max load 500kgs

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Refrigerant

R404A, R23

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller,Ethernet connection, PC Link

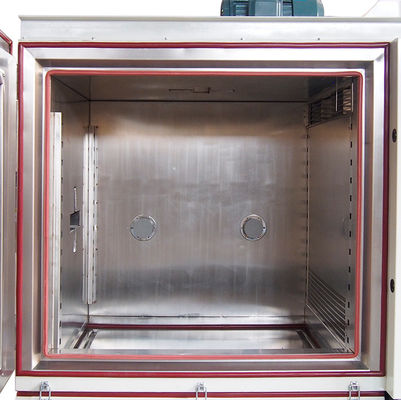

Interior Material

SUS304 stainless steel

Power Supply
380V 50Hz



Main Details

Programmable 98% RH -50℃ Vibration Temperature Humidity Chamber 0

Programmable 98% RH -50℃ Vibration Temperature Humidity Chamber 1

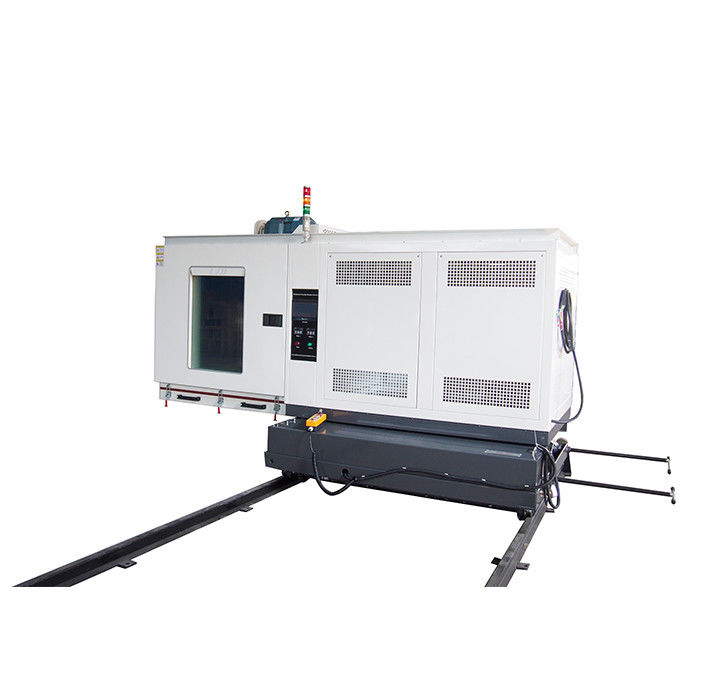

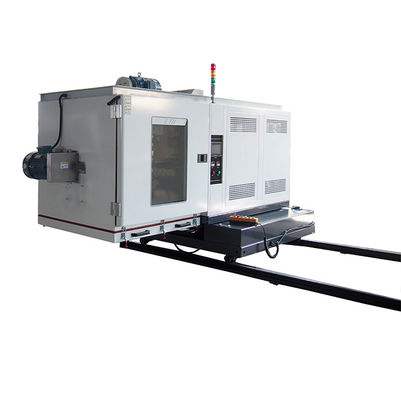

Rail and Lift Support

Combining a rail support for horizontal move and a lift support for vertical move.

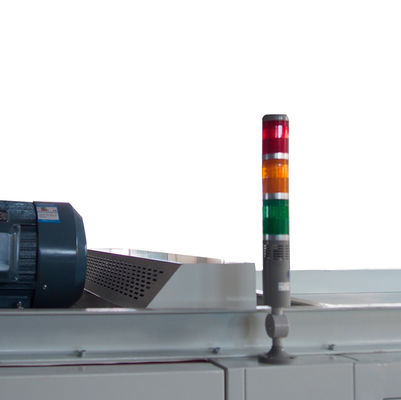

Blower

Constant temperature humidity and vibration chamber equip 4Kw blower, including muffler.





Advantage


1. Temperature humidity vibration chamber equip double refrigerat ion system, superior refrigeration performance,

2. Independent vibration control system, constant temperature and humidity control system

3. Individual test or compound test for high temperature, low temperature, constant temperature and humidity, vibration

4. vibration test chamber with mobile track design, it is easy to operate compound test or individual function test

5. Large-screen color touch control screen, independent control cabinet

6. The design of the detachable bottom plate of the test box can be connected with various electric vibration tables.

7. Multi-layer observation of heat insulation treatment, wide field of vision



Warranty & Service


Temperature humidity vibration chamber and all LIB INDUSTRY test machine support one stop service

1. 3 Years Warranty, Lifelong Follow-up Services

2. Professional After-sales Team

3. If you have any questions during operation,

4. we will supply solution to you with 24 hours.
