Lab 20%RH Humidity Artificial Climate Chamber

Lab 20%RH Humidity Artificial Climate Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TH-500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 210 Sets/Quarter
Get Best Price Contact Now

Detail Information

Product Name: Humidity Artificial Climate Chamber Temperature Range: -70 Degree ~ +150 Degree
Humidity Range: 10%~98% Cooling Rate: 1 ℃ / Min
Heating Rate: 3 ℃ / Min Controller: Programmable Color LCD Touch Screen Controller
High Light:

20%RH Artificial Climate Chamber

,

225L Artificial Climate Chamber

,

20%RH temperature humidity test chamber

Product Description

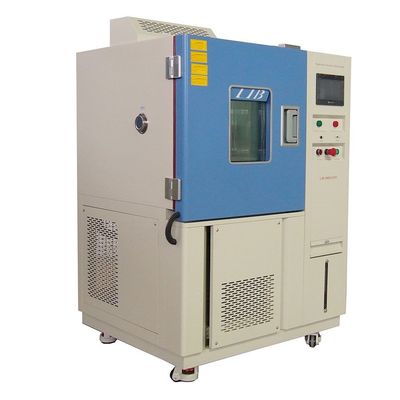

Lab 20%RH Humidity Artificial Climate Chamber

Description of Humidity Artificial Climate Chamber

Humidity artificial climate chamber,It is also known as combined altitude, temperature and humidity chamber which is primarily used in R&D and testing of aerospace components. Customers can select optimal model for their needs based on performance and test area capacity.



A benefit of this TH Series relative Humidity artificial climate chamber is, it comes with an unconditional 3 years warranty.



Main Parameter

Name Lab 20%RH Humidity Artificial Climate Chamber
Model TH-100 TH-500
Internal Dimension (mm) 400*500*500 700*800*900
Overall Dimension (mm) 860*1050*1620 1180*1350*2010
Interior Volume 100L 225L
Heat load 1000W
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range 20% ~ 98% RH
Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Heating Element Nichrome heater
Controller Programmable color LCD touch screen controller


Ethernet connection, PC Link



Main Details of Humidity Artificial Climate Chamber

Lab 20%RH Humidity Artificial Climate Chamber 0

Observation Window

The observation window with conductive film and lamp can clearly observe the changes of the sample



Workroom

The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors

Lab 20%RH Humidity Artificial Climate Chamber 1

Controller System

The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment

Refrigerating System

High temperature aging Chamber,Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat





Features of Humidity Artificial Climate Chamber

1.high Humidity artificial climate chamber comes with support of perforated stainless steel trays

2.Features caster wheel support for optimum mobility

3.Comes with inside chamber fitted with blower to motor that ensures uniform temperatures from the inside

4.Coming with microprocessor based PID controller for precision regulating temperature and humidity conditions

5.Comes with cooling system support in form of hermetically sealed compressor

6.Comes with conditioning chamber support for the laboratory that provides for conditioning of samples prior to testing



FAQ

1. Q: What is your warranty ?

- thermal Humidity artificial climate chamber,36 months product warranty, lifetime for services.



2. Q: How-to vedio provided ?

- Yes, if required, our engineers will record a specialize how-to video for you.



3. Q: 1.Are your company a trading one or a factory?

- Yes, we are a manufactured factory,11 years exporting experience.we also support OEM and ODM.



4. Q: After an order is placed, when to deliver?

- Generally about 10 days, If we have inventory, we can arrange shipment within 3 days.



5. Q: What about the warranty with after - sales services?

- 36 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered

while using our product, handles guest problems and complaints in a professional and timely.
