85C 85%RH Climatic Simulation Constant Humidity Chamber

85C 85%RH Climatic Simulation Constant Humidity Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TH-500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 210 Sets/Quarter
Get Best Price Contact Now

Detail Information

Product Name: Temperature Climatic Simulation Chamber Temperature Range: -70 Degree ~ +150 Degree
Humidity Range: 10%~98% Cooling Rate: 1 ℃ / Min
Heating Rate: 3 ℃ / Min Controller: Programmable Color LCD Touch Screen Controller
High Light:

85C Constant Humidity Chamber

,

85%RH Constant Humidity Chamber

,

85C 85%RH climatic test chamber

Product Description

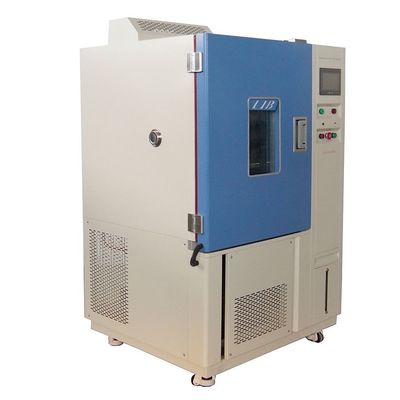

85C 85%RH Climatic Simulation Constant Humidity Chamber

Description of Climatic Simulation Chamber

Temperature climatic simulation chamber , specially designed for that simulation of complex climate conditions with extremes of temperature and humidity, as well as maintaining constant conditions for long time period They operate at a temperature from -70℃ to 200℃



Main Parameter

Name 85℃ 85%RH Temperature Climatic Simulation Chamber
Model TH-100 TH-500
Internal Dimension (mm) 400*500*500 700*800*900
Overall Dimension (mm) 860*1050*1620 1180*1350*2010
Interior Volume 100L 225L
Heat load 1000W
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range 20% ~ 98% RH
Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Heating Element Nichrome heater
Controller Programmable color LCD touch screen controller


Ethernet connection, PC Link



Main Details of Temperature Humidity Climatic Teser

85C 85%RH Climatic Simulation Constant Humidity Chamber 0

Cable Hole
cable port(portΦ50mm),Electrify the sample during the test





Controller System

The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment

85C 85%RH Climatic Simulation Constant Humidity Chamber 1

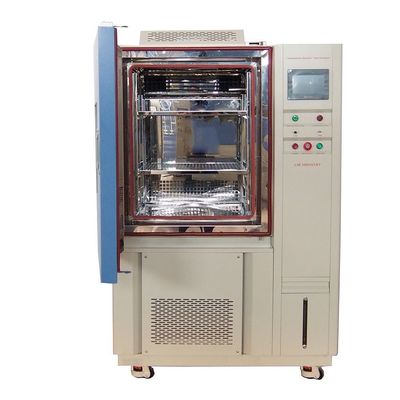

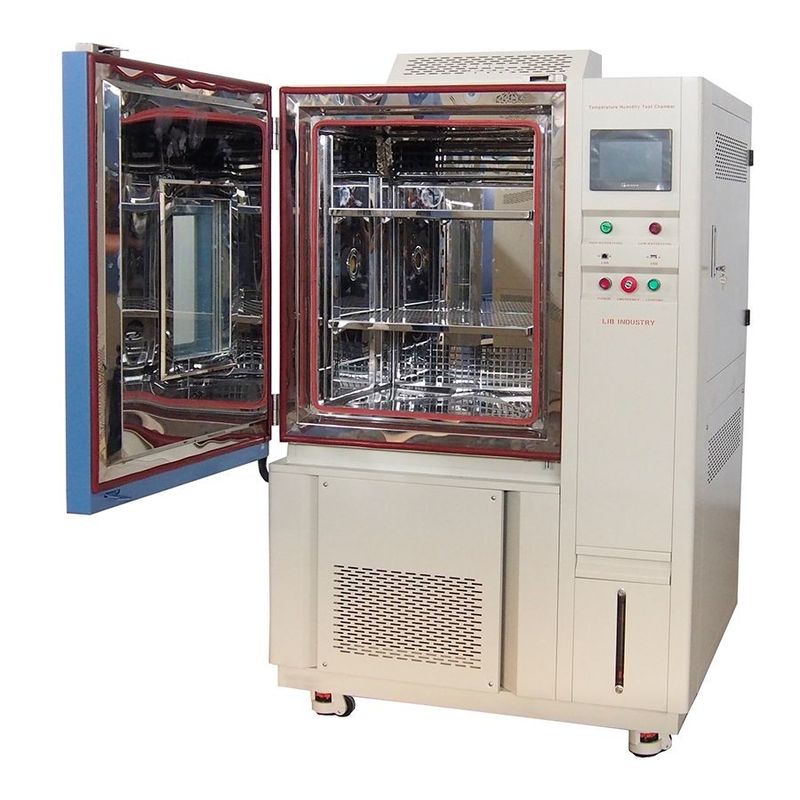

Workroom

The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors

Refrigerating System

High temperature aging Chamber,Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat





Characteristic of Climatic Simulation Chamber

1. Artificial climate test machine,graceful appearance, Anti static galvanized coating

2.Rectangular paned viewing window for the observation of sample under test,with interior lights.

3. Double layer insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R449A.

6. LCD display screen is used for the control unit, capable of displaying set point and actual value at

the same time

7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.

8. Casters are provided for ease of mobility, with strong positioning screws.



Industrial Application

Cold temperature climate equipment used to test various types of materials for their tolerances of heat, cold, dry, humidity.



It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.



Good Packaging

Temperature change test device with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
