Stability Constant Temperature Humidity Chamber / Temperature Controlled Environment Chamber

China Stability Constant Temperature Humidity Chamber / Temperature Controlled Environment Chamber supplier

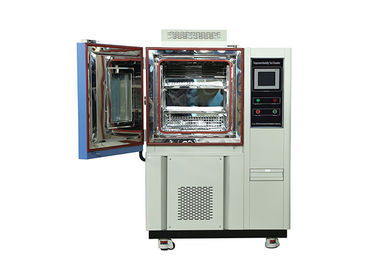

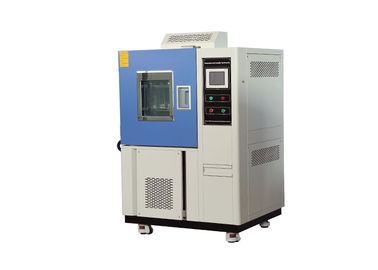

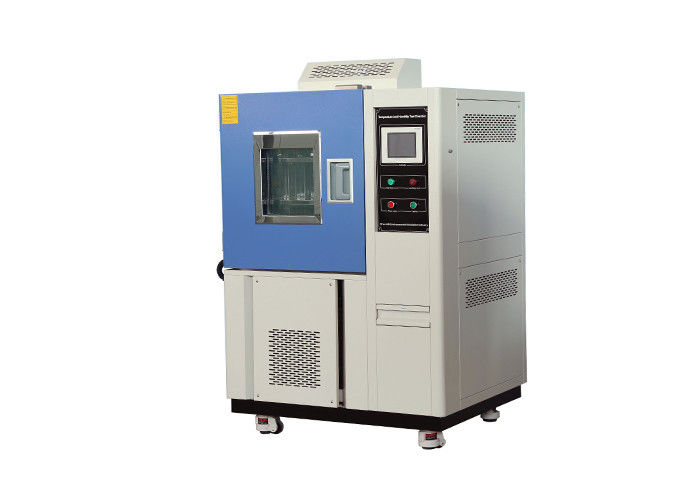

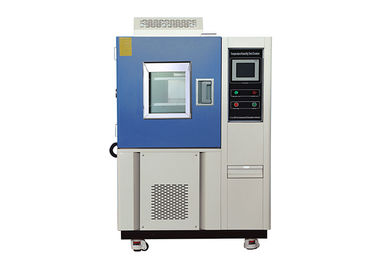

Large Image :  Stability Constant Temperature Humidity Chamber / Temperature Controlled Environment Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,MRoHS,ISO17025,CSA
Model Number: TH-800 Humidity Temperature Chamber

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2100 ~ USD8200 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-18 days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,paypal
Supply Ability: 160 sets / quarter
Contact Now
Detailed Product Description
Overall Dimension (mm): 1280*1550*2110 Timing Function: 0.1~999.9 (S、M、H) Settable
Humidity Range: 20% ~ 98% RH Temperature Range: -20℃ ~+150 ℃
Interior Material: SUS304 Stainless Steel Power Supply: 380V 50HZ
High Light:

constant temperature and humidity machine

,

constant climate chamber

Stability Constant Humidity Temperature Controlled Environment Chamber



Description



Stability Constant Humidity Temperature Controlled Environment Chamber is suitable for the safety performance test of the electronic components to provide reliability test, product selection test, and through this equipment test, can improve product reliability and quality control of products.Temperature Humidity Climatic Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.



Application



Stability Constant Humidity Temperature Controlled Environment Chamber manufacturer is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.



Main Technical Parameter
Model TH-800
Internal dimension (mm) 800*1000*1000

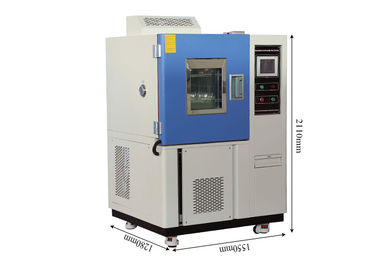

Overall dimension (mm) 1280*1550*2110
Temperature range -20℃ ~+150 ℃
Low type Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Controller Programmable color LCD touch screen controller
  PC Link, R-232 interface
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Heater Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Exterior material Steel Plate with protective coating
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Timing Function 0.1~999.9 (S,M,H) settable
Power Supply 380V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% RH



Standard Features

Temperature control and display unit

Humidity control and display unit

2 pieces of adjustable and removable shelving.

Bottom install 4 castors for ease moving, and with brakes function

Viewing window with interior lighting

Programs reach to 999 groups and 999 sections

Test hole with silicone screw plug

Safety protection system

Can perform long time 85 °C/85 % RH tests

Stability Constant Temperature Humidity Chamber / Temperature Controlled Environment Chamber 0



Test Cycle



Stability Constant Temperature Humidity Chamber / Temperature Controlled Environment Chamber 1

Design and Construction



Test Area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves



Air Circulation

3 Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board. Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.



Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage



Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply

Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network



Safety Protection

Over temperature protection,

Water shortage protection

Humidifier dry combustion protection

Refrigerant high pressure protection

Over current protection

Earth leakage protection





Packing & Shipping



  • Use a polyethylene waterproof membrane,Export Standard Wooden Box
  • Overall dimension (mm):1280*1550*2110
  • Gross Weight:667KG
  • Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.



Our Services



  • 3 Years Warranty, Lifelong Follow-up Services.
  • Training how to install and operate the machine.
  • Training how to maintain the machine.
  • Response within 24 hours once got questions from customers.
  • Send spare parts within 2 days after got notice.
  • Engineers available to service machines overseas to install and commissioning.



Our Company



Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.



Quality Guarantee
Customers from more than 32 countries purchased our climatic test chambers, we deeply realized that quality is the first and most. We control quality from the materials, electronic parts, controller, compressor, solenoid valve, pumps, lamps, accessories and many assembly parts of the products. After test chamber completed, we test its performance, inspect its functionality, go commissioning, work on calibration, and issue report for every steps, to guarantee the quality. We also pay more attention to delivery and shipment. We guarantee delivery on time, and have the obligation to advance delivery.



Third Party Inspection
All our test chambers accept third party inspection, such as SGS, UL, CSA, CE, RoHS…etc. Third party inspects on electrical system, material, accessories and whole machines, and delivery. We closely cooperate with third party to complete the inspection.
