Fast Change LIB Simulation Fast Temperature Test Chamber 220L

Fast Change LIB Simulation Fast Temperature Test Chamber 220L

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TK10-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 210Sets/quarter
Get Best Price Contact Now

Detail Information

Name: Fast Temperature Chamber Humidity Range: 10%~98%
Temperature Range: -70℃ ~+150 ℃ Product Name: Thermal Cycling Environmental Chamber
Heating Rate: 10℃/min (15℃/min) Cooling Rate: 10℃/min (15℃/min)
High Light:

LIB Simulation Temperature Test Chamber

,

220L Temperature Test Chamber

,

LIB Simulation temperature humidity chamber

Product Description

Fast Change LIB Simulation Fast Temperature Chamber



Description


LIB Simulation Fast Temperature Chamber is widely used in automobiles, batteries, electronic materials, military and aerospace fields. Can achieve rapid temperature rise, using nickel-chromium alloy heating tube, the temperature rise rate is 3 ℃ / min, PTR Platinum Resistance PT100Ω/MV A-class and accuracy 0.001℃ temperature sensor.



Technical Specification

Name  LIB Simulation Fast Temperature Chamber
Model TK10-220
Internal Dimension (mm) 500*600*750
Overall Dimension (mm) 960*1150*1860
Temperature Range (℃) -70℃ ~+150 ℃
Cooling Rate 10℃/min (15℃/min)
Heating rate 10℃/min (15℃/min)
Temperature Fluctuations ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Interior Volume 220 liters
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System Mechanical compression refrigeration system
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Power Supply 380V
Maximum Noise 65 dBA



Details

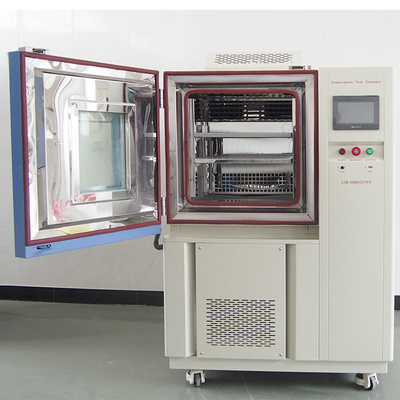

Fast Change LIB Simulation Fast Temperature Test Chamber 220L 0
Cable Hole Viewing Window



Temperature Sensor

PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.



●​Cooling System

After the liquid refrigerant absorbs the heat of the cooled object in the evaporator, it is vaporized into low-temperature and low-pressure steam, sucked by the compressor, compressed into high-pressure high-temperature steam, discharged into the condenser, and radiated to the cooling medium in the condenser, condensed into a high-pressure liquid, throttling through a throttle valve into a low-pressure low-temperature refrigerant, and again entering the evaporator to absorb heat and vaporize, to achieve the purpose of cycle refrigeration.



●​Cable Hole

Astandard test hole, located at the left side of the work room, is provided with a sleeve inside to prevent moisture from entering the insulation layer. Equipped with flange. The standard inner hole diameter is 50mm. Soft silicone plug seal; Metal enclosure closed, beautiful designed.



●​Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life.

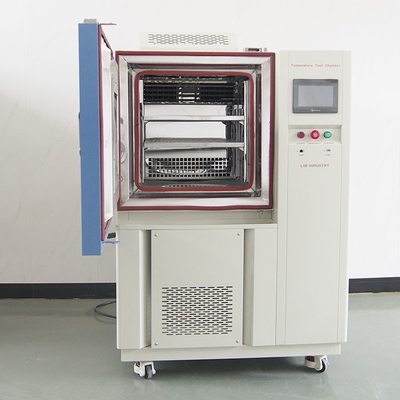

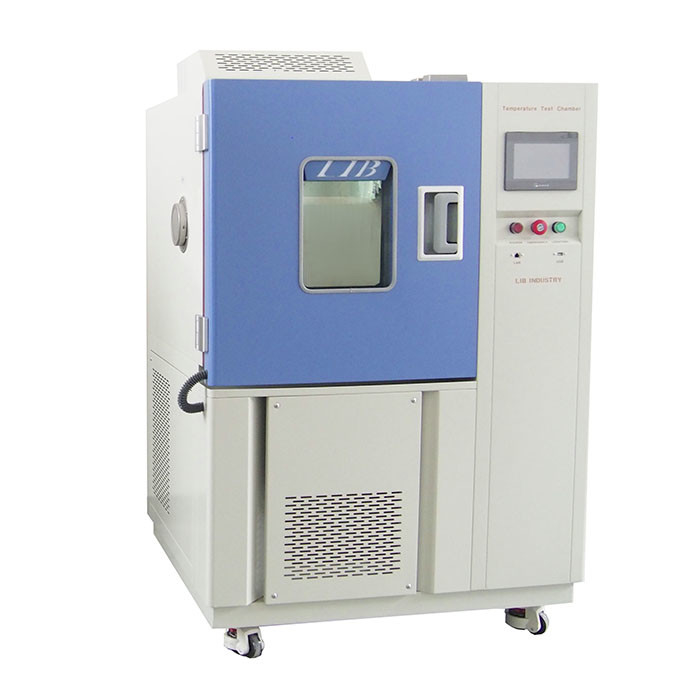

Fast Change LIB Simulation Fast Temperature Test Chamber 220L 1 Fast Change LIB Simulation Fast Temperature Test Chamber 220L 2
