3 ℃ / Min -120 ℃ Simulation Constant Humidity Chamber Cryogenic Recovery Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,ROHS |
| Model Number: | CF-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 180 Sets/Quarter |
|
Detail Information |
|||
| Product Name: | Cryogenic Chamber | Temperature Range: | -120 Degree ~ +150 Degree |
|---|---|---|---|
| Heating Rate: | 3 ℃ / Min | Temperature Fluctuation: | ± 0.5 ℃ |
| Size: | Various Sizes To Choose | Usage: | Laboratories, Factories, University, Research Institutions |
| High Light: | -120C Simulation Constant Humidity Chamber,3C / Min Simulation Constant Humidity Chamber,-120C Cryogenic Recovery Chamber |
||
Product Description
Description
LIB 3 ℃ / min -120 ℃ simulation temperature test cryogenic chamber adopts mechanical compressor refrigeration system, cascade refrigeration, three refrigerants, instead of traditional liquid nitrogen refrigeration, the lowest test is -120℃, the equipment size is 100L, 225L, 500L, 800L, 1000L available select. Can be customized design and production according to customer requirement;
Main Parameter
|
Name |
3 ℃ / min -120 ℃ Simulation Temperature Test Cryogenic Chamber |
||
|
Model |
CF-100 |
CF-225 |
|
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
|
|
Overall Dimension (mm) |
860*1050*1620 |
960*1150*2010 |
|
|
Interior Volume |
100L |
225L |
|
|
Heat load |
1000W |
||
|
Temperature Range |
-120℃ ~ +150℃ |
||
|
Temperature Fluctuation |
± 0.5 ℃ |
||
|
Temperature Deviation |
± 2.0 ℃ |
||
|
Cooling Rate |
1 ℃ / min |
||
|
Heating Rate |
3 ℃ / min |
||
|
Cooling system |
Mechanical compression refrigeration system |
||
|
Refrigerating unit |
French TECUMSEH compressor |
||
|
Refrigerant |
R404A, R23 |
||
|
Heating Element |
Nichrome heater |
||
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection, PC Link |
||
|
Interior Material |
SUS304 stainless steel |
||
| Power Supply |
380V 50Hz
|
||
Main Details
|
|
|
|
Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life. |

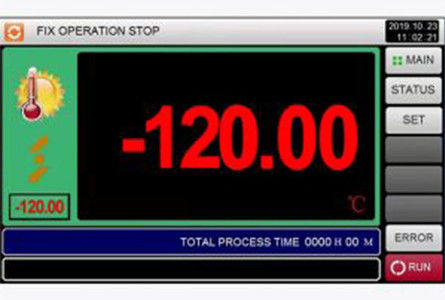

Controller PID programmable color touch screen controller, network connection computer. While can edit 100 programs 100 segment, and the set system language is English for standard. |
Characteristic
●The temperature range is -120℃ ~ +150℃
●Mechanical compression refrigeration cooling system
●Cascade compressor refrigerating unit
●Nichrome heating Element
●PTR Platinum Resistance PT100Ω/MV A-class temperature Sensor
●Simulation environmental chamber equipped with centrifugal wind fan to accelerate gas cycle
●The internal material is 304 stainless steel, mirror surface
●Standard configurations are 1 Cable hole (Φ 50,) with plug, 2 shelves
●Safety protection devices
●Cryogenic chamber has standard and customized
●CE ROHS mark
Application Area
Environmental cryogenic chamber is widely used in automobile, aerospace, aviation, military, daily necessities, raw materials and other industries, for testing the corrosion resistance and service life of the product b by simulating extremely harsh natural environments.
