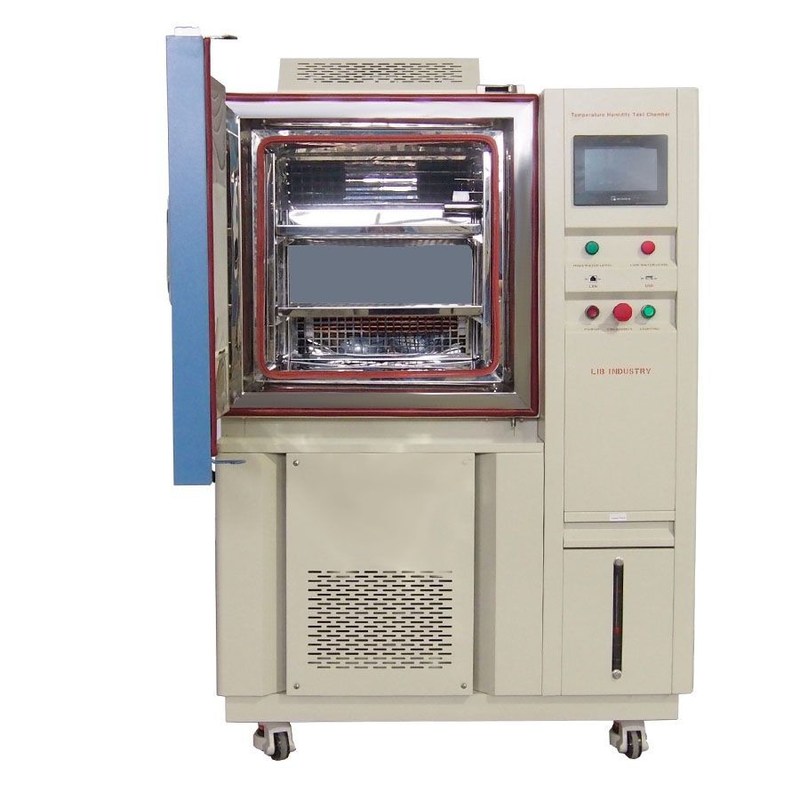

150C 98% RH Constant Temperature And Humidity Chamber

150C 98% RH Constant Temperature And Humidity Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: TH-500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 210 Sets/Quarter
Get Best Price Contact Now

Detail Information

Product Name: Temperature Artificial Climate Chamber Temperature Range: -70 Degree ~ +150 Degree
Humidity Range: 10%~98% Cooling Rate: 1 ℃ / Min
Heating Rate: 3 ℃ / Min Controller: Programmable Color LCD Touch Screen Controller
High Light:

150C Constant Humidity Chamber


150C constant temperature and humidity chamber


98% RH Constant Humidity Chamber

Product Description

Description of Temperature Artificial Climate Chamber

Temperature artificial climate chamber is designed for storage, conditioning, testing, weighing and fabrication in electronic, electrostatic, biomedical, pharmaceutical and other applications. It is widely used for basic thermal cycling test and accelerated stress test.


Environmental artificial climate chamber is accurately measured by a temperature and humidity sensor and controlled by an industrial programmable controller. With high control and test accuracy, it can provide continuous and repeatable humidity measurement.



▶Steady state temperature and temperature/humidity tests.

▶Cycling temperature/humidity tests.

▶Temperature ranges from -86℃ to +150℃

▶Humidity ranges from 10-98%RH.


Main Parameter

Name 150 ℃ 98% RH Temperature Artificial Climate Chamber
Model TH-100 TH-500
Internal Dimension (mm) 400*500*500 700*800*900
Overall Dimension (mm) 860*1050*1620 1180*1350*2010
Interior Volume 100L 225L
Heat load 1000W
Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Humidity Range 20% ~ 98% RH
Humidity Deviation ± 2.5% RH
Cooling Rate 1 ℃ / min
Heating Rate 3 ℃ / min
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Heating Element Nichrome heater
Controller Programmable color LCD touch screen controller

Ethernet connection, PC Link


Main Details of Temperature Artificial Climate Chamber

150C 98% RH Constant Temperature And Humidity Chamber 0

Observation Window

The observation window with conductive film and lamp can clearly observe the changes of the sample


Refrigerating System

High temperature aging Chamber,Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat

150C 98% RH Constant Temperature And Humidity Chamber 1


The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors

Controller System

The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment


Features of Temperature Artificial Climate Chamber

▶Intrinsic safety barriers.

▶Spark resistant chamber interior.

▶Pressure relief blow out port.

▶Product overtemp safeguard.

▶Nitrogen purge system.

▶Interior and exterior EP rated.

▶Temperature limited heaters.

▶Gas monitors.

▶Hepa filtration.


Chamber Structure

Metal plate material:

Controlled temperature artificial climate chamber ,The inner and outside material is SUS mirror surface corrosion resistant plate, inner chamber two sides have sample Rail frame,it has the adjustable hang strip, heat preservation and heat insulation at least 10cm with hardness polyamine foaming.


Test space blowing-in circulate:

temperature test climate chamber,Mature blowing-in system use high temperature resistance multiple-blade

wind wheel which is drived by the motor,the upside blade blow the wind in and the downside return the wind. When the temperature is -86~150℃,the error will be less 2℃
